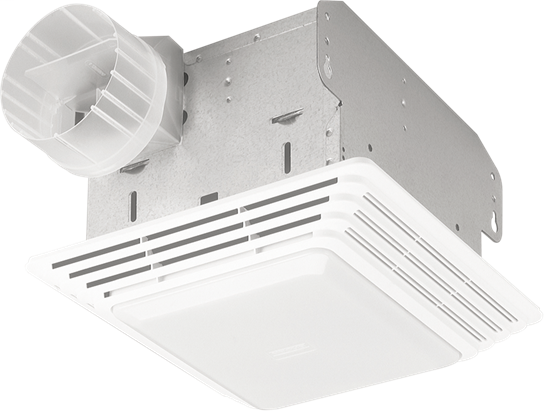

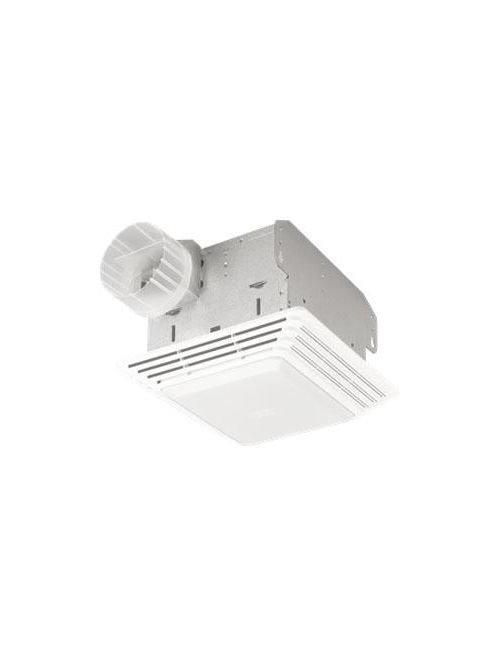

Broan HD50L Bath Fan and Fan Light
Product image thumbnail 0
Product image thumbnail 1
$144.96/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Broan
Mfg Catalog # HD50L
North Coast Part # 265500

Overview

  • 50 CFM 1.5 Sones. (HVI)
  • Totally enclosed motor designed for continuous operation
  • 100-watt lighting capacity (bulb not included)
  • Designer styled white polymeric grille with shatter-resistant light diffusing lens
  • Plug-in receptacles for fan and light
  • Type IC (Insulation Contact)
  • AMCA licensed for both air and sound

Specifications

  • Globe Glass Color: N/A
  • Baths up to () Sq Ft: 45
  • CFM @ 0.125": N/A
  • CFM @ 0.25": 38
  • Sones: 1.5
  • Product Weight: 7 lbs
  • Wall Installation: No
  • CSA: No
  • Housing Width: 8-1/4"
  • Lighting Type: Incandescent
  • Rated Amps: 1.2
  • Grille Width: 11-1/8"
  • Housing Length: 8"
  • Material: Polymeric
  • HVI Certified: Yes
  • Motor engineered for continuous operation: Yes
  • Duct Size: 4"
  • Light Bulbs Included: No
  • Heater wattage: N/A
  • Housing Dimension LxWxH: 8" x 8-1/4" x 5-3/4"
  • Color: White
  • ENERGY STARĀ® qualified: No
  • Housing Height: 5-3/4"
  • Humidity Sensing: No
  • Minimum construction space required: 2x6
  • Nightlight: No
  • Rated Sones - Vertical: N/A
  • cUL Listed: No
  • Watts @ 0.25": 25.1
  • Grille Finish: White Polymeric
  • Light Bulb Wattage: 100 Watts
  • Warranty: 1 Year
  • Ceiling Installation: Yes
  • Grille Length: 10-5/8"
  • Watts @ 0.1": 27
  • CFM @ 0.10": 50
  • Light Bulb Quantity: 1
  • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
  • Rated Watts: 27
  • Project Pack: No
  • Duct Direction: Horizontal

Video Links

Resources

Overview

UPC 02671505284
GTiN 00026715052844
Length 8 in
Finish White Polymeric
Warranty Length 1 yr
Width 8-1/4 in
Color White
Material Polymeric
Height 5-3/4 in
Weight 7 lb
Wattage 100 Watt
Family Brand Name Broan
Sones 1.5 Sone
Energy Saver No
Amperage 1.2 Amp
Grille Width 11-1/8 in
Duct Size 4 in
Grille Length 10-5/8 in
