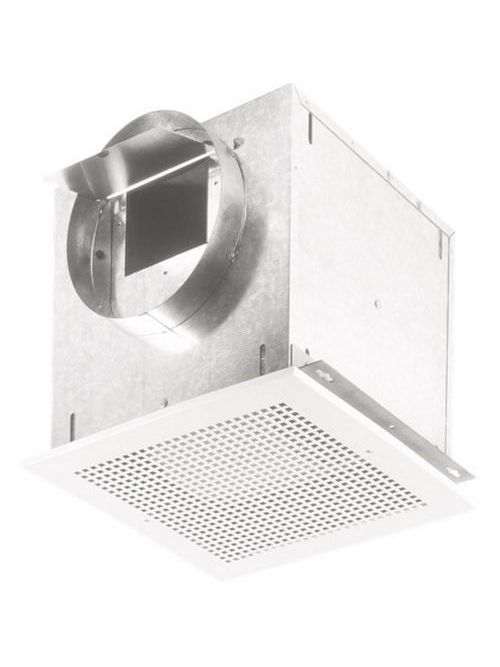

BROAN L300KMG Ventilator,Broan,LOSO
Product image thumbnail 0
Product image thumbnail 1
$370.32/ea
In Stock | 1 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Broan
Mfg Catalog # L300KMG
North Coast Part # 266000

Features

  • 8" round metal duct connector
  • Single, impact-resistant centrifugal blower wheel (Model L300KMG has a metal wheel)
  • 20 gauge galvanized steel housing
  • Duct horizontally, vertically, or in-line with a separate adapter
  • Models L200L, L250L and L300L are UL Listed for use over bathtubs or showers when connected to a GFCI branch circuit
  • Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)

Specifications

  • CFM: 277
  • Recommended Room Size (Sq. Ft.): N/A
  • Sones: 3.1
  • Room Side Installation: No
  • Duct Diameter: 8"
  • Housing Height: 11-3/4"
  • Housing Length: 12-1/4"
  • Housing Width: 12-1/4"
  • Grille Length: 14"
  • Rated Amps: 2.6
  • Watts: 212
  • Warranty: 1 year limited
  • Nightlight: No
  • Grille Width: 14"
  • Motor Engineered for Continuous Operation: Yes
  • Radiation Damper Available: Yes
  • Voltage: 120
  • UL Listed: No

Overview

UPC 02671512519
GTiN 00026715125197
Type High Capacity Fan
Applications For Conference And Public Restrooms
Family Brand Name Broan-Nutone
Grille Material Metal
Sub Brand Losone Select
Warranty Length 1 yr
Voltage 120 Volt
Standard AMCA Certified,CUL Listed
Wattage 212 Watt
Amperage 2.6 Amp
Grille Width 14 in
Duct Size 8 in
Grille Length 14 in
Airflow Rate 277 CFM
Housing Height 11-3/4 in
Housing Width 12-1/4 in
