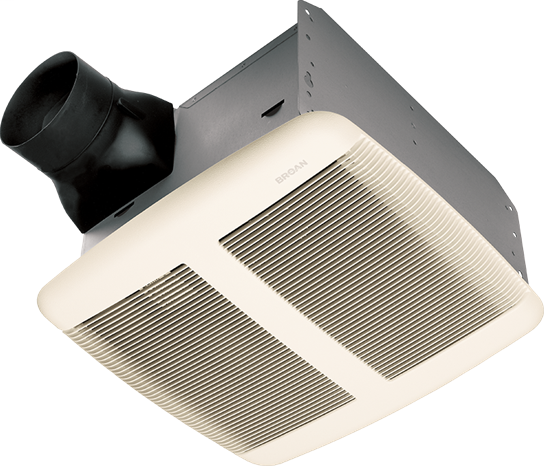

Broan QTRE080 0.3 Amp 80 CFM 0.8 Sones 13 x 14 Inch Grille 26 Gauge Galvanized Steel Ventilation Fan
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$228.07/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Broan
Mfg Catalog # QTRE080
North Coast Part # 14465

Overview

  • Nearly silent operation 0.8 Sones
  • 80 CFM
  • 4" ducting
  • ENERGY STAR Qualified
  • Motor engineered for continuous operation
  • UL Listed for use over tub/shower with GFCI circuit
  • Hanger bars for Easy, Fast and Universal installation in all types of construction
  • Available in Project Packs

Specifications

  • HVI Certified: Yes
  • Grille Width: 14"
  • Globe Glass Color: N/A
  • Rated Watts: 28.4
  • Heater wattage: N/A
  • Rated Sones - Vertical: N/A
  • Housing Dimension LxWxH: 10-1/2" x 11-3/8" x 7-5/8"
  • Nightlight: No
  • cUL Listed: No
  • Housing Length: 10-1/2"
  • Light Bulb Quantity: 0
  • Watts @ 0.1": 28.4
  • Grille Length: 13"
  • Minimum construction space required: 2x8
  • Duct Direction: Horizontal
  • Humidity Sensing: No
  • Project Pack: No
  • Light Bulb Wattage: N/A
  • Lighting Type: No Light
  • Watts @ 0.25": 28.1
  • Housing Height: 7-5/8"
  • Housing Width: 11-3/8"
  • Motor engineered for continuous operation: Yes
  • CFM @ 0.10": 80
  • Wall Installation: No
  • Duct Size: 4"
  • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
  • CSA: No
  • CFM @ 0.125": N/A
  • Light Bulbs Included: No
  • Material: Polymeric
  • Grille Finish: White Polymeric
  • Sones: 0.8
  • Warranty: 3 Years
  • Baths up to () Sq Ft: 75
  • Product Weight: 12.4 lbs
  • CFM @ 0.25": 55
  • Color: White
  • Ceiling Installation: Yes
  • Rated Amps: 0.3
  • ENERGY STARĀ® qualified: Yes

Video Links

Resources

Overview

UPC 02671516381
GTiN 00026715163816
Length 10-1/2 in
Finish White Polymeric
Warranty Length 3 yr
Width 11-3/8 in
Color White
Type QTRE Series Ceiling Fan
Material Polymeric
Applications For Bathrooms Up To 75 SQ-FT
Height 7-5/8 in
Weight 12.4 lb
Standard Energy Star Certified,HVI 2100 Certified,UL Listed For Use Over Bathtubs And Showers When Connected To A GFCI Protected Branch Circuit (Ceiling Mount Only)
Wattage 28.4 Watt
Family Brand Name Broan-Nutone
Sones 0.8 Sone
Energy Saver Yes
Amperage 0.3 Amp
Grille Width 14 in
Duct Size 4 in
Grille Length 13 in
Grille Material Polymeric
Sub Brand Portable Pilot
