Broan QTRE110F 1-Pack Project Finish Kit for Model 110 CFM Fan
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$178.01/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Broan
Mfg Catalog # QTRE110F
North Coast Part # 922

Overview

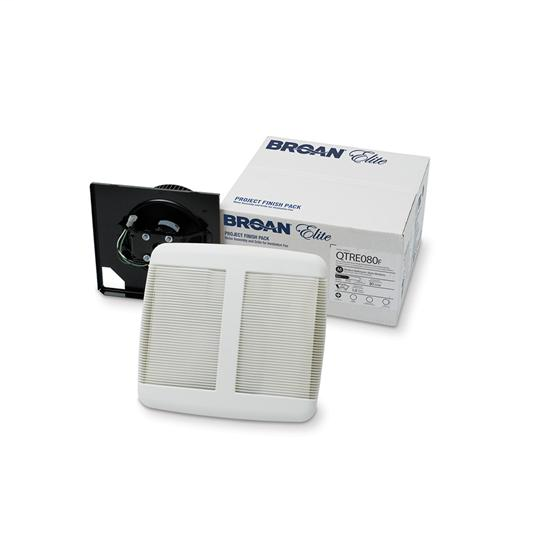

To simplify installation, Project Packs are available with either four fan or fan/light housings only. When drywall work and painting is complete, the fan components needed to finish the job are available in single packs under separate model numbers. These finish kits include the motor plate, motor, wheel and grille. See the matrix below for Project Pack order information.

Model QTXR000HF with Model QTRE110F is ENERGY STAR Qualified.

Specifications

  • Grille Finish: White Polymeric
  • Light Bulb Quantity: 0
  • Ceiling Installation: Yes
  • CSA: No
  • CFM @ 0.25": 90
  • Housing Dimension LxWxH: N/A
  • Housing Height: N/A
  • Humidity Sensing: No
  • Product Weight: 11.8 lbs
  • Sones: 1.3
  • Grille Width: 14"
  • cUL Listed: No
  • ENERGY STARĀ® qualified: Yes
  • Motor engineered for continuous operation: Yes
  • Nightlight: No
  • UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
  • Watts @ 0.25": 36.2
  • Light Bulbs Included: No
  • Material: Polymeric
  • Watts @ 0.1": 36.3
  • Grille Length: 13"
  • Heater wattage: N/A
  • Housing Width: N/A
  • Housing Length: N/A
  • Wall Installation: No
  • Light Bulb Wattage: N/A
  • Minimum construction space required: 2x8
  • Warranty: 3 Years
  • Color: White
  • Duct Size: 4"
  • Globe Glass Color: N/A
  • Rated Amps: 0.3
  • Lighting Type: No Light
  • Project Pack: Yes
  • Rated Watts: 36.3
  • CFM @ 0.10": 110
  • CFM @ 0.125": N/A
  • Duct Direction: Horizontal
  • Rated Sones - Vertical: N/A
  • Baths up to () Sq Ft: 100
  • HVI Certified: Yes

Resources

Overview

GTiN 00026715164134
Finish White Polymeric
Warranty Length 3 yr
Color White
Material Polymeric
Weight 11.8 lb
Wattage 36.3 Watt
Family Brand Name Broan
Sones 1.3 Sone
Energy Saver Yes
Amperage 0.3 Amp
Grille Width 14 in
Duct Size 4 in
Grille Length 13 in
Product UPC 02671516413
