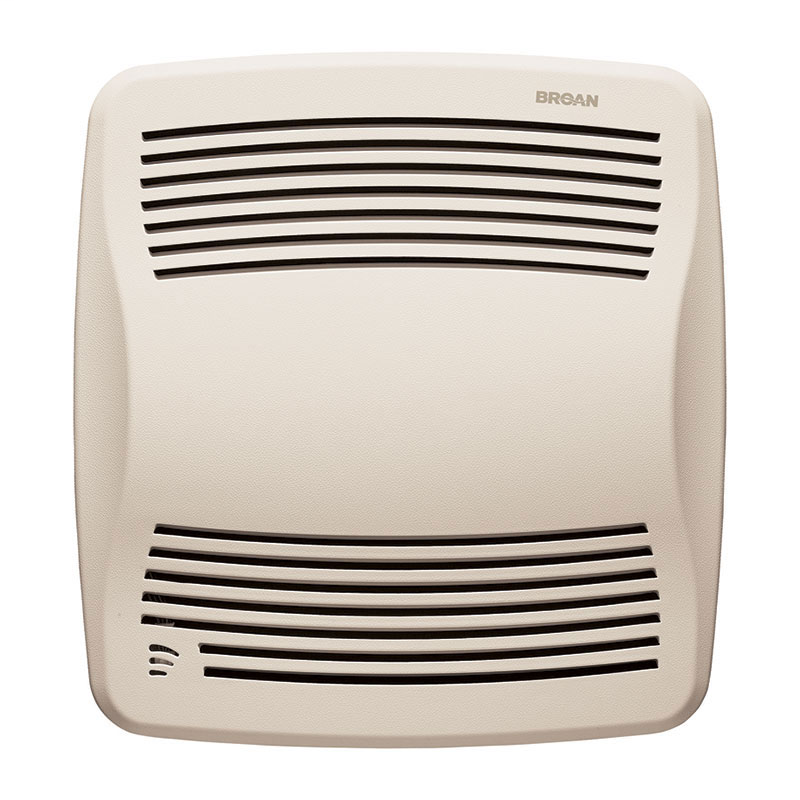

Broan QTXE110S 0.3 Amp 100 CFM 0.7 Sones 12-7/8 x 13-3/4 Inch Grille Ventilation Fan
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Broan
Mfg Catalog # QTXE110S
North Coast Part # 345032


  • 0.7 sones
  • 110 CFM
  • Sensaire® technology detects the rapid rise in humidity over time
  • Auto shut-off time is adjustable from 5 to 60 minutes
  • Helps prevent lingering, excessive humidity which can cause mold
  • Humidity is sensed at the ceiling where it is most prevalent
  • Hanger bars for Easy, Fast and Universal installation in all types of construction
  • UL Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit
  • 6" ducting for superior performance
  • ENERGY STAR® Certified
  • Can be used to comply with ASHRAE 62.2 and CALGreen


  • CFM: 110
  • Recommended Room Size (Sq. Ft.): 105
  • Sones: 0.7
  • Room Side Installation: No
  • Duct Diameter: 6"
  • Housing Height: 7-5/8"
  • Housing Length: 10-1/2"
  • Housing Width: 11-3/8"
  • Grille Length: 12-7/8"
  • Rated Amps: 0.3
  • Watts: 31.4
  • ENERGY STAR® certified product: Yes
  • Warranty: 3 year limited
  • Nightlight: No
  • Grille Width: 13-3/4"
  • Minimum Construction Space Required: 2" x 8"
  • Motor Engineered for Continuous Operation: Yes
  • Radiation Damper Available: No
  • Voltage: 120
  • UL Listed: Yes


UPC 02671516415
Item Long Description Broan Sensaire technology offers a hands-free solution to fighting excess humidity and possible mold problems. It detects rapid increases in moisture levels at the ceiling, where steam and humidity naturally rise, and automatically turns the fan on. With fans this quiet, we included automatic shutoff to save worry and money.  Broan Sensaire technology is a perfect solution for high traffic bathrooms, the kids bathroom, or anyone who leaves the bath before humidity is properly vented.
GTiN 00026715164158
Warranty Length 3 yr
Voltage 120 Volt
Type Automatic
Applications For use Over Bathtubs and Showers When Connected to a GFCI Protected Branch Circuit (Ceiling Mount Only)
Standard Energy Star Certified,HVI 2100 Certified,UL Listed For Use Over Bathtubs And Showers When Connected To A GFCI Protected Branch Circuit (Ceiling Mount Only)
Wattage 31.4 Watt
Family Brand Name Broan-Nutone
Sones 0.7 Sone
Amperage 0.3 Amp
Grille Width 13-3/4 in
Duct Size 6 in
Grille Length 12-7/8 in
Airflow Rate 110 CFM
Housing Height 7-5/8 in
Housing Width 11-3/8 in
Grille Material Polymeric
Color White Grille
Mounting Type Ceiling
Housing Length 10-1/2 in
Used With Bathtubs and Showers When Connected to a GFCI Protected Branch Circuit
