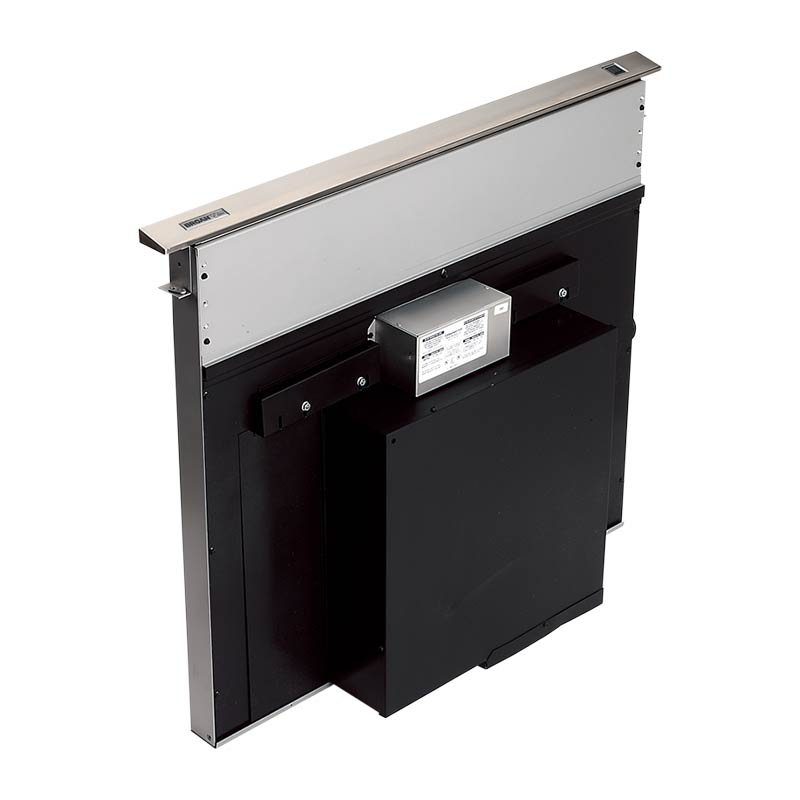

BROAN RMDD3004 Downdraft with Inter
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Broan
Mfg Catalog # RMDD3004
North Coast Part # 271507

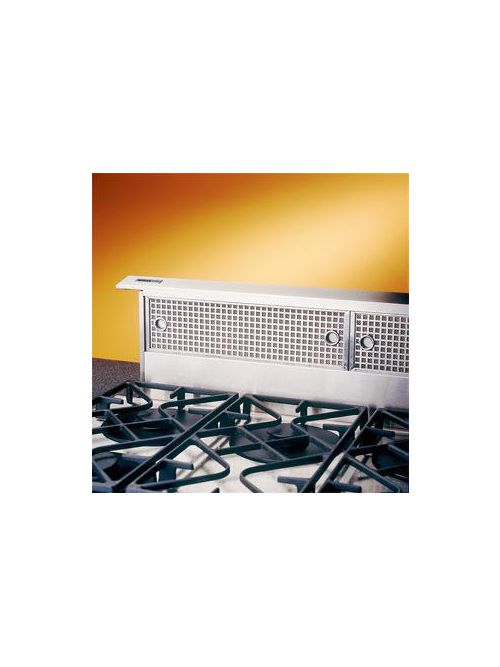

  • Compact design is installed directly behind the cooktop for an unobtrusive appearance. (Not for use behind ovens.) Thin profile saves precious space under the cabinet
  • Chimney rises over 9-1/2 inches when activated, ideal for large pots and pans
  • Infinitely adjustable control is designed to provide convenient access to govern the blower speed for effective and quiet operation
  • Optional remote control will activate down draft from an alternate location (RMDDRBK sold separately)
  • Dishwasher-safe filters are easy to remove and feature a stylish brushed stainless steel appearance for a professional look
  • Unique ducting capability allows the internal blower connection to be ducted to the left, right or downward (from left to right)
  • Heat Sentry adjusts speed of blower to High automatically in case of excess heat, to prolong product life
  • Compatible with optional Broan Make-up Air Dampers (sold separately) to fit 6" or 8" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable
  • Models RMDD3004EX, RMDD3604EX and RMDD4804EX offer you choice of exterior blowers ranging from 600 to 1500 CFM or in-line blowers from 280 to 1100 CFM (blower required and sold separately)
  • 500 CFM internal blower is included on RMDD3004, RMDD3604 and RMDD4804 models


  • CFM: 500
  • Color Finish: Stainless Steel
  • Product Depth: 7"
  • Product Height: 29-1/2"
  • Product Width: 30"
  • Light Number Of Levels: 0
  • Filter Quantity: 2
  • Filter Type: Stainless Steel
  • Heat Sentry: Yes
  • Motor Number Of Speeds: Variable
  • Boost Mode: No
  • ADA Compliance: No
  • Damper Included: No
  • Non-ducted Filter Included: No
  • Amperage: 4
  • Rated Voltage: 120
  • Switch Control Type: Rotary Dial
  • Non-Ducted Recirculation Capable: No
  • Warranty: 1 Year
  • UL Listed: Yes
  • Duct Connector Size: 3-1/4" x 10" or 6" Round
  • Duct Direction: Horizontal/Vertical
  • Duct Shape: Rectangular or Round
  • Duct Diameter: 6"
  • Duct Height Rectangular: 3-1/4"
  • Duct Width Rectangular: 10"
  • HVI Certified: Yes
  • ENERGY STARĀ® certified product: No


GTiN 00026715151752
Family Brand Name BROAN-NUTONE
Product UPC 02671515175
Finish Stainless Steel
Warranty Length 1 yr
Width 30 in
Voltage 120 Volt
Depth 7 in
Height 29-1/2 in
Switch Type Rotary Dial
Amperage 4 Amp
Duct Size 6 in
Airflow Rate 500 CFM
Duct Shape Rectangular Or Round
Filter Type Stainless Steel
