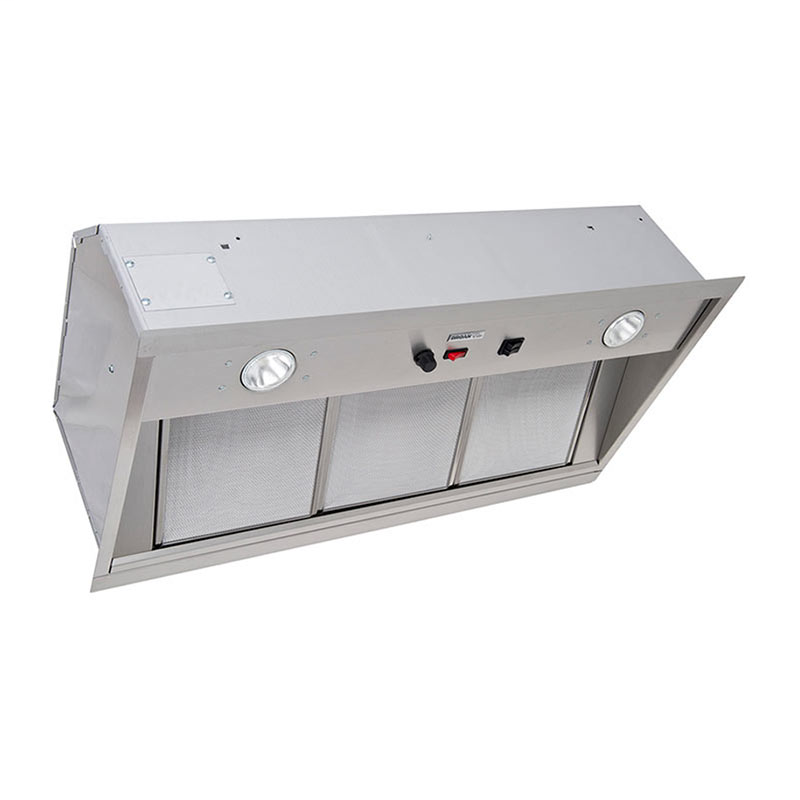

BROAN RMIP33 Pro-Style Insert (blow
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Broan
Mfg Catalog # RMIP33
North Coast Part # 490997


  • Especially designed to be installed in custom hood for use over residential commercial-style cooking surfaces
  • Infinitely adjustable blower control is designed to provide the precise speed you need for whatever is cooking
  • Optional remote control allows you to operate the hood at your own convenience. (Sold separately.)
  • Halogen bulbs provide brilliant lighting over the cooktop and surrounding area (Uses 50-watt, PAR20 Bulbs - Not Included, two bulbs on 33" model and three bulbs on the 45" model)
  • Dishwasher-safe mesh filters are included; stainless steel baffle filters are optional and add to your hood's professional performance (RBFIP33, RBFIP45, sold separately)
  • Optional stainless steel liners complete the custom look of your hood and protect surrounding cabinetry (RML3336S,┬áRML3342S, RML4548S, RML4554S or RML4560S sold separately). Liners allow depth adjustment from 23.5" to 26.5"
  • Heat Sentry adjusts speed of blower to High automatically in case of excess heat, to prolong product life
  • Select the proper blower: Choose from 460 or 850 CFM Internal (P5 or P8), or External blower options: four Exterior, 600, 900, 1200 or 1500 CFM (331H, 332H, 335 or 336), or four In-Line, 280, 600, 800, or 1100 CFM (HLB3, HLB6, HLB9 or HLB11). Blowers sold separately.
  • Compatible with optional Broan Make-up Air Dampers (MD6TU or MD8TU, sold separately) to fit 6" or 8" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable


  • CFM: N/A
  • Color Finish: Stainless Steel
  • Product Depth: 18-7/16"
  • Product Height: 11-1/2"
  • Product Width: 33-3/4"
  • Light Number Of Levels: 2
  • Light Type: Halogen
  • Light Bulb Wattage: 50W
  • Light Bulb Recommended Type: Par20
  • Light Bulbs Included: No
  • Light Bulb Quantity: 2
  • Filter Quantity: 3
  • Filter Type: Stainless Steel & Aluminum
  • Heat Sentry: Yes
  • Motor Number Of Speeds: Variable
  • Boost Mode: No
  • ADA Compliance: No
  • Damper Included: No
  • Non-ducted Filter Included: No
  • Amperage: 0.8 Without Blower
  • Rated Voltage: 120
  • Switch Control Type: Rotary Dial
  • Non-Ducted Recirculation Capable: No
  • Warranty: 1 Year
  • UL Listed: Yes
  • Duct Connector Size: 3-1/4" x 10"
  • Duct Direction: Vertical
  • Duct Shape: Rectangular
  • Duct Height Rectangular: 3-1/4"
  • Duct Width Rectangular: 10"
  • HVI Certified: Yes
  • ENERGY STAR┬« certified product: No


UPC 02671515784

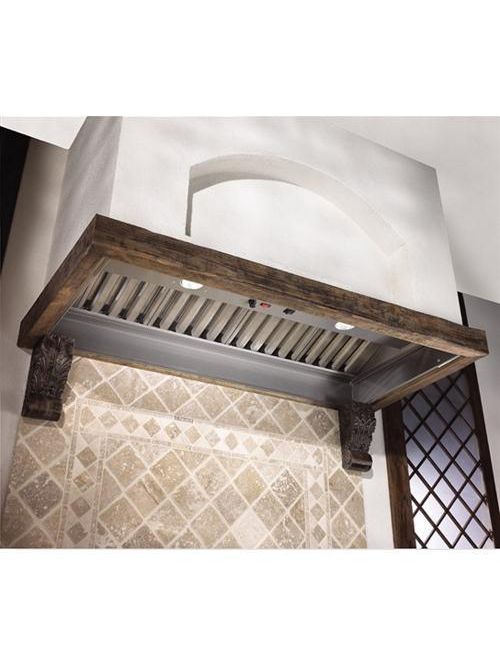

Item Long Description The Broan Elite RMIP Pro-Style Insert fits flush with the bottom of the cabinet or custom hoods. Choice of internal or external centrifugal blowers from 500 to 1500 CFM with multi-speed controls provide quiet and effective performance. Halogen lighting complements the beauty of its fully-enclosed, easy to clean bottom.
GTiN 00026715157846
Finish Stainless Steel
Width 33-3/4 in
Type Pro-Style Insert
Applications For Use With P5, P8, 331H, 332H, 335, 336, HLB3, HLB6, HLB9 And HLB11
Family Brand Name Broan-Nutone
Control Type 2-Speed Rotary Dial
Sub Brand Ultra
Warranty Length 1 yr
Voltage 120 Volt
Depth 18-7/16 in
Height 11-1/2 in
Standard UL Listed
Wattage 50 Watt
Switch Type Rotary Dial
Light Type Halogen
Bulb Included No
Amperage 0.8 Without Blower Amp
Duct Shape Rectangular
Filter Type Stainless Steel & Aluminum
