BROAN RMPE7004 Power Pack for Exter
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Broan
Mfg Catalog # RMPE7004
North Coast Part # 350169


  • Model RMP17004 features a 400 CFM internal blower with the power you need at 9.0 sones, using 6" round ductwork for easy installation
  • Model RMPE7004 offers several external blower options: four exterior in 600, 900, 1200 or 1500 CFM and four in-line in 280, 600, 800, or 1100 CFM. (Blowers sold separately.)
  • Multi-speed slide control allows you to set just the right exhaust speed to keep up with whatever is cooking
  • Dual 50-watt Halogen lamps (GU10, MR16, 50-watt max included) provide brilliant lighting over the cooktop and surrounding area
  • Dishwasher-safe aluminum filter features a quick-release latch and professional style appearance for good looks and a fresh kitchen
  • Optional non-duct filters (FILTEREB40) must be used for indoor exhaust recirculation; some ductwork required
  • Optional stainless steel liners complete the custom look of your hood and protect surrounding cabinetry (for 18"-21" deep cabinet - RML7030S, RML7036S or RML7048S; for 21-24" deep cabinet - RML7030L, RML7036L OR RML7048L sold separately).
  • Heat Sentry adjusts speed of blower to High automatically in case of excess heat, to prolong product life
  • Compatible with optional Broan Make-up Air Dampers (MD6TU or MD8TU, sold separately) to fit 6" or 8" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable


  • CFM: N/A
  • Color Finish: Stainless Steel
  • Product Depth: 11-1/4"
  • Product Height: 3-1/4"
  • Product Width: 27-9/16"
  • Light Type: Halogen
  • Nightlight Or Nightlight Setting: No
  • Light Bulb Wattage: 50W
  • Light Bulb Recommended Type: GU10 MR16
  • Light Bulbs Included: Yes
  • Light Bulb Quantity: 2
  • Filter Quantity: 2
  • Filter Type: Aluminum
  • Heat Sentry: Yes
  • Motor Number Of Speeds: Variable
  • Boost Mode: No
  • ADA Compliance: No
  • Damper Included: Yes
  • Non-ducted Filter Included: No
  • Amperage: 3.53
  • Rated Voltage: 120
  • Switch Control Type: Slide
  • Non-Ducted Recirculation Capable: No
  • Warranty: 1 Year
  • UL Listed: Yes
  • Duct Connector Size: 6" Round
  • Duct Direction: Vertical
  • Duct Shape: Round
  • Duct Diameter: 6"
  • HVI Certified: Yes
  • ENERGY STARĀ® certified product: No


UPC 02671515229

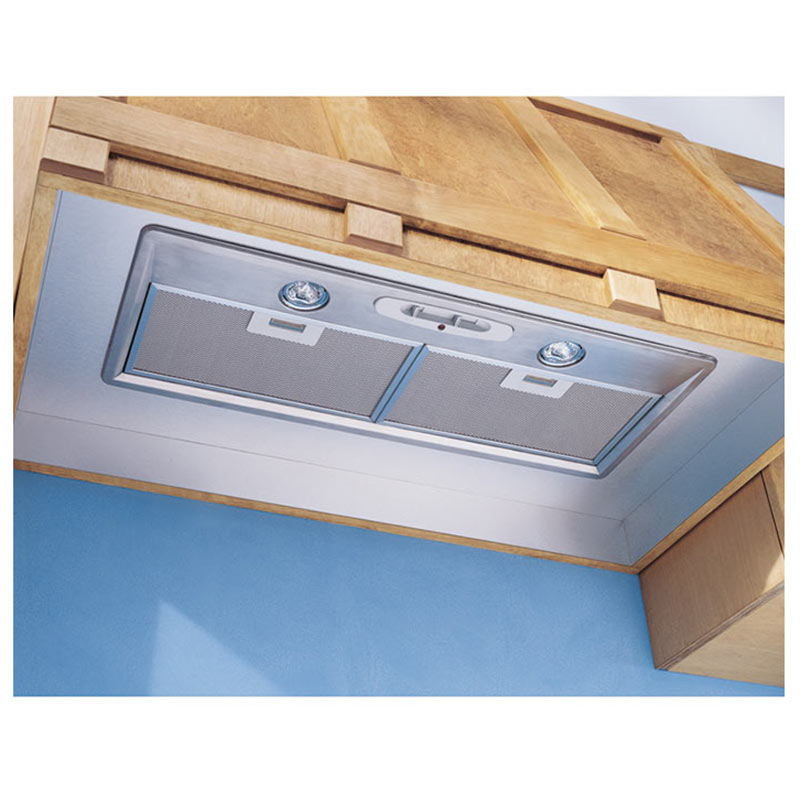

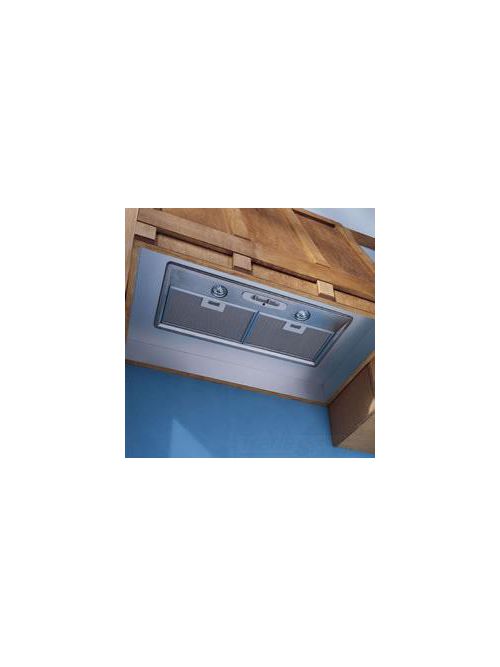

Item Long Description The Broan Elite Custom Power Pack is designed to fit flush with the bottom of a cabinet or custom hood that's 30 to 48 in. wide.
GTiN 00026715152292
Finish Stainless Steel
Warranty Length 1 yr
Width 27-9/16 in
Voltage 120 Volt
Depth 11-1/4 in
Height 3-1/4 in
Wattage 50 Watt
Switch Type Slide
Family Brand Name BROAN-NUTONE
Light Type Halogen
Bulb Included Yes
Amperage 3.53 Amp
Duct Size 6 in
Duct Shape Round
Filter Type Aluminum
