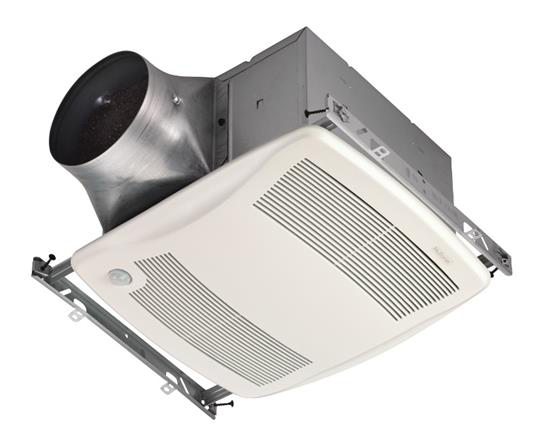

BROAN ZN110M 110 CFM, <0.3 Sones, M

Features

• 110 CFM quickly reduces humidity to prevent or eliminate fogged mirrors and manage moisture in bathrooms up to 100 square feet, so your vision will always be clear and your surroundings will always be comfortable
• ULTRASense™ M, Motion Sensing Technology, offers a hands-free solution for maximum convenience. The fan will increase to maximum speed from the lower, continuous setting when motion is detected -- which is ideal for family members who forget to turn the fan on -- and will stay on the max setting for the user-set 5-60 minute period after no motion is detected, before falling back to the continuous setting
• Multi-Speed operation handles demanding spot ventilation needs, but can also pull double-duty as a great continuous ventilation solution to meet today’s stringent requirements. Upon installation, a continuous CFM adjustment dial is set to precisely control the airflow for the size of your house – so you’ll enjoy a successful inspection and not over-ventilate. A timer dial (adjustable from 5-60 minutes) is set at the same time to control how long the fan runs at maximum CFM, before automatically returning to the lower continuous ventilation level – all after you leave the room
• ULTRASilent™ Sound Technology results in operation at less than 0.3 Sones – the quietest sound rating attainable -- for an environment that is so quiet, you’ll likely forget the fan is on
• ULTRAQuick™ Installation Technology uses an exclusive telescoping mounting frame with pre-installed screws, snap-in housing, snap-in blower and an inside-out mounting duct connector that deliver the fastest, easiest, most universal installation
• Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation, so you can move on to something else
• Unique telescoping mounting frame can be placed and fastened through drywall hole because it expands from 14” to 24” and fits any type of joist, I-Joist or truss construction for a “no guesswork” installation to make the work fast and easy
• Snap-in housing and blower further simplify installation since you can hear – and feel – when they are properly seated. Easy-to-position carriage allows housing location adjustment between joists so you can control the correct ceiling placement
• ULTRASmart™ DC Motor & Control Technology provides energy efficiency almost 10 times greater than ENERGY STAR® requirements and maintains rated power (CFM) in nearly every installation. You have confidence you’re getting the expected performance and won’t even notice the fan usage on your utility bill
• UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
• Compatible with Radiation Damper RDFU which helps prevent flame and heat from spreading to other areas in multi-level buildings. In some cases an accessory wire jumper kit is required. This kit (model RDJUMPU) provides the additional lighting and sensing wire length necessary to bypass the damper
• Can be used to comply with ASHRAE 62.2 and CALGreen

Specifications

• Bathrooms up to (X) Square Feet: 105
• Ceiling Installation: Yes
• CFM @ 0.10": 110
• CFM @ 0.25": 110
• Color: White
• CSA: No
• cUL Listed: Yes
• Duct Direction: Horizontal
• Duct Size: 6"
• ENERGY STAR® certified product: Yes
• ENERGY STAR® Most Efficient 2018: Yes
• Globe Color: N/A
• Grille Diameter: N/A
• Grille Finish: White Polymeric
• Grille Length: 13-1/8"
• Grille Width: 14"
• Heater Wattage: N/A
• Housing Dimension LxWxH: 10-1/2" x 11-3/8" x 7-5/8"
• Housing Height: 7-5/8"
• Housing Length: 10-1/2"
• Housing Width: 11-3/8"
• Humidity Sensing: No
• HVI Certified: Yes
• Light Bulb Quantity: N/A
• Light Bulb Wattage: N/A
• Light Bulbs Included: No
• Lighting Type: No Light
• Minimum construction space required: 2" x 8"
• Motion Sensing: Yes
• Motor engineered for continuous operation: Yes
• Nightlight: No
• Product Weight (Pounds): N/A
• Project Pack: No
• Rated Amps: 0.3
• Rated Sones: <0.3
• Rated Sones - Vertical: N/A
• Rated Watts: N/A
• Sones 6" to 4" reducer: N/A
• UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
• Wall Installation: No
• Warranty: 3 Years
• Watts @ 0.1": N/A
• Watts @ 0.1" (Max CFM): N/A
• Watts @ 0.25": N/A

Accessories

• RDFU
• RDJUMPU
• RDFUWT
• 82W
