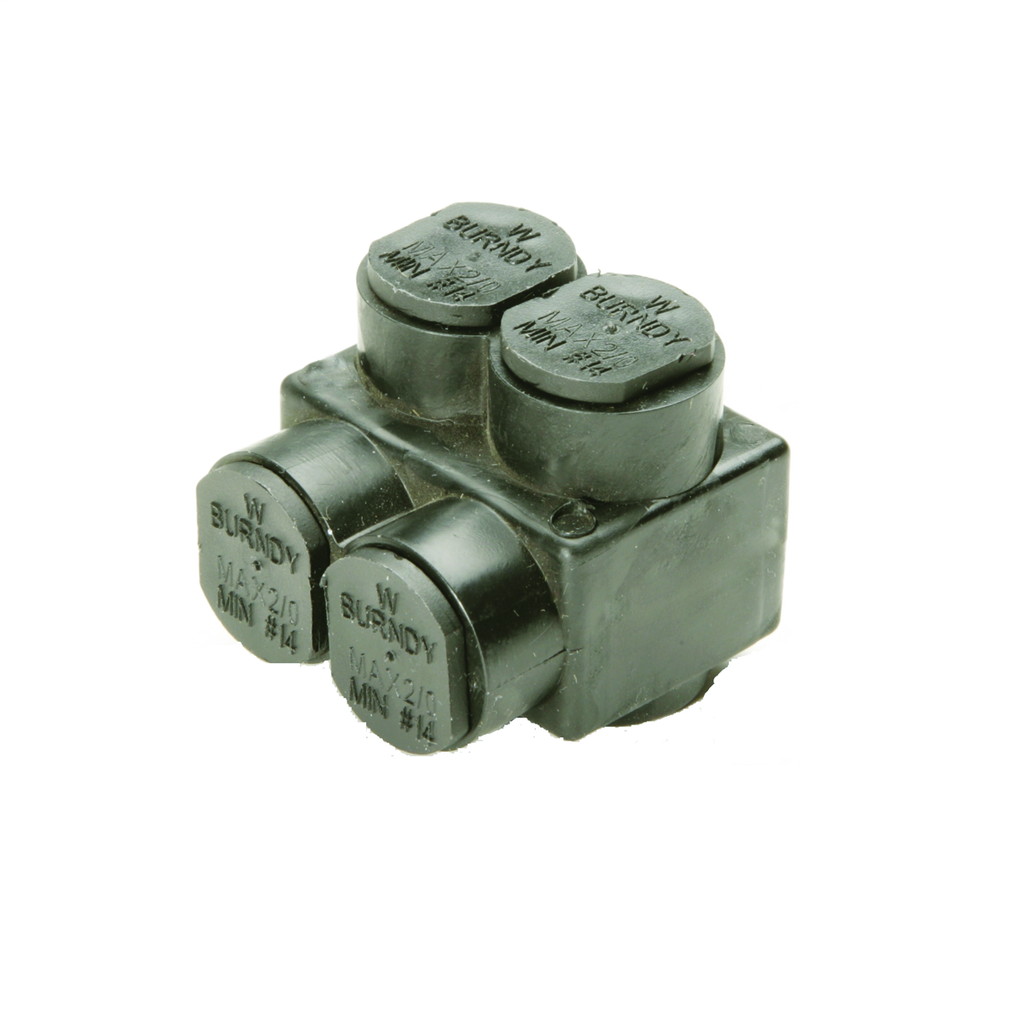

BUR 1PL2/02 BLKTAP,SGL,2 PRTS 2/0-1
Product image thumbnail 0
Product image thumbnail 1
$14.23/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # 1PL2/02
North Coast Part # 269035

Specifications

General

  • Application: For Indoor Use Only, Copper Or Stranded Aluminum
  • Hex Key: 3/16
  • Installation Torque Recommended in-lb: 120 in-lb
  • Insulation: Y
  • Insulation Type: Plastisol
  • Material: Aluminum
  • Material - Hardware: Aluminum
  • Number Of Ports: 2
  • Physical Attribute - Number of Screws: 2
  • Plated: N
  • Plating Type: Unplated
  • Sub Brand: UNITAP
  • Temperature Rating: 194° F
  • Trade Name: UNITAP™
  • Type: BIBS, Multi-Port
  • UPC: 781810287484
  • UPC 12 Digit: 7818102874844

Dimensions

  • Dimension - Height fraction: 1.375 in
  • Dimension - Height inch: 1.38 in
  • Dimension - L Length Overall mm: 39 mm
  • Dimension - Length Overall inch: 1.52 in
  • Dimension - Screw Size inch: 1/4
  • Dimension - Width fraction: 1-2/5 in
  • Dimension - Width inch: 1.40 in
  • Dimension - Width mm: 36 mm

Electrical Ratings

  • Rating - Minimum Voltage: 600

Conductor Related

  • Conductor - AL Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
  • Conductor - AL Str Size Range: 14 AWG-2/0 AWG
  • Conductor - Copper Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
  • Conductor - Copper Str Size Range: 14 AWG-2/0 AWG

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Conductor Type

  • AL C Str-Size
  • CU C Str-Size

Overview

UPC 78181028748
GTiN 00781810287484
Size 1.38 IN Height X 1.40 IN Width X 1.52 IN Length
Type BIBS, Multi-Port
Material Aluminum
Conductor Size 1 AWG
Applications For Indoor Use Only, Copper Or Stranded Aluminum
Temperature Rating 194 F
Family Brand Name Burndy
Sub Brand UNITAP
Length 1.52 in
Width 1.40 in
Insulation Type Plastisol
Height 1.38 in
Plating Type Unplated
Plated? No
CSA No
