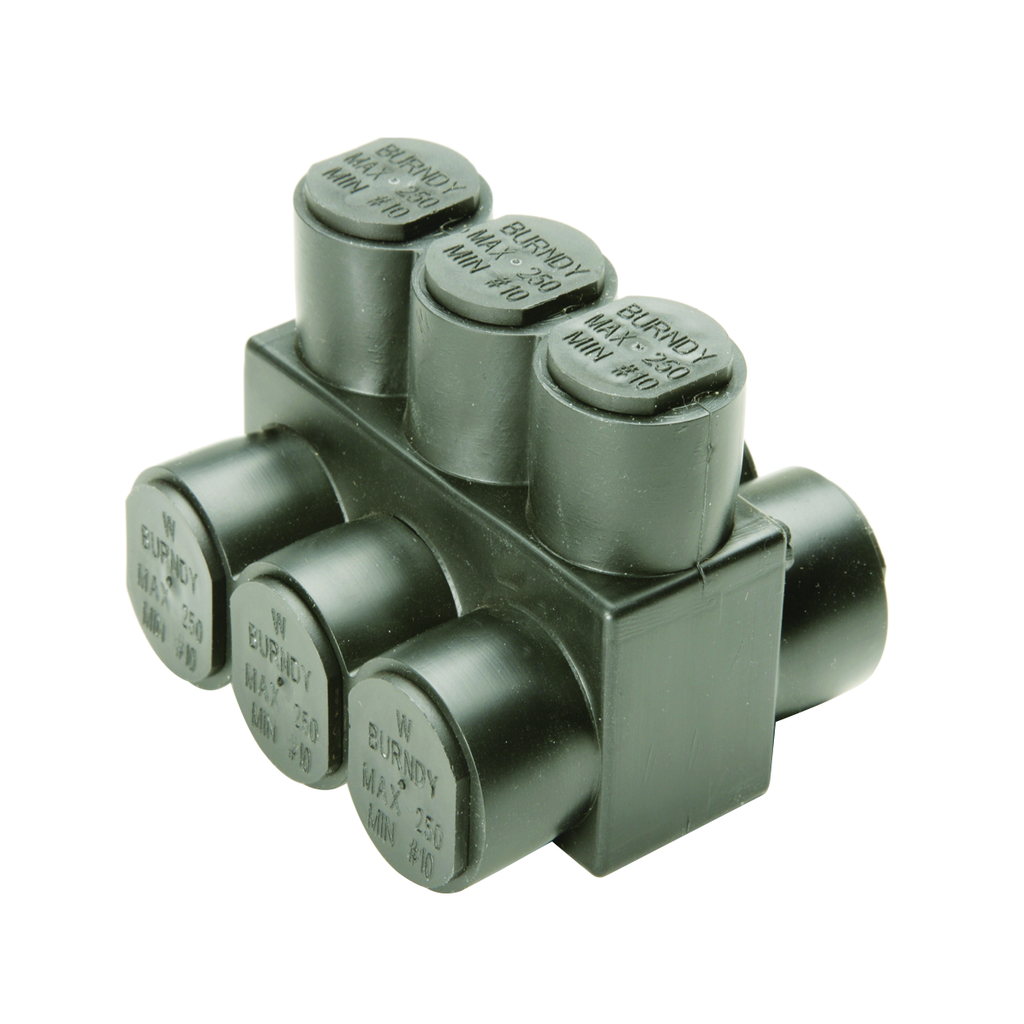

BUR 1PL2/03 BLKTAP,SGL,3 PRTS 2/0-1

Specifications

General

• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Hex Key: 3/16
• Installation Torque Recommended in-lb: 120 in-lb
• Insulation: Y
• Insulation Type: Plastisol
• Material: Aluminum
• Material - Hardware: Aluminum
• Number Of Ports: 3
• Physical Attribute - Number of Screws: 3
• Plated: N
• Plating Type: Unplated
• Sub Brand: UNITAP
• Temperature Rating: 194° F
• Trade Name: UNITAP™
• Type: BIBS, Multi-Port
• UPC: 781810286845
• UPC 12 Digit: 7818102868455

Dimensions

• Dimension - Height fraction: 1.375 in
• Dimension - Height inch: 1.38 in
• Dimension - L Length Overall mm: 56 mm
• Dimension - Length Overall inch: 2.19 in
• Dimension - Screw Size inch: 7/16
• Dimension - Width fraction: 1-31/100 in
• Dimension - Width inch: 1.31 in
• Dimension - Width mm: 33 mm

Electrical Ratings

• Rating - Minimum Voltage: 600

Conductor Related

• Conductor - AL Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
• Conductor - AL Str Size Range: 14 AWG-2/0 AWG
• Conductor - Copper Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
• Conductor - Copper Str Size Range: 14 AWG-2/0 AWG

Certifications and Compliance

• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Listed Direct Burial: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes

Logistics

• Minimum Pack Quantity: 1

Conductor Type

• AL C Str-Size
• CU C Str-Size
