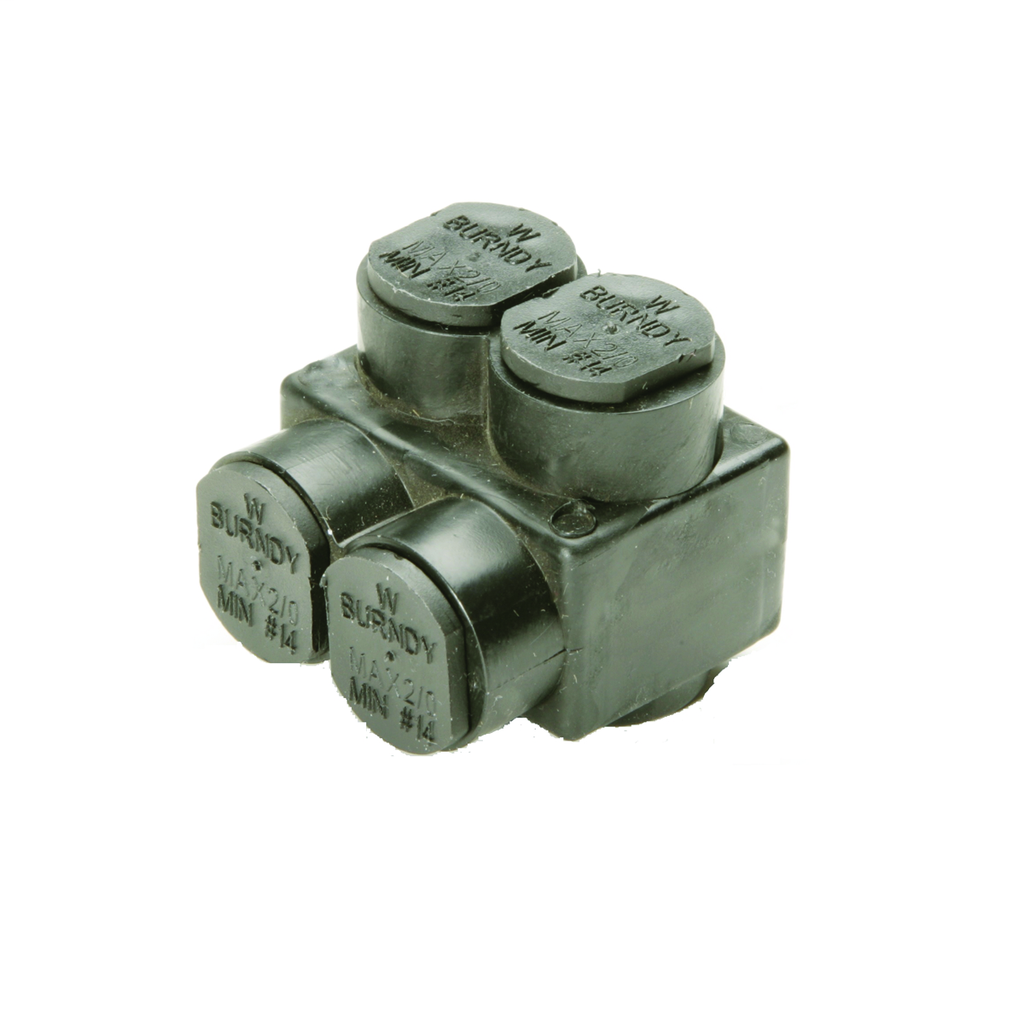

BUR 1PL2502 250-10 2PORT 1-SIDED TA
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$29.91/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # 1PL2502
North Coast Part # 269030

Features

  • UV Rated Plastisol Covered AL6061-T6 Aluminum Body Saves Time By Eliminating The Need For Taping, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, UL486B Listed, AL9CU, 600 V 90 DEG C, UNITAP Rated For Code Conductor Only, Wire Entry: Single, Hex Size (key): 5/16 IN, Conductor Size (run - Range): 10 AWG - 250 KCMIL, Type Of Insulation: UV Rated Plastisol, Torque: 275 IN-LB, Number Of Ports: 2

Specifications

  • Conductor - AL Str Size: 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
  • Conductor - AL Str Size Range: 10 AWG-250 kcmil
  • Conductor - Copper Str Size: 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
  • Conductor - Copper Str Size Range: 10 AWG-250 kcmil
  • Country of Origin: US
  • Dimension - Height fraction: 2-1/8 in
  • Dimension - Height inch: 2.13 in
  • Dimension - L Length Overall mm: 58
  • Dimension - Length Overall inch: 2.28
  • Dimension - Width fraction: 2-7/100 in
  • Dimension - Width inch: 2.07 in
  • Dimension - Width mm: 53 mm
  • Each - Height: 2.13 in
  • Each - Length: 2.28 in
  • Each - Width: 2.07 in
  • Hex Key: 5/16
  • Installation Torque Recommended in-lb: 275 in-lb
  • Insulation Type: Plastisol
  • Physical Attribute - Number of Screws: 2
  • Physical Attribute - Screw Type: Allen
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Rating - Minimum Voltage: 600
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: UNITAP™
  • Sub Brand: UNITAP

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181037008
Item Long Description Aluminum Multiple Tap Connector, UV Rated, 2 Port, 1 Sided Entry, 10 AWG-250 kcmil.
GTiN 00781810370087
Size 2.13 IN Height X 27 IN Width X 23 IN Length
Type BIBS, Multi-Port
Material Aluminum
Conductor Size 1 AWG
Applications For Indoor Use Only, Copper Or Stranded Aluminum
Temperature Rating 194 F
Family Brand Name Burndy
Sub Brand UNITAP
Length 2.28 in
Width 2.07 in
Insulation Type Plastisol
Height 2.13 in
Plating Type Unplated
Plated? No
CSA No
