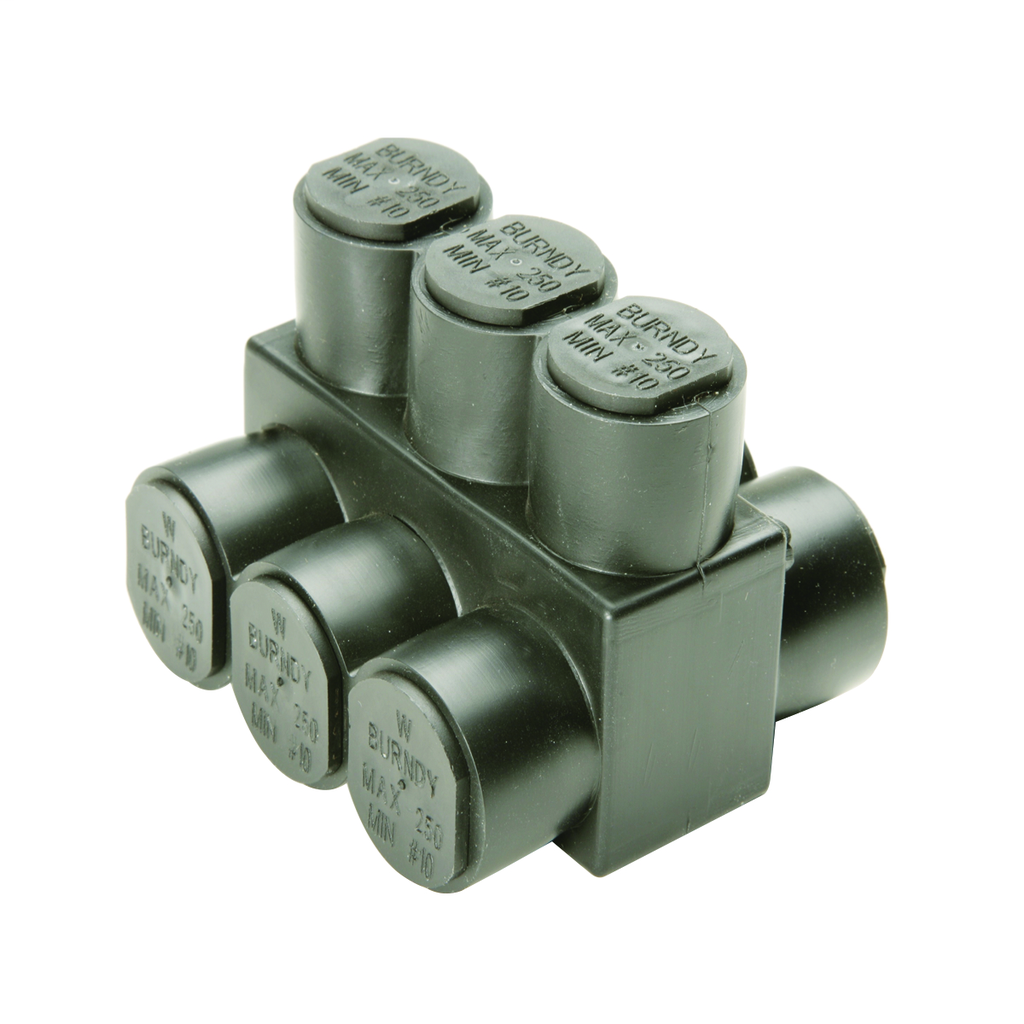

BUR 1PL43 BLKTAP,SGL,3 PRTS, 14-4

Features

Features: UV Rated Plastisol Covered AL6061-T6 Aluminum Body Saves Time By Eliminating The Need For Taping, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, UL486B Listed, AL9CU, 600 V 90 DEG C, UNITAP Rated For Code Conductor Only, Wire Entry: Single, Torque: 45 IN-LB, Conductor Size (run - Range): 14 - 4 AWG, Hex Size (key): 1/8 IN, Wire Strip Length: 5/8 IN, Type Of Insulation: UV Rated Plastisol, Number Of Ports: 3

Specifications

• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Hex Key: 1/8
• Installation Torque Recommended in-lb: 45 in-lb
• Insulation: Y
• Insulation Type: Plastisol
• Material: Aluminum
• Material - Hardware: Aluminum
• Number Of Ports: 3
• Physical Attribute - Number of Screws: 3
• Physical Attribute - Screw Type: Allen
• Plated: N
• Plating Type: Unplated
• Sub Brand: UNITAP
• Temperature Rating: 194° F
• Trade Name: UNITAP™
• Type: BIBS, Multi-Port
• UPC: 781810286975
• UPC 12 Digit: 7818102869755
• Dimension - Height fraction: 1.25 in
• Dimension - Height inch: 1.25 in
• Dimension - L Length Overall mm: 38 mm
• Dimension - Length Overall inch: 1.51 in
• Dimension - Screw Size inch: 1/4
• Dimension - Width fraction: 1-1/4 in
• Dimension - Width inch: 1.25 in
• Dimension - Width mm: 32 mm
• Rating - Minimum Voltage: 600
• Conductor - AL Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
• Conductor - AL Str Size Range: 14 AWG-4 AWG
• Conductor - Copper Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
• Conductor - Copper Str Size Range: 14 AWG-4 AWG

Conductor Type

• AL C Str-Size
• CU C Str-Size

• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Listed Direct Burial: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
