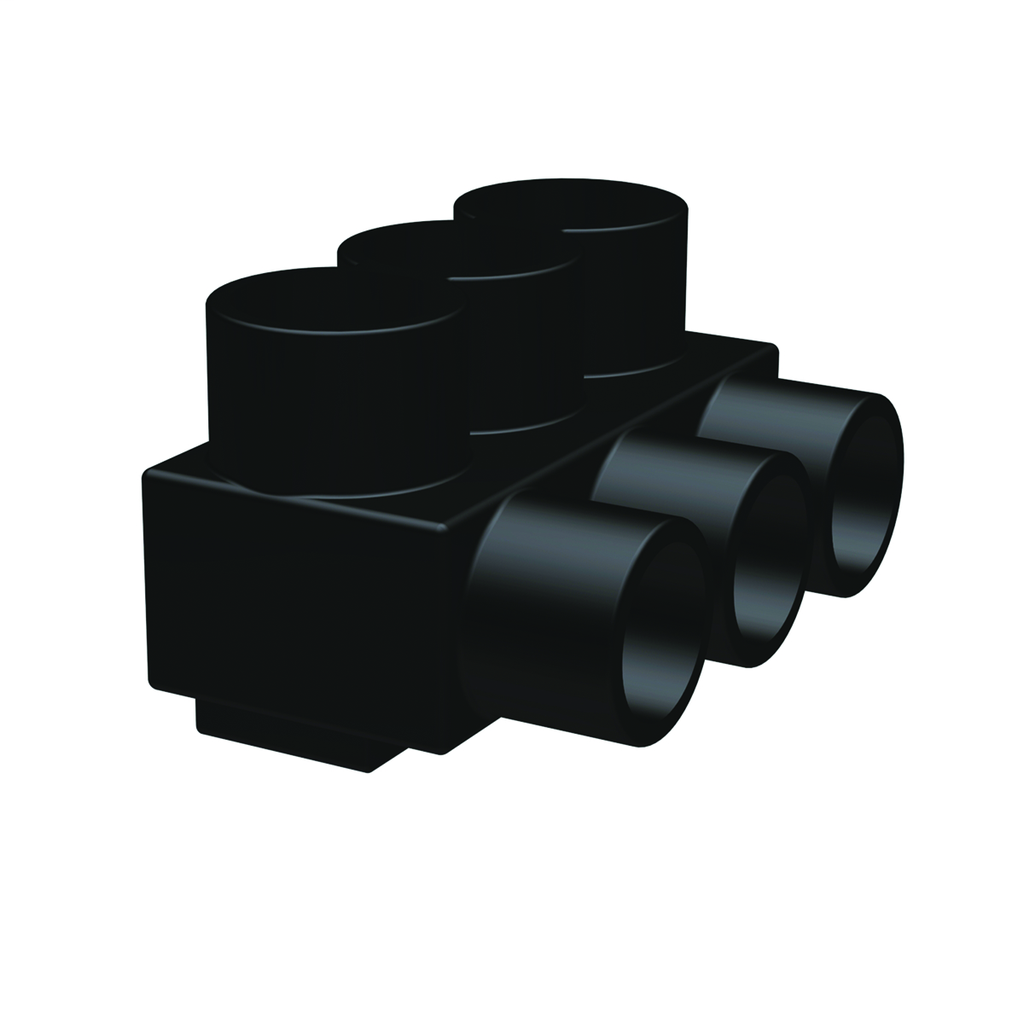

BUR 1PL44 BLKTAP,SGL,4 PRTS, 14-4
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$29.57/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # 1PL44
North Coast Part # 269169

Features

  • UV Rated Plastisol Covered AL6061-T6 Aluminum Body Saves Time By Eliminating The Need For Taping, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, UL486B Listed, AL9CU, 600 V 90 DEG C, UNITAP Rated For Code Conductor Only, Wire Entry: Single, Torque: 45 IN-LB, Conductor Size (run - Range): 14 - 4 AWG, Hex Size (key): 1/8 IN, Wire Strip Length: 5/8 IN, Type Of Insulation: UV Rated Plastisol, Number Of Ports: 4

Specifications

  • Buy American Compliant: Yes
  • Conductor - AL Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
  • Conductor - AL Str Size Range: 14 AWG - 4 AWG
  • Conductor - Copper Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG
  • Conductor - Copper Str Size Range: 14 AWG - 4 AWG
  • Country of Origin: US
  • Dimension - Height fraction: 1.25 in
  • Dimension - Height inch: 1.25 in
  • Dimension - L Length Overall mm: 50 mm
  • Dimension - Length Overall inch: 1.95 in
  • Dimension - Screw Size inch: 1/4
  • Dimension - Width fraction: 1-1/4 in
  • Dimension - Width inch: 1.25 in
  • Dimension - Width mm: 32 mm
  • Each - Height: 1.25 in
  • Each - Length: 1.95 in
  • Each - Width: 1.25 in
  • Hex Key: 1/8
  • Installation Torque Recommended in-lb: 45 in-lb
  • Insulation Type: Plastisol
  • Physical Attribute - Number of Screws: 4
  • Physical Attribute - Screw Type: Allen
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Rating - Minimum Voltage: 600
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: UNITAP™
  • Application: For Indoor Use Only, Copper Or Stranded Aluminum
  • Special Features: Features: UV Rated Plastisol Covered AL6061-T6 Aluminum Body Saves Time By Eliminating The Need For Taping, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, UL486B Listed, AL9CU, 600 V 90 DEG C, UNITAP Rated For Code Conductor Only, Wire Entry: Single, Torque: 45 IN-LB, Conductor Size (run - Range): 14 - 4 AWG, Hex Size (key): 1/8 IN, Wire Strip Length: 5/8 IN, Type Of Insulation: UV Rated Plastisol, Number Of Ports: 4
  • Sub Brand: UNITAP
  • Temperature Rating: 194° F
  • Type: BIBS, Multi-Port

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181028698
Item Long Description UV Rated Black Unitap, 4, #14 - 4, 2.03 in L, 1.25 in W, Range-taking capability reduces the number of connectors carried in inventory.
GTiN 00781810286982
Size 1.25 IN Height X 1.25 IN Width X 23 IN Length
Type BIBS, Multi-Port
Material Aluminum
Conductor Size 10 AWG
Applications For Indoor Use Only, Copper Or Stranded Aluminum
Temperature Rating 194 F
Family Brand Name Burndy
Sub Brand UNITAP
Length 1.95 in
Width 1.25 in
Insulation Type Plastisol
Height 1.25 in
Plating Type Unplated
Plated? No
CSA No
