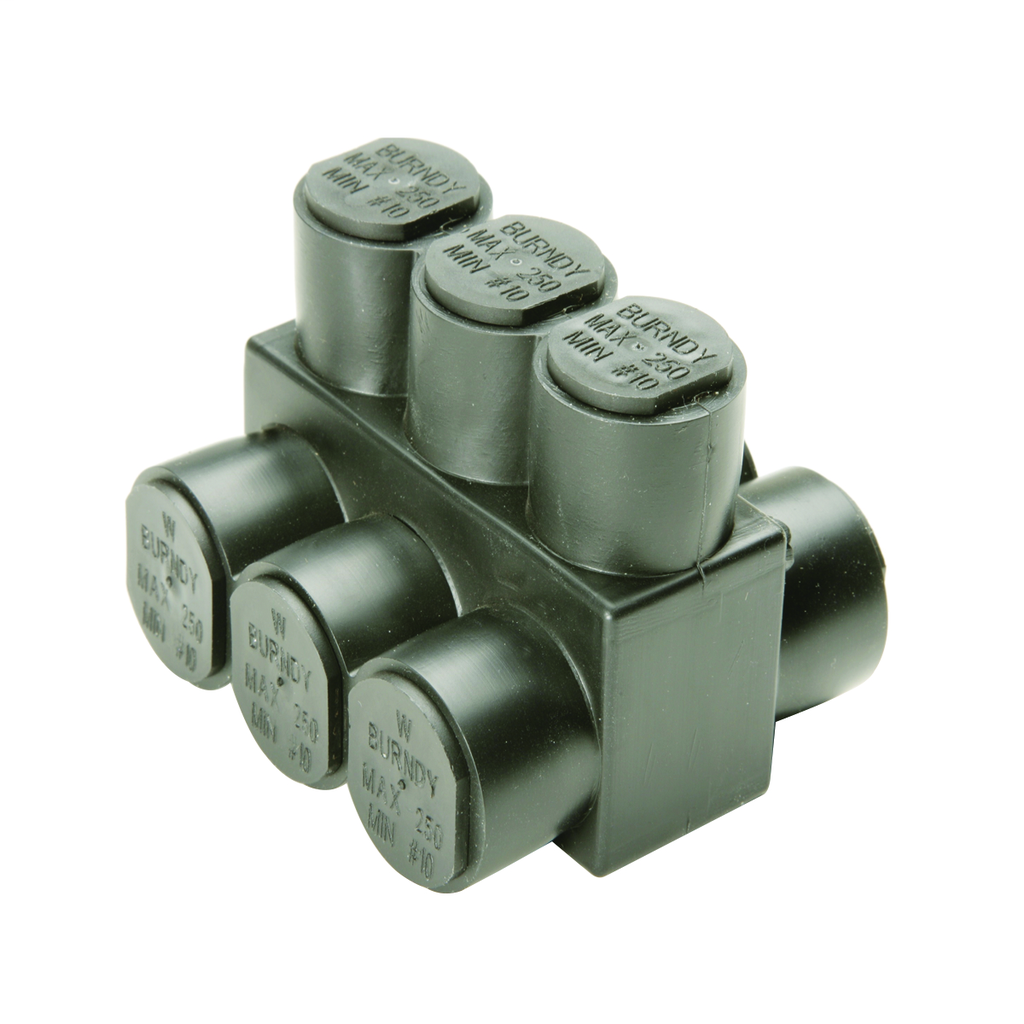

BUR 1PLD2/03 BLKTAP,DBL,3 PRTS 2/0-
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$27.43/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # 1PLD2/03
North Coast Part # 268327

Features

  • UV Rated Plastisol Covered AL6061-T6 Aluminum Body Saves Time By Eliminating The Need For Taping, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, UL486B Listed, AL9CU, 600 V 90 DEG C, UNITAP Rated For Code Conductor Only, Wire Entry: Double, Conductor Size (run - Range): 14 - 2/0 AWG, Hex Size (key): 3/16 IN, Torque: 120 IN-LB, Type Of Insulation: UV Rated Plastisol, Number Of Ports: 3

Specifications

  • Conductor - AL Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
  • Conductor - AL Str Size Range: 14 AWG-2/0 AWG
  • Conductor - Copper Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG
  • Conductor - Copper Str Size Range: 14 AWG-2/0 AWG
  • Country of Origin: US
  • Dimension - Height fraction: 1.375 in
  • Dimension - Height inch: 1.38 in
  • Dimension - L Length Overall mm: 56 mm
  • Dimension - Length Overall inch: 2.19 in
  • Dimension - Screw Size inch: 7/16
  • Dimension - Width fraction: 1-14/25 in
  • Dimension - Width inch: 1.56 in
  • Dimension - Width mm: 40 mm
  • Each - Height: 1.38 in
  • Each - Length: 2.19 in
  • Each - Width: 1.56 in
  • Hex Key: 3/16
  • Installation Torque Recommended in-lb: 120 in-lb
  • Insulation Type: Plastisol
  • Physical Attribute - Number of Screws: 3
  • Physical Attribute - Screw Type: Allen
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Rating - Minimum Voltage: 600
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: UNITAP™
  • Sub Brand: UNITAP

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181029488
Item Long Description UV rated Black Unitap, 3, #14 - 2/0, 2.19 in L, 1.56 in.
GTiN 00781810294888
Size 1.25 IN Height X 1.56 IN Width X 2.19 IN Length
Type BIBD, Multi-Port
Material Aluminum
Conductor Size 1 AWG
Applications For Indoor Use Only, Copper Or Stranded Aluminum
Temperature Rating 194 F
Family Brand Name Burndy
Sub Brand UNITAP
Length 2.19 in
Width 1.56 in
Insulation Type Plastisol
Height 1.38 in
Plating Type Unplated
Plated? No
CSA No
