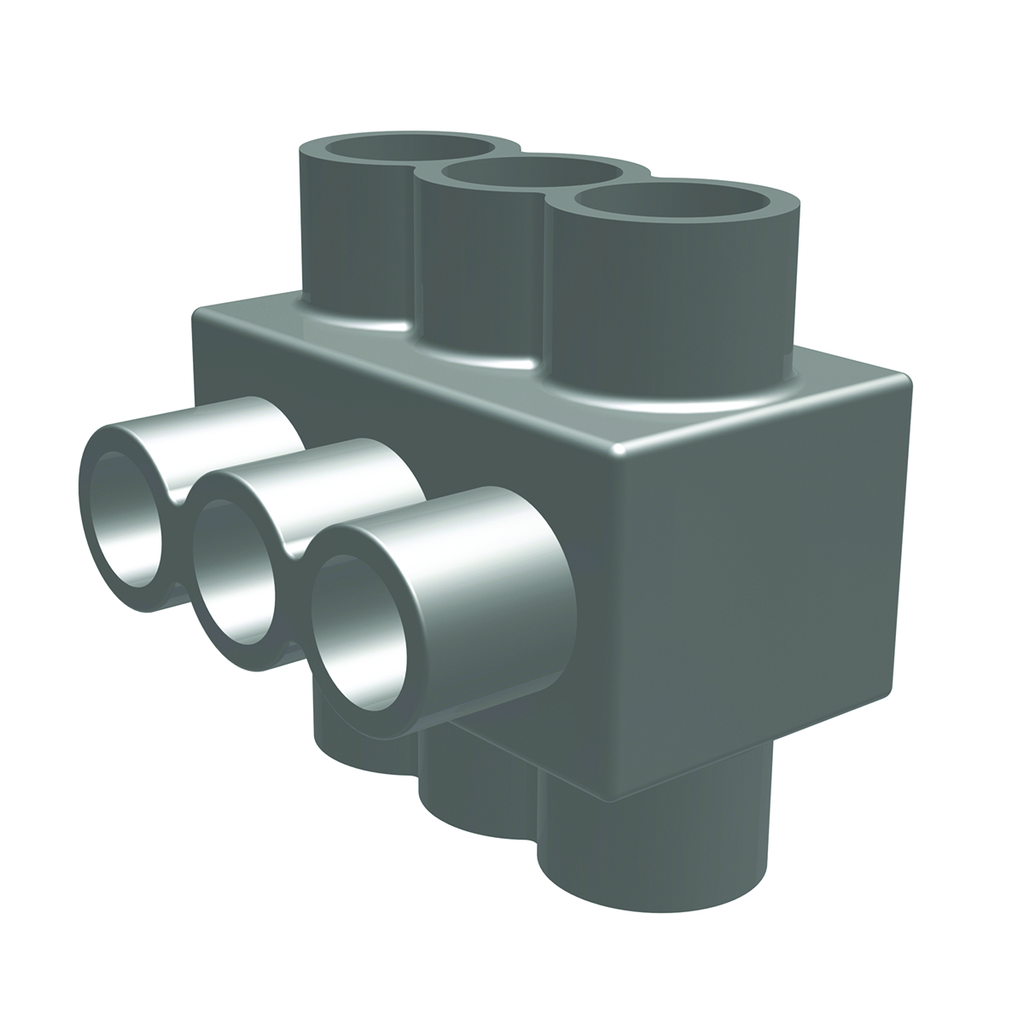

BUR 1PLD6004 BLKTAP,DBL,4 PRTS, 600
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$65.90/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # 1PLD6004
North Coast Part # 488972

Features

  • UV Rated Plastisol Covered AL6061-T6 Aluminum Body Saves Time By Eliminating The Need For Taping, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, UL486B Listed, AL9CU, 600 V 90 DEG C, UNITAP Rated For Code Conductor Only, Wire Entry: Double, Torque: 375 IN-LB, Hex Size (key): 3/8 IN, Conductor Size (run - Range): 4 AWG - 600 KCMIL, Number Of Ports: 4, Type Of Insulation: UV Rated Plastisol, Wire Strip Length: 1-1/8 IN

Specifications

  • Conductor - AL Str Size: 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil
  • Conductor - AL Str Size Range: 4 AWG-600 kcmil
  • Conductor - Copper Str Size: 4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil
  • Conductor - Copper Str Size Range: 4 AWG-600 kcmil
  • Country of Origin: US
  • Dimension - Height fraction: 2.75 in
  • Dimension - Height inch: 2.75 in
  • Dimension - L Length Overall mm: 134 mm
  • Dimension - Length Overall inch: 5.28 in
  • Dimension - Screw Size inch: 13/16
  • Dimension - Width inch: 3.00 in
  • Dimension - Width mm: 76 mm
  • Each - Height: 2.75 in
  • Each - Length: 5.28 in
  • Each - Width: 3 in
  • Hex Key: 3/8
  • Installation Torque Recommended in-lb: 375 LBS/in
  • Insulation Type: Plastisol
  • Physical Attribute - Number of Screws: 4
  • Physical Attribute - Screw Type: Allen
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Rating - Minimum Voltage: 600
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: UNITAP™
  • Sub Brand: UNITAP

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181028735
Item Long Description UV Rated Black Unitap, 4, #4 - 600, 4.97 in L, 3 in, UV Rated Plastisol covered AL6061-T6 aluminum body saves time by eliminating the need for taping.
GTiN 00781810287354
Size 2.75 IN Height X 3 IN Width X 4.97 IN Length
Type BIBD, Multi-Port
Material Aluminum
Conductor Size 1 AWG
Applications For Indoor Use Only, Copper Or Stranded Aluminum
Temperature Rating 194
Family Brand Name Burndy
Sub Brand UNITAP
Length 5.28 in
Width 3.00 in
Insulation Type Plastisol
Height 2.75 in
Plating Type Unplated
Plated? No
CSA No
