BUR 25CHENBOX 1/4 INCH HEXNUT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$85.71/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # 25CHENBOX
North Coast Part # 344817

Features

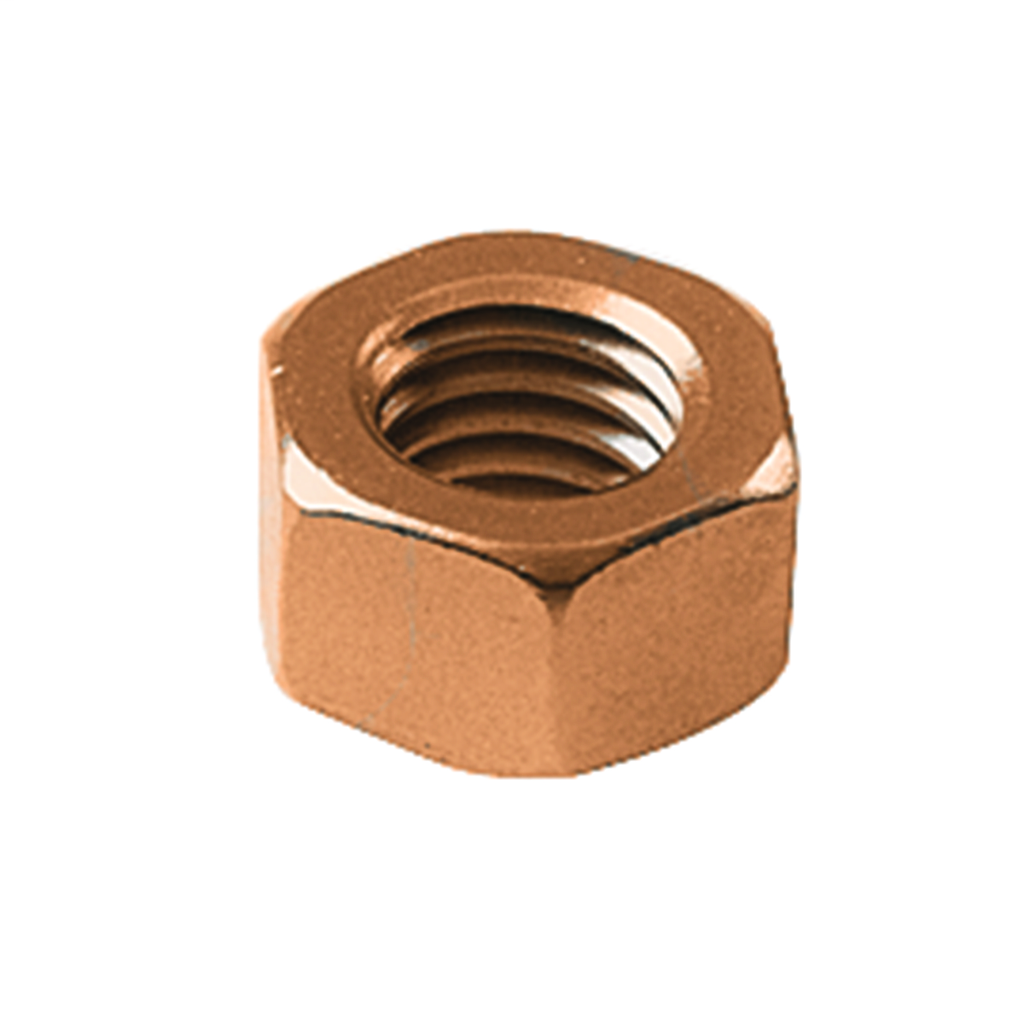

  • DURIUM hexagon regular nuts are non-magnetic and are made to American Standard dimensions

Specifications

  • Buy American Compliant: Yes
  • Country of Origin: US
  • Dimension - Bolt Size fraction: 1/4
  • Dimension - Bolt Size inch: 0.25 in
  • Dimension - Outside Diameter inch: 0.44 in
  • Dimension - Thread Size: 1/4 - 20
  • Dimension - Threads per inch: 20
  • Each - Height: 0.505 in
  • Each - Length: 0.438 in
  • Each - Width: 0.226 in
  • Installation Torque Recommended in-lb: 80 LBS/in
  • Product Type: Accessories
  • Standards - RoHS Compliance Status: CM
  • Trade Name: DURIUMâ„¢
  • Application: Used to fasten the joints
  • Special Features: DURIUM hexagon regular nuts are non-magnetic and are made to American Standard dimensions
  • Sub Brand: DURIUM
  • Type: HARDWARE
  • IGS 3D Model Asset Reference URL 3: https://hubbellcdn.com/igs/25CHENBOX_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/25CHENBOX_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/25CHENBOX_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: Yes
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810012420
Width 0.226 in
Type HARDWARE
Thread Size 0.25 in
Applications Used to fasten the joints
Height 0.55 Inch
Family Brand Name Burndy
Nut Type Hexagonal
Thread Type UNC
Sub Brand DURIUM
Product UPC 78181001242
Material Bronze
Connection Type Nut
CSA No
Length 0.438 Inch
Country of Origin USA
