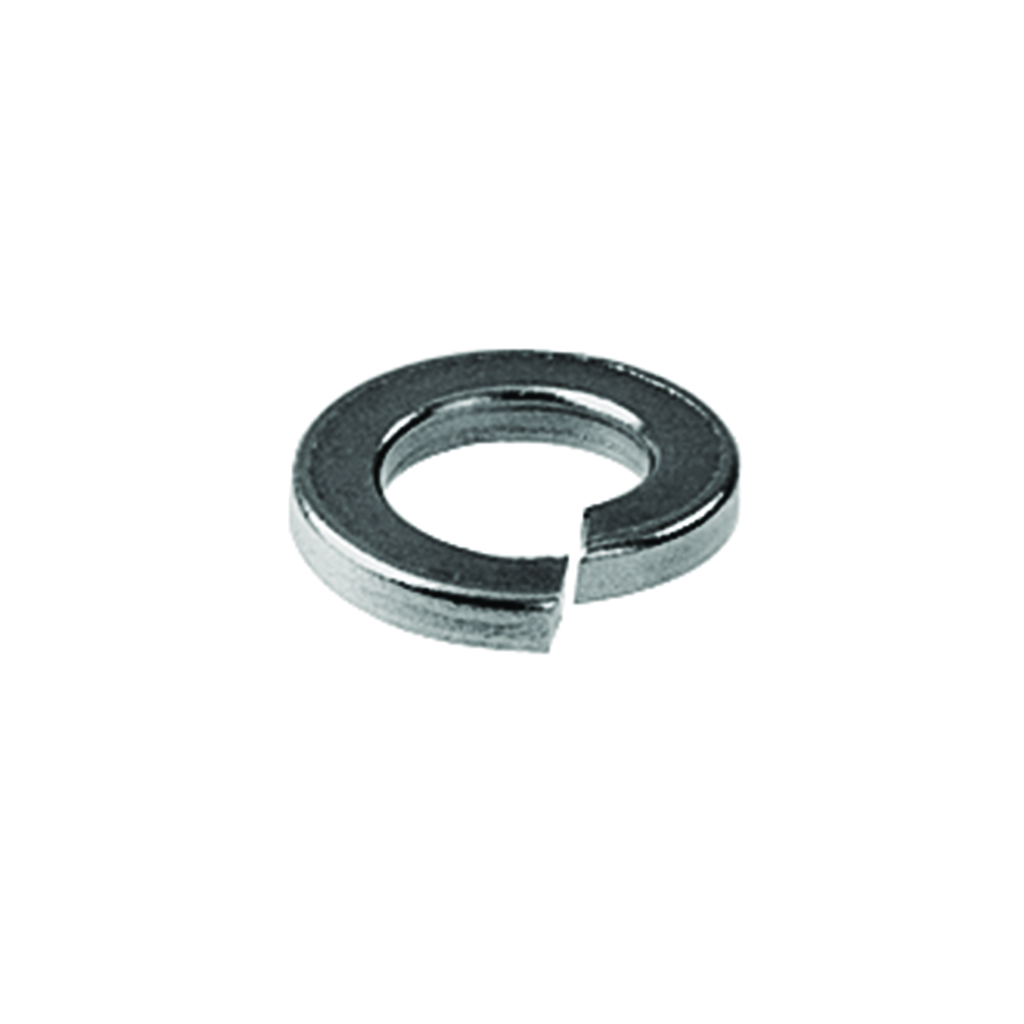

BUR 31SWBOX 5/16 INCH SPLIT WASHER
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$141.52/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # 31SWBOX
North Coast Part # 898

Features

  • DURIUM spring type lockwasher has high resiliency and exerts constant pressure on the face of the nut, preventing vibration from loosening the nut

Specifications

  • Buy American Compliant: Yes
  • Country of Origin: US
  • Dimension - Bolt Size fraction: 5/16
  • Dimension - Bolt Size inch: 0.312
  • Dimension - Inside Diameter inch: 0.326
  • Dimension - Outside Diameter inch: 0.586
  • Each - Height: 0.078 in
  • Each - Length: 0.58 in
  • Each - Width: 0.58 in
  • Product Type: Split Washers
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: DURIUMâ„¢
  • Application: Designed to prevent a nut from loosening
  • Special Features: Features: DURIUM spring type lockwasher has high resiliency and exerts constant pressure on the face of the nut, preventing vibration from loosening the nut
  • Sub Brand: HARDWARE WASHER, DURIUM
  • Type: Split Lock Washer
  • IGS 3D Model Asset Reference URL 2: https://hubbellcdn.com/igs/31SWBOX_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 3: https://hubbellcdn.com/PDF3DFile/31SWBOX_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/31SWBOX_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • ETL: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181001257
Item Long Description Split Lock Silicon Bronze Washer , Locking washers,for bolt size:5/16.
GTiN 00781810012574
Type Split Lock Washer
Thickness 0.078 IN
Material Bronze,Silicon
Applications Designed to prevent a nut from loosening
Family Brand Name Burndy
Outside Diameter 0.586 in
Inside Diameter 0.326 IN
Sub Brand Hardware Washer, DURIUM
Connection Type Washer - Flat
CSA No
