BUR 50CHENBOX 1/2IN HEX NUT

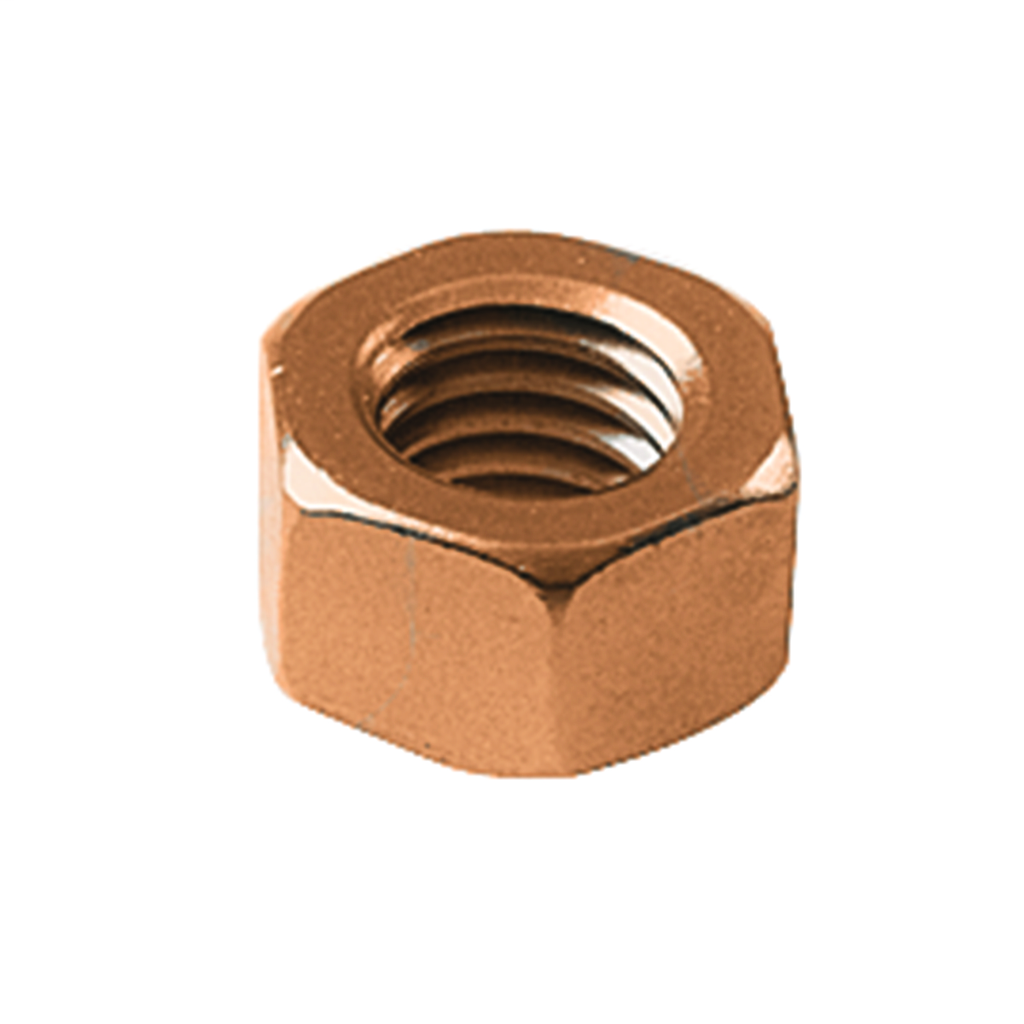

Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4.18/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # 50CHENBOX
North Coast Part # 12034

Features

  • DURIUM hexagon regular nuts are non-magnetic and are made to American Standard dimensions

Specifications

  • Buy American Compliant: Yes
  • Country of Origin: US
  • Dimension - Bolt Size fraction: 1/2
  • Dimension - Bolt Size inch: 0.5 in
  • Dimension - Outside Diameter inch: 0.75 in
  • Dimension - Thread Size: 1/2-13
  • Dimension - Threads per inch: 13
  • Each - Height: 0.86 in
  • Each - Length: 0.86 in
  • Each - Width: 0.75 in
  • Installation Torque Recommended in-lb: 480 LBS/in
  • Product Type: Accessories
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: DURIUMâ„¢
  • Application: Used to fasten the joints
  • Special Features: DURIUM hexagon regular nuts are non-magnetic and are made to American Standard dimensions
  • Sub Brand: DURIUM
  • Type: HARDWARE
  • IGS 3D Model Asset Reference URL 3: https://hubbellcdn.com/igs/50CHENBOX_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 1: https://hubbellcdn.com/PDF3DFile/50CHENBOX_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 2: https://hubbellcdn.com/step3dfile/50CHENBOX_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: Yes
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181001240
Item Long Description Silicon Bronze NUT ,1/2 Stud ,Thread series-Class 28.
GTiN 00781810012406
Width 0.75/0.866 in
Type HARDWARE
Thread Size 0.5 in
Applications Used to fasten the joints
Height 0.448 in
Family Brand Name Burndy
Nut Type Hexagonal
Thread Type UNC
Sub Brand DURIUM
Material Bronze,Silicon (DURIUM Is A Trademark)
Connection Type Nut
CSA No
