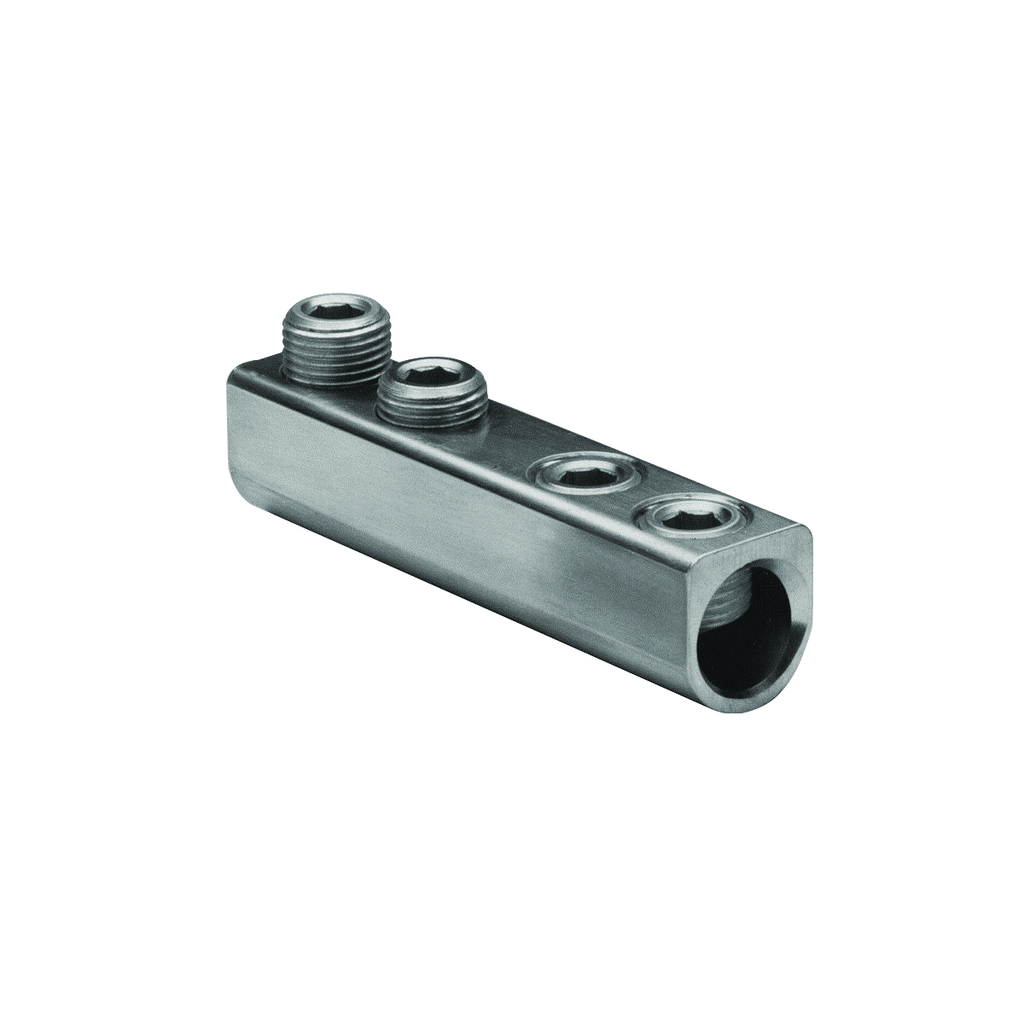

BUR AMS1000 1000-500 DUAL RATED SPL

Specifications

General

• Connector Type: Splice;Reducer
• Hex Size: 9/16
• Installation Torque Recommended in-lb: 600 LBS/in
• Material: Aluminum
• Material - Hardware: Aluminum
• Physical Attribute - Number of Screws: 6
• Physical Attribute - Screw Type: Allen
• Plated: Y
• Plating Type: Tin
• Temperature Rating: 194° F
• UPC: 781810241073
• UPC 12 Digit: 7818102410733

Dimensions

• Dimension - H1 Height inch: 1.88 in
• Dimension - Height fraction: 1-7/8
• Dimension - L Length Overall mm: 221 mm
• Dimension - Length Overall inch: 8.69 in
• Dimension - Width fraction: 1-21/32 in
• Dimension - Width inch: 1.72 in
• Dimension - Width mm: 44 mm

Electrical Ratings

• Rating - Minimum Voltage: 600

Conductor Related

• Conductor - AL Str Run: 500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil;874 kcmil;900 kcmil;954 kcmil;1000 kcmil
• Conductor - AL Str Run Range: 500 kcmil-1000 kcmil
• Conductor - AL Str Tap: 550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil;795 kcmil;800 kcmil;874 kcmil;900 kcmil;954 kcmil;1000 kcmil
• Conductor - AL Str Tap Range: 550 kcmil-1000 kcmil
• Conductor - Copper Solid Run: 22
• Conductor - Copper Solid Run Range: 22
• Conductor - Copper Solid Tap: 22
• Conductor - Copper Solid Tap Range: 22
• Conductor - Copper Str Run: 500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil;800 kcmil;850 kcmil;900 kcmil;1000 kcmil
• Conductor - Copper Str Run Range: 500 kcmil-1000 kcmil
• Conductor - Copper Str Size: 500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil;800 kcmil;850 kcmil;900 kcmil;1000 kcmil
• Conductor - Copper Str Size Range: 500 kcmil-1000 kcmil
• Conductor - Copper Str Tap: 500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil;800 kcmil;850 kcmil;900 kcmil;1000 kcmil
• Conductor - Copper Str Tap Range: 500 kcmil-1000 kcmil

Certifications and Compliance

• Certification - CSA Approved: Yes
• Certification - ETL: No
• Certification - UL Listed Direct Burial: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Industry Standard(s): UL467
• Standards - Industry Standards Met: UL467
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes

Logistics

• Minimum Pack Quantity: 5
