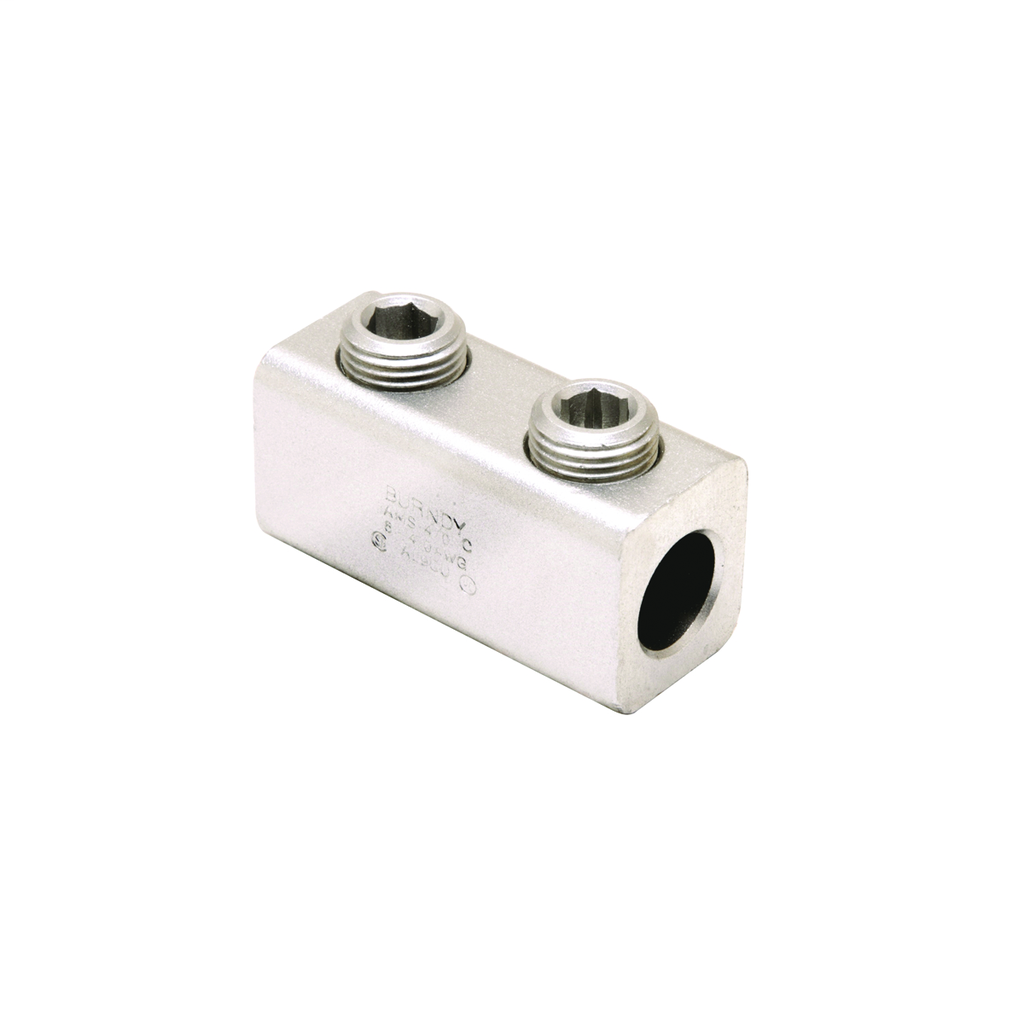

BUR AMS4/0 4/0-6 DUAL RATED SPLICE
Product image thumbnail 0
Product image thumbnail 1
$21.80/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # AMS4/0
North Coast Part # 214110

Specifications

General

  • Application: For Use With Copper And Aluminum Conductors
  • Connector Type: Splice;Reducer
  • Hex Size: 5/16
  • Installation Torque Recommended in-lb: 275 LBS/in
  • Material: Aluminum
  • Material - Hardware: Aluminum
  • Physical Attribute - Number of Screws: 2
  • Physical Attribute - Screw Type: Slot
  • Plated: Y
  • Plating Type: Tin
  • Sub Brand: SPLICER/REDUCER
  • Temperature Rating: 194° F
  • Type: AMS, Dual Rated
  • UPC: 781810241028
  • UPC 12 Digit: 7818102410288

Dimensions

  • Dimension - H1 Height inch: 1.09 in
  • Dimension - Height fraction: 1-3/32
  • Dimension - L Length Overall mm: 59 mm
  • Dimension - Length Overall inch: 2.31 in
  • Dimension - Width fraction: 1 in
  • Dimension - Width inch: 1.00 in
  • Dimension - Width mm: 25 mm

Electrical Ratings

  • Rating - Minimum Voltage: 600

Conductor Related

  • Conductor - AL Str Run: 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - AL Str Run Range: 6 AWG-4/0 AWG
  • Conductor - AL Str Size: 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - AL Str Size Range: 6 AWG-4/0 AWG
  • Conductor - AL Str Tap: 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - AL Str Tap Range: 6 AWG-4/0 AWG
  • Conductor - Copper Solid Run: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - Copper Solid Run Range: 6 AWG-4/0 AWG
  • Conductor - Copper Solid Size: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - Copper Solid Size Range: 6 AWG-4/0 AWG
  • Conductor - Copper Solid Tap: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - Copper Solid Tap Range: 6 AWG-4/0 AWG
  • Conductor - Copper Str Run: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - Copper Str Run Range: 6 AWG-4/0 AWG
  • Conductor - Copper Str Size: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - Copper Str Size Range: 6 AWG-4/0 AWG
  • Conductor - Copper Str Tap: 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - Copper Str Tap Range: 6 AWG-4/0 AWG

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - UL Listed Direct Burial: No
  • Industry Standard(s): UL467
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: EX
  • UL Listed: Yes

Logistics

  • Carton Quantity: 240 EA
  • Minimum Pack Quantity: 1

Overview

UPC 78181024102
GTiN 00781810241028
Finish Tin Plated
Size 2-5/16 IN Length X 1 IN Width X 1-3/32 IN Dimension H1 X 1.28 IN Maximum Dimension H2
Type AMS, Dual Rated
Material Aluminum
Conductor Size 5 AWG
Applications For Use With Copper And Aluminum Conductors
Temperature Rating 194 F
Family Brand Name Burndy
Sub Brand SPLICER/REDUCER
Length 2.31 in
Width 1.00 in
Connection Type Splice;Reducer
Plating Type Tin
Plated? Yes
CSA Yes
