BUR B1659 BW BCB4 500-1/4
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$188.96/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # B1659
North Coast Part # 493063

Features

  • Type BCB-4 Molds Are Used To Connect Horizontal Copper Cable Tap To A Horizontal Copper Bus Bar With The Flat Side Horizontal, Size Range Is 1/0 Through 1000 MCM Concentric Stranded Copper Conductors, Bus Size Range Is From 1/4 X 1 IN Through 1/2 X 1-1/2 IN And Wider, Conductor Type: Concentric Stranded Copper, Recommended Accessories: B40-0319-03 Mold Cleaner For Cartridge Sizes #90 - #500, B38-3922-00 Mold Cleaning Brush, B38-0135-00 Cable Cleaning Brush, Required Tools: B38-0309-00 Flint Ignitor, Bus Bar Size: 1/4 X 1-1/2 IN And Wider, Cartridge Type: Standard

Specifications

  • Buy American Compliant: No
  • Conductor - Copper Str Size: 500 kcmil
  • Conductor - Copper Str Size Range: 500 kcmil
  • Country of Origin: US
  • Dimension - Bus Bar Size Tap Side inch: 1/4" 1-1/2" & Wider Bus Bar
  • Each - Height: 3.625 in
  • Each - Length: 7.9375 in
  • Each - Width: 3.625 in
  • Product Type: Molds
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: BURNDYWeld┬«
  • Application: For Connecting Horizontal Copper Cable Tap To A Horizontal Copper Bus Bar With The Flat Side Horizontal
  • Special Features: Features: Type BCB-4 Molds Are Used To Connect Horizontal Copper Cable Tap To A Horizontal Copper Bus Bar With The Flat Side Horizontal, Size Range Is 1/0 Through 1000 MCM Concentric Stranded Copper Conductors, Bus Size Range Is From 1/4 X 1 IN Through 1/2 X 1-1/2 IN And Wider, Conductor Type: Concentric Stranded Copper, Recommended Accessories: B40-0319-03 Mold Cleaner For Cartridge Sizes #90 - #500, B38-3922-00 Mold Cleaning Brush, B38-0135-00 Cable Cleaning Brush, Required Tools: B38-0309-00 Flint Ignitor, Bus Bar Size: 1/4 X 1-1/2 IN And Wider, Cartridge Type: Standard
  • Sub Brand: BURNDYWELD

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78181039845

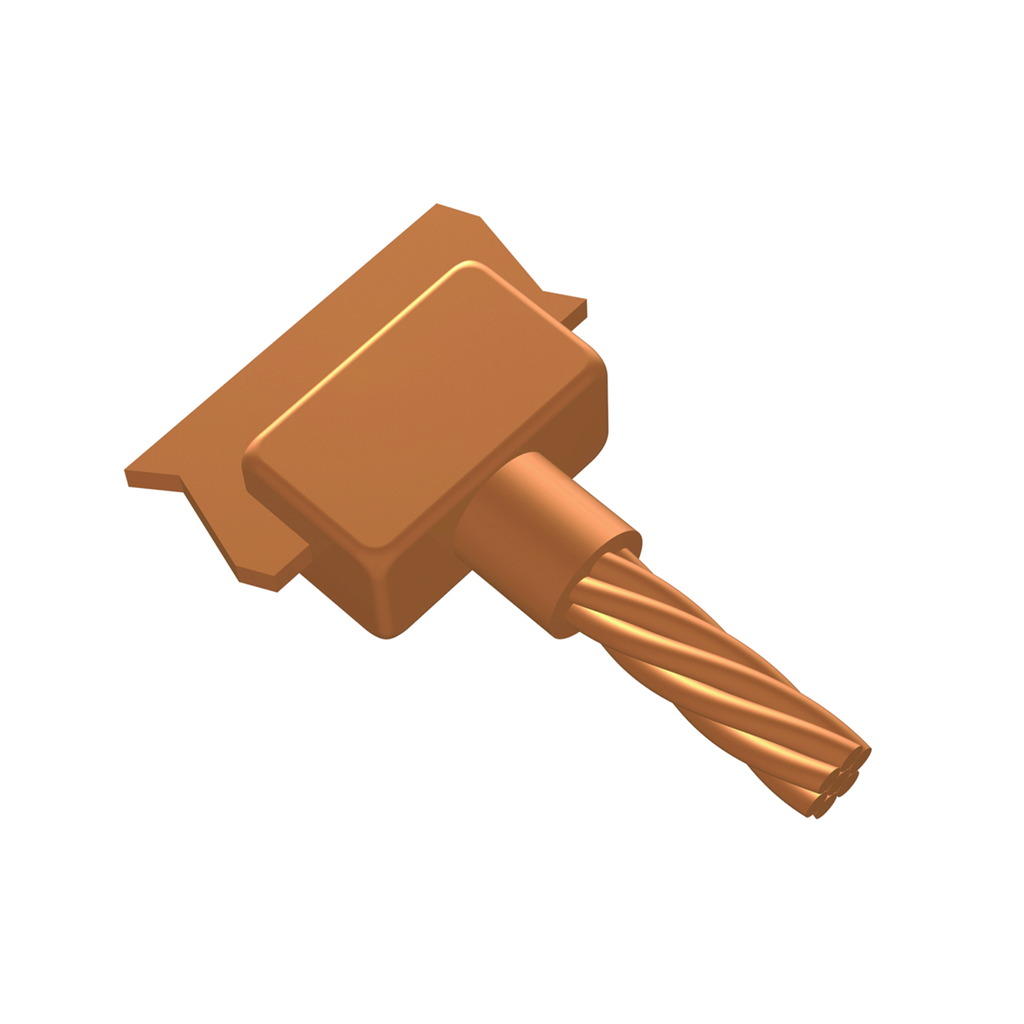

Item Long Description Mold, Horizontal Cable Tap To Horizontal Bus, 500 kcmil, 1/4" 1-1/2" & Wider Bus Bar, 200 Weld Metal.
GTiN 00781810398456
Family Brand Name Hubbell
Conductor Size 500 MCM
Conductor Type CU C Str-Size
