BUR B243 BW BCC2 TEE 4/0R - 2/0T
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$173.72/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # B243
North Coast Part # 15110

Features

  • Type BCC-2 Molds Are Used To Join Horizontal Cable Tap To A Horizontal Run Cable, Size Range Is 6 AWG Through 750 KCMIL Concentric Stranded Copper Conductors, Conductor Type: Concentric Stranded Copper, Recommended Accessories: B40-0319-03 Mold Cleaner For Cartridge Sizes #90 - #500, B38-3922-00 Mold Cleaning Brush, B38-0135-00 Cable Cleaning Brush, B38-0330-00 Cable Clamp, Required Tools: B38-0309-00 Flint Ignitor, Cartridge Type: Standard

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Run: 4/0 AWG
  • Conductor - Copper Str Run Range: 4/0 AWG
  • Conductor - Copper Str Tap: 2/0 AWG
  • Conductor - Copper Str Tap Range: 2/0 AWG
  • Country of Origin: US
  • Each - Height: 4 in
  • Each - Length: 8 in
  • Each - Width: 4 in
  • Product Type: Molds
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Application: For Joining Horizontal Cable Tap To A Horizontal Run Cable
  • Special Features: Type BCC-2 Molds Are Used To Join Horizontal Cable Tap To A Horizontal Run Cable, Size Range Is 6 AWG Through 750 KCMIL Concentric Stranded Copper Conductors, Conductor Type: Concentric Stranded Copper, Recommended Accessories: B40-0319-03 Mold Cleaner For Cartridge Sizes #90 - #500, B38-3922-00 Mold Cleaning Brush, B38-0135-00 Cable Cleaning Brush, B38-0330-00 Cable Clamp, Required Tools: B38-0309-00 Flint Ignitor, Cartridge Type: Standard
  • Sub Brand: BURNDYWELD

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181037864

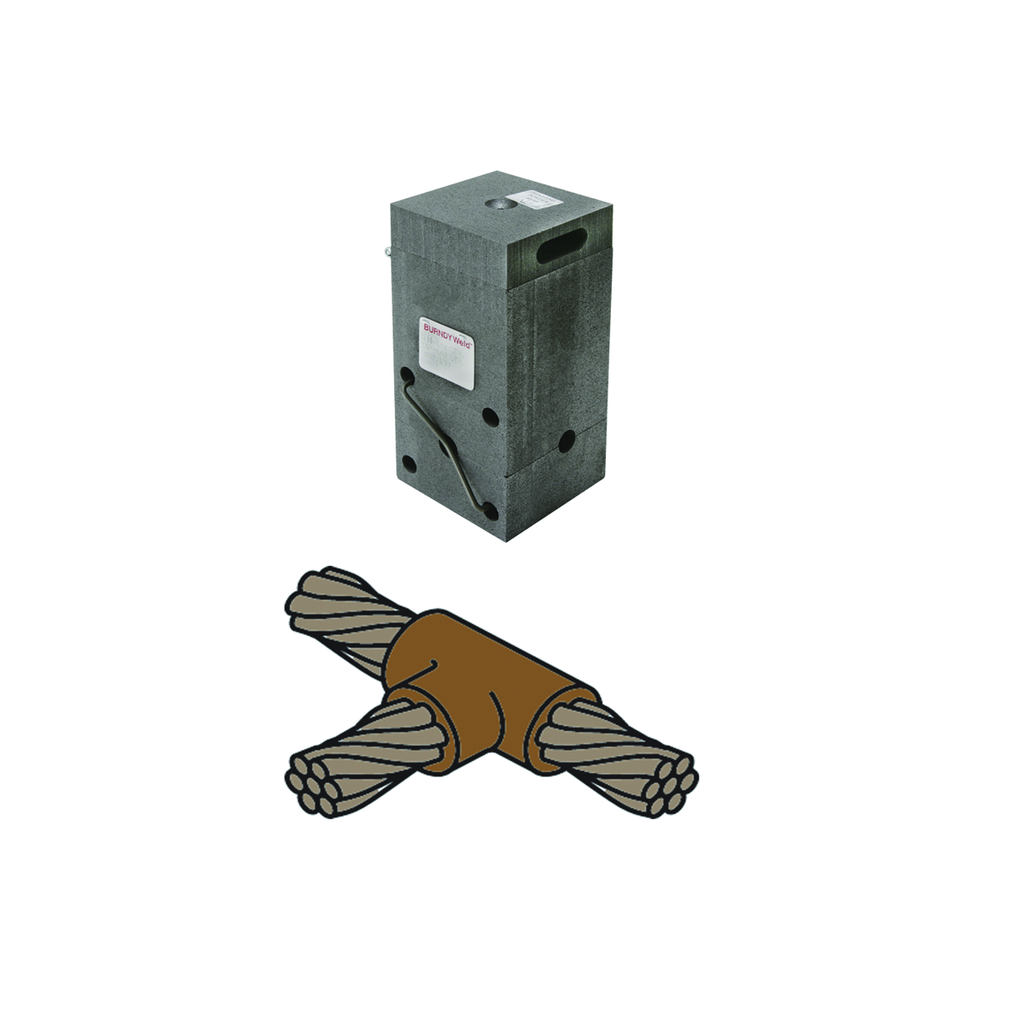

Item Long Description Mold, Horizontal Cable Tap to Horizontal Cable Run, 4/0 AWG (Run), 2/0 AWG (Tap), 90 Weld Metal.
GTiN 00781810378649
Family Brand Name Hubbell
CSA No
