BUR B506 BW BCR1 2/0 TO 5/8
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$229.88/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # B506
North Coast Part # 17141

Features

  • Type BCR-1 Molds Are Used To Terminate Horizontal Copper Cable At The Top Of A Vertical Ground Rod, Size Range Is 6 AWG Through 1000 KCMIL Concentric Stranded Copper Conductors, 1/2 IN Through 1 IN For The Ground Rod, Conductor Type: Concentric Stranded Copper, Ground Rod Size: 5/8 IN, Recommended Accessories: B38-3922-00 Mold Cleaning Brush, B38-0135-00 Cable Cleaning Brush, B38-0304-00 File, B38-0330-00 Cable Clamp, Cartridge Type: Standard

Specifications

  • Conductor - Copper Str Tap: 2/0 AWG
  • Conductor - Rod Size: 5/8 in
  • Country of Origin: US
  • Each - Height: 0.000 in
  • Each - Length: 0.000 in
  • Each - Width: 0.000 in
  • Product Type: Molds
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: BURNDYWeld┬«
  • Sub Brand: BURNDYWELD

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181038393

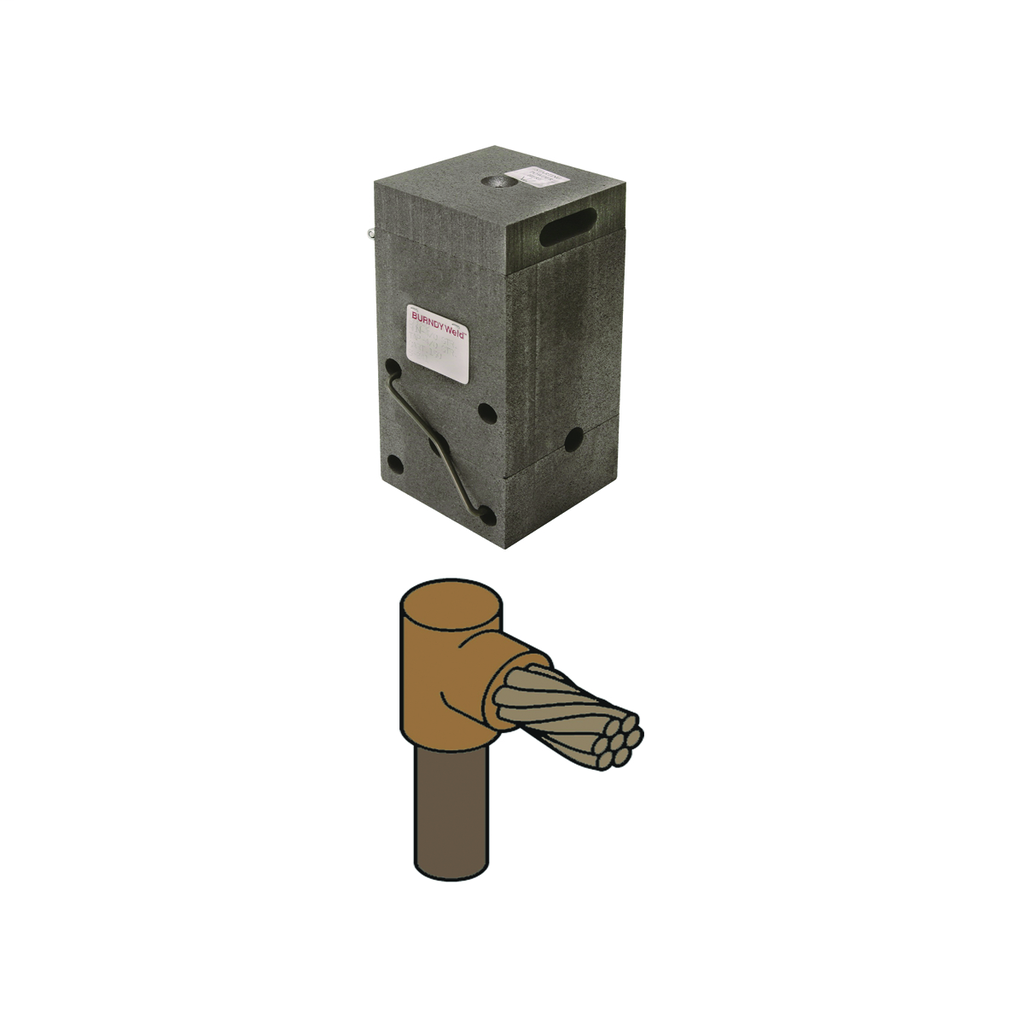

Item Long Description Mold, Horizontal Cable Terminal to Ground Rod, 2/0 AWG, 90 Weld Metal, 5/8" Ground Rod.
GTiN 00781810383933
Type BCR-1
Conductor Size Tap: 2/0 AWG
Applications For Terminating Horizontal Copper Cable At The Top Of A Vertical Ground Rod
Family Brand Name Burndy
Sub Brand BURNDYWeld
CSA No
