BUR B549 BW BCR2 3/0 TO 5/8

Features

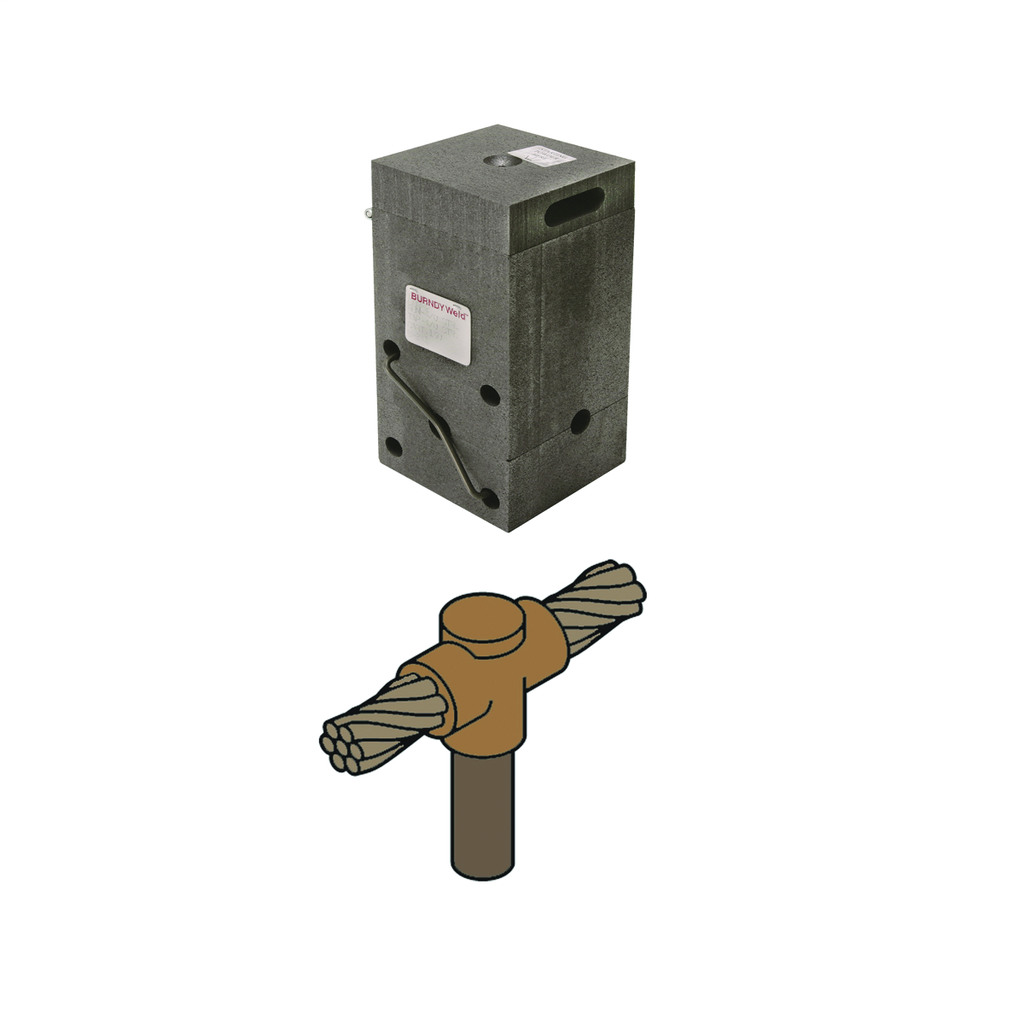

• Type BCR-2 Molds Are Used To Join Horizontal Through Copper Cable To The Top Of A Vertical Ground Rod, Size Range Is 6 AWG Through 1000 KCMIL Concentric Stranded Copper Conductors, 1/2 IN Through 1 IN For The Ground Rod, Ground Rod Size: 5/8 IN, Conductor Type: Concentric Stranded Copper, Cartridge Type: Standard, Recommended Accessories: B38-3922-00 Mold Cleaning Brush, B38-0135-00 Cable Cleaning Brush, B38-0304-00 File, B38-0330-00 Cable Clamp

Specifications

• Buy American Compliant: No
• Conductor - Copper Str Tap: 3/0 AWG
• Conductor - Rod Size: 5/8 in
• Country of Origin: US
• Each - Height: 3.625 in
• Each - Length: 7.9375 in
• Each - Width: 3.625 in
• Product Type: Molds
• Show Add To ProjectList: Yes
• Standards - RoHS Compliance Status: CM
• Trade Name: BURNDYWeld®
• Application: For Joining Horizontal Through Copper Cable To The Top Of A Vertical Ground Rod
• Special Features: Features: Type BCR-2 Molds Are Used To Join Horizontal Through Copper Cable To The Top Of A Vertical Ground Rod, Size Range Is 6 AWG Through 1000 KCMIL Concentric Stranded Copper Conductors, 1/2 IN Through 1 IN For The Ground Rod, Ground Rod Size: 5/8 IN, Conductor Type: Concentric Stranded Copper, Cartridge Type: Standard, Recommended Accessories: B38-3922-00 Mold Cleaning Brush, B38-0135-00 Cable Cleaning Brush, B38-0304-00 File, B38-0330-00 Cable Clamp
• Sub Brand: BURNDYWELD

Certifications

• CSA Approved: No
• cULus: No
• ETL: No
• UL Recognized: No
• EU RoHS Indicator: Yes
