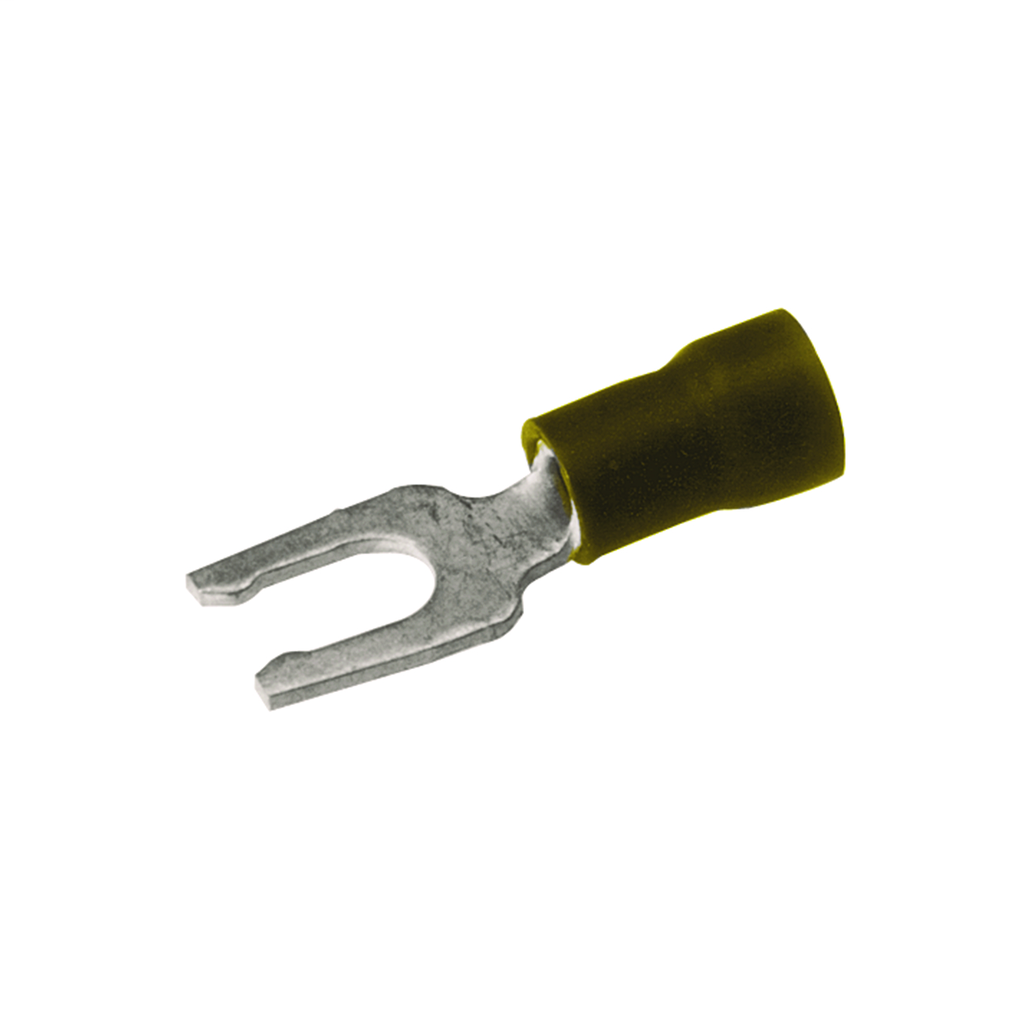

BUR BA10EL10 10 FORK-LOK, 12-10, TP
Product image thumbnail 0
Product image thumbnail 1
$55.57/c (100 ea)
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BA10EL10
North Coast Part # 552891

Specifications

General

  • Application: For Fast Installation And Security
  • Color Code: Yellow
  • Connector Type: Terminal - Fork
  • Feature - Barrel Style: Shrouded
  • Insulation: Y
  • Insulation Type: Vinyl
  • Material: Copper
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Type: Locking Fork
  • Plated: Y
  • Plating Type: Tin
  • Sub Brand: VINYLUG
  • Trade Name: VINYLUG™
  • Type: BA-EL, Locking
  • UPC: 781810026908

Dimensions

  • Dimension - Hole Size fraction: 15/79
  • Dimension - Hole Size inch: 0.19 in
  • Dimension - Length Overall inch: 1.16 in
  • Dimension - Pad Width inch: 0.36 in
  • Dimension - Stud Size inch: #10
  • Dimension - Z inch: 0.31 in

Conductor Related

  • Conductor - Copper Str Size: 12 AWG;10 AWG
  • Conductor - Copper Str Size Range: 12 AWG-10 AWG
  • Conductor Type: CU C Str-Size

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 500

Overview

UPC 78181002690
GTiN 00781810026908
Type BA-EL, Locking
Material Copper
Stud Size 0.164-0.19 in
Applications For Fast Installation And Security
Cable Size 12 - 10 AWG
Family Brand Name Burndy
Sub Brand VINYLUG
Length 1.16 in
Insulation Type Vinyl
Conductor Size 12 AWG
Connection Type Terminal - Fork
Plating Type Tin
Conductor Type CU C Str-Size
Plated? Yes
CSA Yes
Color Coding Yellow
