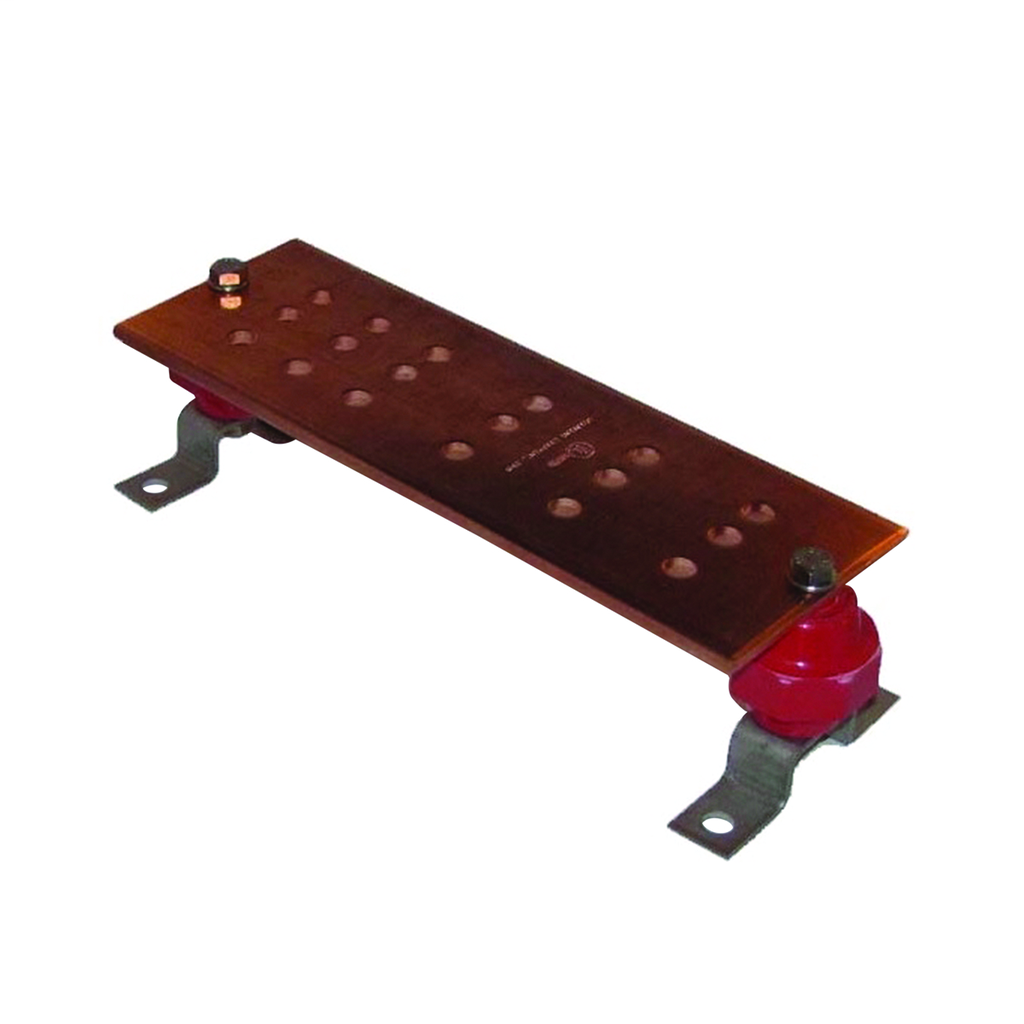

BUR BBB14412E BUSBAR 1/4X4X12 18HOL
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$115.65/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BBB14412E
North Coast Part # 683638

Features

  • Copper busbar is used in a variety of applications. UL Listed for grounding. Can be used as a common ground point and can also be used in "power" applications as well.
  • Bare Copper Busbar, UL Listed For Grounding, Available In Many Sizes And Hole Patterns, Brackets And Insulators Included With Most Styles, Also Available In Undrilled, Horizontal And Vertical Versions, Busbar Is Used In A Variety Of Applications, Can Be Used As A Common Ground Point And Power Applications As Well, Dimension K: 0.44 IN, Number Of Holes: 18, With Insulator-bracket: Yes, Dimension F1: 2 IN, Dimension E1: 0.75 IN, Dimension F2: 1.25 IN

Specifications

  • Buy American Compliant: Yes
  • Country of Origin: US
  • Dimension - Bar Length inch: 12 in
  • Dimension - Bar Length mm: 305 mm
  • Dimension - Bar Thickness inch: 0.25 in
  • Dimension - Bar Thickness mm: 6 mm
  • Dimension - Bar Width inch: 4 in
  • Dimension - Bar Width mm: 102 mm
  • Dimension - Hole Size inch: 0.44 in
  • Dimension - Hole Size mm: 11 mm
  • Dimension - Width fraction: 4 in
  • Dimension - Width inch: 4.00 in
  • Each - Height: 3.22 in
  • Each - Length: 12.00 in
  • Each - Width: 4.00 in
  • Physical Attribute - Number of Holes: 18
  • Product Type: Mechanical
  • Standards - RoHS Compliance Status: CM
  • Application: For Used As A Common Ground Point And Power Applications
  • Special Features: Features: Bare Copper Busbar, UL Listed For Grounding, Available In Many Sizes And Hole Patterns, Brackets And Insulators Included With Most Styles, Also Available In Undrilled, Horizontal And Vertical Versions, Busbar Is Used In A Variety Of Applications, Can Be Used As A Common Ground Point And Power Applications As Well, Dimension K: 0.44 IN, Number Of Holes: 18, With Insulator-bracket: Yes, Dimension F1: 2 IN, Dimension E1: 0.75 IN, Dimension F2: 1.25 IN
  • Sub Brand: BUS BAR
  • Type: BBB
  • IGS 3D Model Asset Reference URL 3: https://hubbellcdn.com/igs/BBB14412E_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/BBB14412E_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/BBB14412E_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: Yes
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810489352
Length 12 Inch
Size 4 IN Width X 1/4 IN Thickness
Type BBB
Material Copper
Applications For Used As A Common Ground Point And Power Applications
Family Brand Name Burndy
Sub Brand Bus Bar
Product UPC 78181048935
Width 4.00 in
Hole Size 11 mm
CSA No
Height 3.22 Inch
Country of Origin USA
