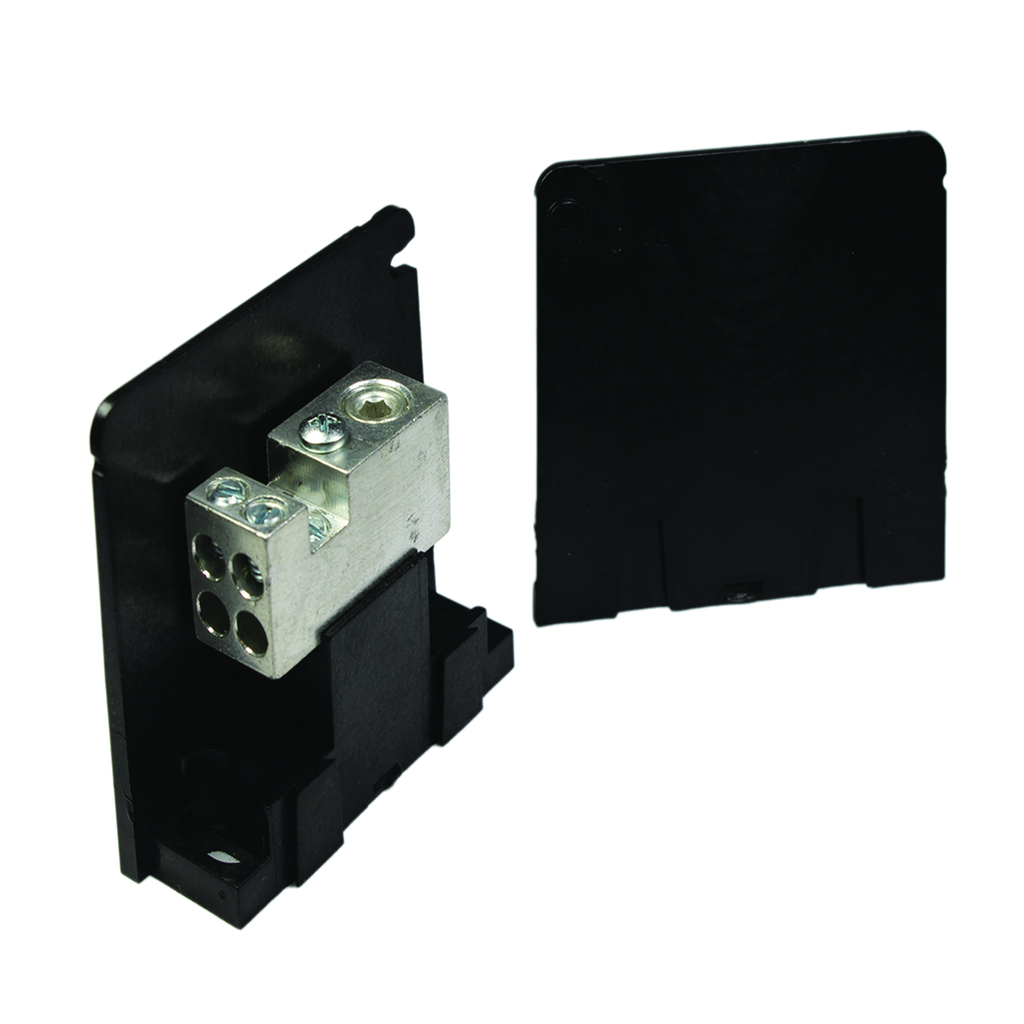

BUR BDASHC112/01 DIST BLK 2/0-14R 1
Product image thumbnail 0
Product image thumbnail 1
$13.96/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BDASHC112/01
North Coast Part # 1018471

Specifications

General

  • Application: Industrial control feeder, HVAC system and wire ways
  • Insulation: Y
  • Material: Aluminum
  • Number Of Poles: Adder
  • Plated: N
  • Plating Type: Tin
  • Sub Brand: VERSI-POLE
  • Temperature Rating: 194
  • Trade Name: VERSIPOLEā„¢
  • Type: BDA
  • UPC: 781810645475
  • UPC 12 Digit: 7818106454755

Dimensions

  • Dimension - Height inch: 2.81 in
  • Dimension - L Length Overall mm: 78 mm
  • Dimension - Length Overall inch: 3.08 in
  • Dimension - Width inch: 0.93 in
  • Dimension - Width mm: 24 mm

Electrical Ratings

  • Amperage Rating: 175 A
  • Rating - Minimum Voltage: 600

Conductor Related

  • Conductor - AL Str Run: 12;10;8;6;4;3;2;1;1/0;2/0
  • Conductor - AL Str Run Range: 12-2/0
  • Conductor - AL Str Tap: 12;10;8;6;4;3;2;1;1/0;2/0
  • Conductor - AL Str Tap Range: 12-2/0
  • Conductor - Copper Str Run: 14;12;10;9;8;7;6;5;4;3;2;1;1/0;2/0
  • Conductor - Copper Str Run Range: 14-2/0
  • Conductor - Copper Str Tap: 14;12;10;9;8;7;6;5;4;3;2;1;1/0;2/0
  • Conductor - Copper Str Tap Range: 14-2/0

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Carton Quantity: 36 EA
  • Minimum Pack Quantity: 1

Overview

UPC 78181064547
GTiN 00781810645475
Family Brand Name Hubbell
Length 3.08 in
Width 0.93 in
Material Aluminum
Height 2.81 in
Plating Type Tin
Plated? No
Amperage 175 Amp
CSA No
Number of Poles Adder
