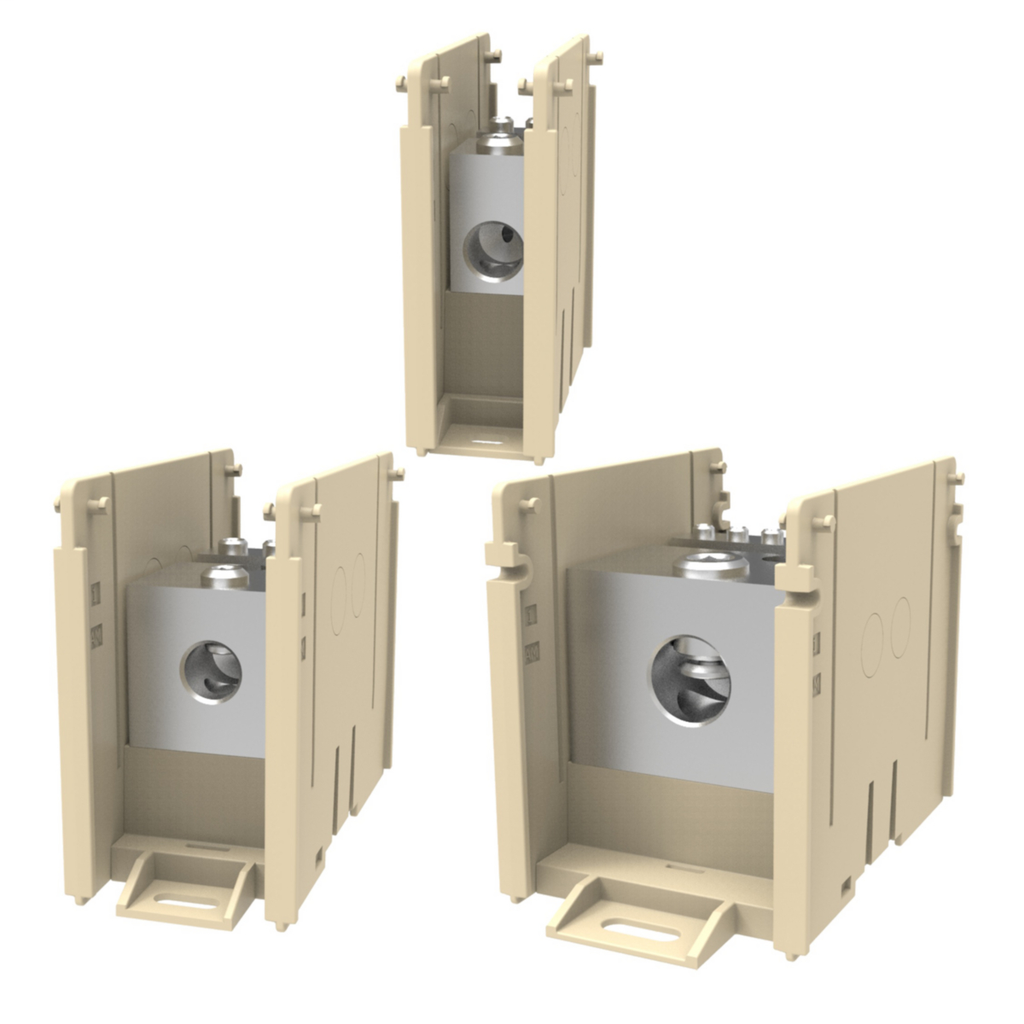

BUR BDBLCS4K3 Three pole Open Styl
$364.64/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BDBLCS4K3
North Coast Part # 1435774

Specifications

General

  • Application: VERSI-POLE Power Distribution Blocks are designed to provide modular solutions to power distribution applications.
  • Insulation: Y
  • Material: Aluminum
  • Number Of Poles: 3
  • Plated: Y
  • Plating Type: Tin
  • Sub Brand: VERSIPOLE
  • Temperature Rating: 194° F
  • Trade Name: VERSIPOLE™
  • Type: BDB
  • UPC: 781810676172
  • UPC 12 Digit: 7818106761722

Dimensions

  • Dimension - Height inch: 4.15
  • Dimension - L Length Overall mm: 231
  • Dimension - Length Overall inch: 9.09

Electrical Ratings

  • Amperage Rating: 620 A
  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 600 V

Conductor Related

  • Conductor - AL Str Run Range: 6 AWG - 350 kcmil
  • Conductor - AL Str Tap Range: 14 AWG - 2/0 AWG
  • Conductor - Copper Str Run Range: 6 AWG - 350 kcmil
  • Conductor - Copper Str Tap Range: 14 AWG - 2/0 AWG

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - cULus: Yes
  • Standards - RoHS Compliance Status: CM

Logistics

  • Minimum Pack Quantity: 1

Conductor Type

  • AL C Str-Run
  • CU C Str-Run
  • AL C Str-Tap
  • CU C Str-Tap

Overview

UPC 78181067617
GTiN 00781810676172
Type BDB
Material Aluminum
Applications VERSI-POLE Power Distribution Blocks are designed to provide modular solutions to power distribution applications.
Temperature Rating 194 F
Family Brand Name Burndy
Sub Brand VERSIPOLE
Length 9.09 in
Height 4.15 in
Plating Type Tin
Plated? Yes
Amperage 620 Amp
CSA No
Number of Poles 3 Pole
Max Voltage 600 V
