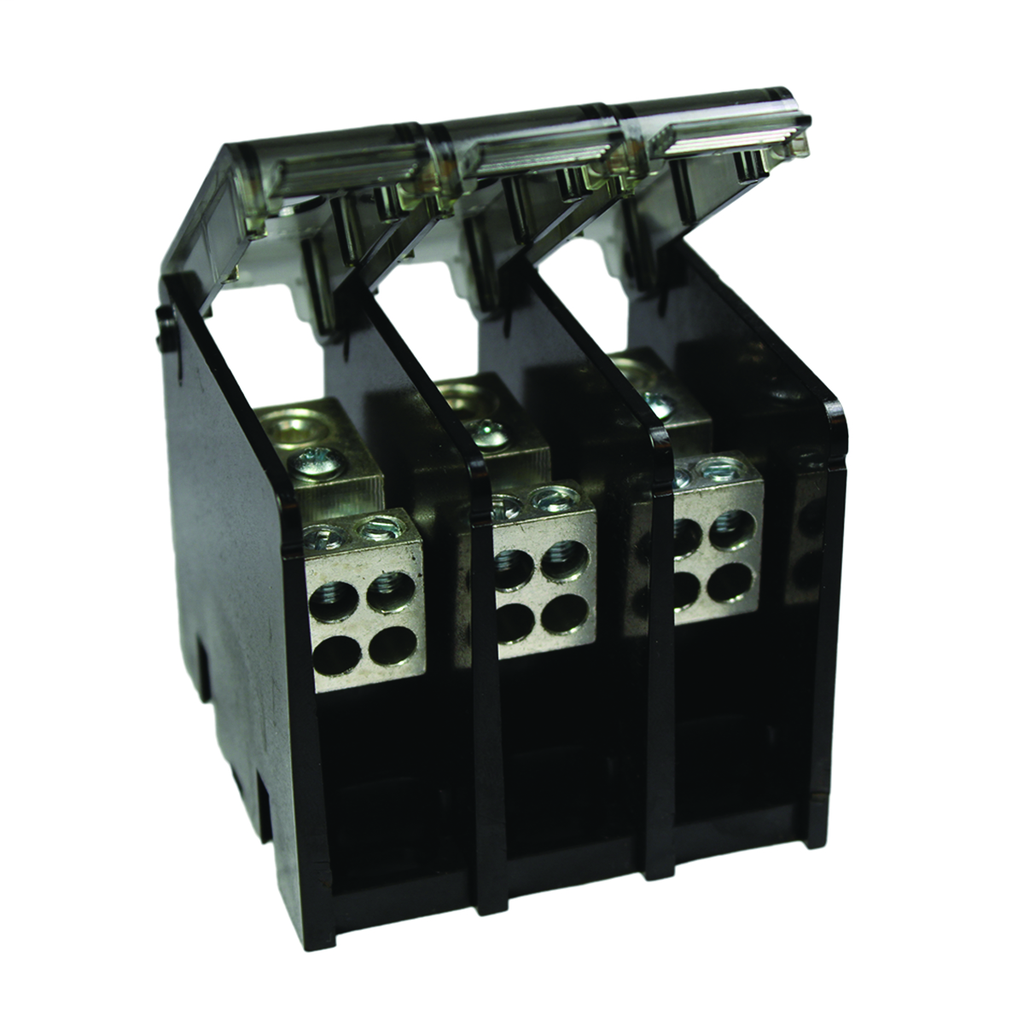

BUR BDBLHC225003 500-4-3P-500-4 SEC
Product image thumbnail 0
Product image thumbnail 1
$247.45/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BDBLHC225003
North Coast Part # 999656

Specifications

General

  • Application: Industrial control feeder, HVAC system and wire ways
  • Insulation: Y
  • Material: Aluminum
  • Number Of Poles: 3
  • Plated: Y
  • Plating Type: Tin
  • Sub Brand: VERSI-POLE
  • Temperature Rating: 194° F
  • Trade Name: VERSIPOLE™
  • Type: BDB
  • UPC: 781810645987
  • UPC 12 Digit: 7818106459877

Dimensions

  • Dimension - Height inch: 3.55
  • Dimension - L Length Overall mm: 200
  • Dimension - Length Overall inch: 7.89
  • Dimension - Width inch: 5.70 in
  • Dimension - Width mm: 145 mm

Electrical Ratings

  • Amperage Rating: 760 A
  • Rating - Minimum Voltage: 600

Conductor Related

  • Conductor - AL Str Run: 4;3;2;1;1/0;2/0;3/0;4/0;250;266.8;300;336.4;350;397.5;400;450;477;500
  • Conductor - AL Str Run Range: 4-500
  • Conductor - AL Str Tap: 4;3;2;1;1/0;2/0;3/0;4/0;250;266.8;300;336.4;350;397.5;400;450;477;500
  • Conductor - AL Str Tap Range: 4-500
  • Conductor - Copper Str Run: 4;3;2;1;1/0;2/0;3/0;4/0;250;300;350;400;450;500
  • Conductor - Copper Str Run Range: 4-500
  • Conductor - Copper Str Tap: 4;3;2;1;1/0;2/0;3/0;4/0;250;300;350;400;450;500
  • Conductor - Copper Str Tap Range: 4-500

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Carton Quantity: 6 EA
  • Minimum Pack Quantity: 1

Conductor Type

  • AL C Str-Run
  • CU C Str-Run
  • AL C Str-Tap
  • CU C Str-Tap

Overview

UPC 78181064598
GTiN 00781810645987
Family Brand Name Burndy
Length 7.89 in
Width 5.70 in
Type BDB
Material Aluminum
Applications Industrial control feeder, HVAC system and wire ways
Height 3.55 in
Plating Type Tin
Temperature Rating 194 F
Plated? Yes
Amperage 760 Amp
CSA No
Number of Poles 3 Pole
Sub Brand VERSI-POLE
