BUR BDCSHC142/01 2/0-14-1P-4-14 SEC

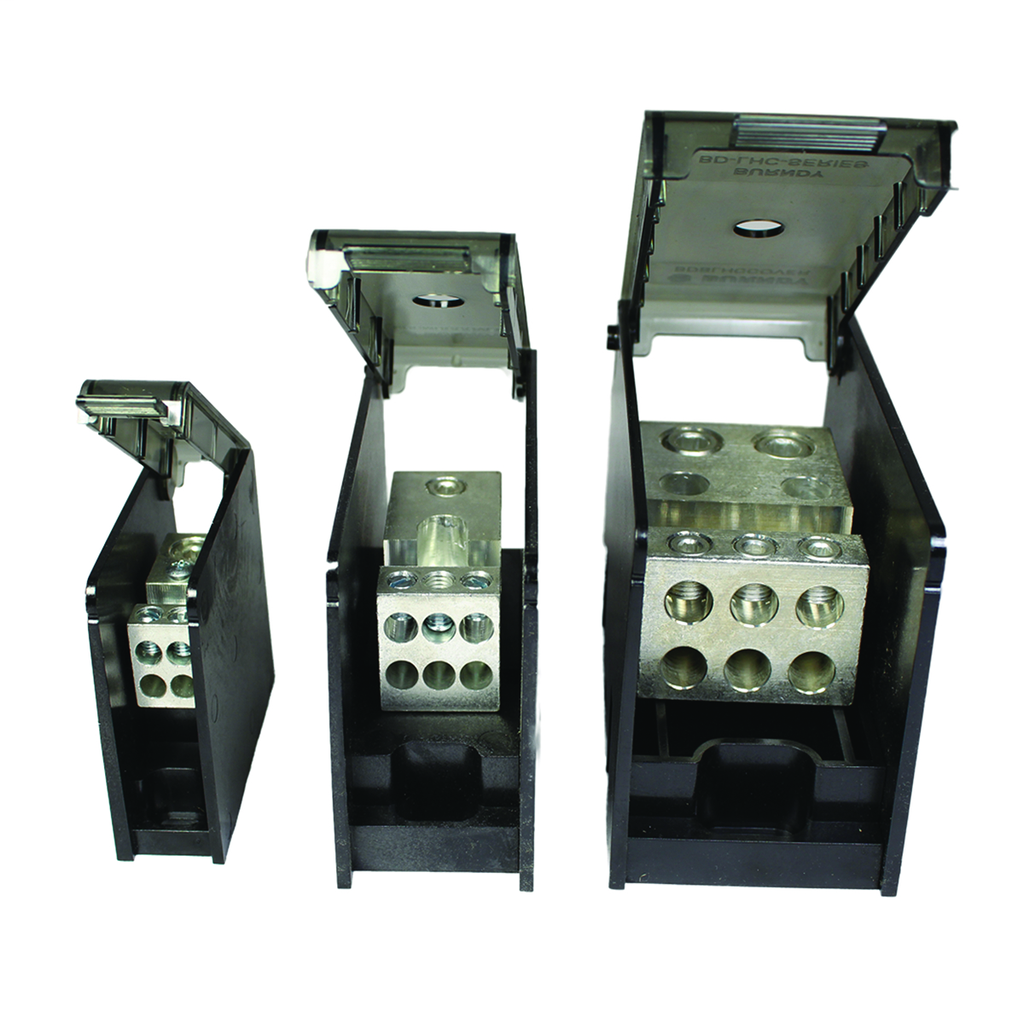

Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$27.96/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BDCSHC142/01
North Coast Part # 999688

Features

  • Provided capability to create as many poles as required; Up to 30 tap conductor accommodated

Specifications

  • Conductor - AL Str Run: 12;10;8;6;4;3;2;1;1/0;2/0
  • Conductor - AL Str Run Range: 12-2/0
  • Conductor - AL Str Tap: 12;10;8;6;4
  • Conductor - AL Str Tap Range: 12-4
  • Conductor - Copper Str Run: 14;12;10;9;8;7;6;5;4;3;2;1;1/0;2/0
  • Conductor - Copper Str Run Range: 14-2/0
  • Conductor - Copper Str Tap: 14;12;10;9;8;7;6;5;4
  • Conductor - Copper Str Tap Range: 14-4
  • Country of Origin: MX
  • Dimension - Height inch: 2.81 in
  • Dimension - L Length Overall mm: 78 mm
  • Dimension - Length Overall inch: 3.08 in
  • Dimension - Width inch: 1.05 in
  • Dimension - Width mm: 27 mm
  • Each - Height: 2.81 in
  • Each - Length: 3.08 in
  • Each - Width: 1.05 in
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Rating - Minimum Voltage: 600
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Trade Name: VERSIPOLEā„¢
  • Sub Brand: VERSI-POLE

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181064616
Item Long Description Versipole, AWG 14-2/0 (Run), AWG 14-4 (Tap).
GTiN 00781810646168
Type BDC
Material Aluminum
Applications VERSI-POLE Power Distribution Blocks are designed to provide modular solutions to power distribution applications.
Temperature Rating 194
Family Brand Name Burndy
Sub Brand VERSI-POLE
Length 3.08 in
Width 1.05 in
Height 2.81 in
Plating Type Unplated
Plated? No
Amperage 175 Amp
CSA No
Number of Poles 1 Pole
