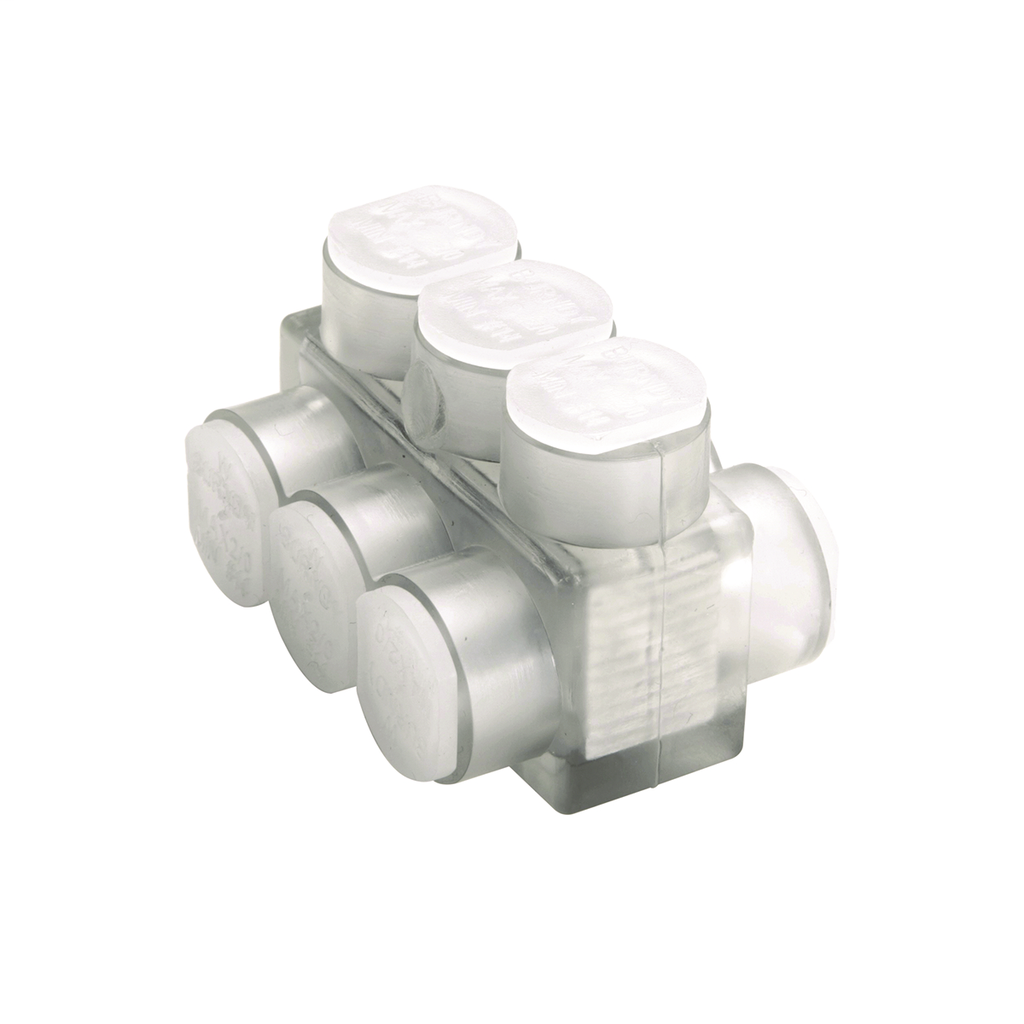

BUR BIBD2/02 2/0-14 TWO SIDED UNITA

Features

• Clear Plastisol covered AL6061-T6 aluminum body, Clear Plastisol

Specifications

• Buy American Compliant: Yes
• Conductor - AL Str Size: 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG
• Conductor - AL Str Size Range: 8 AWG-2/0 AWG
• Conductor - Copper Str Size: 14 AWG;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 Str
• Conductor - Copper Str Size Range: 14 AWG - 2/0 AWG
• Country of Origin: US
• Dimension - Height fraction: 1.375 in
• Dimension - Height inch: 1.38 in
• Dimension - L Length Overall mm: 39 mm
• Dimension - Length Overall inch: 1.52 in
• Dimension - Width fraction: 1-14/25 in
• Dimension - Width inch: 1.56 in
• Dimension - Width mm: 40 mm
• Each - Height: 1.38 in
• Each - Length: 1.52 in
• Each - Width: 1.56 in
• Hex Key: 3/16
• Industry Standard(s): UL 486A-486B
• Insulation Type: Plastisol
• Physical Attribute - Number of Screws: 2
• Physical Attribute - Screw Type: Allen
• Physical Attribute - Socket Size: 0.19
• Plated: N
• Plating Type: Unplated
• Product Type: Mechanical
• Rating - Minimum Voltage: 600
• Show Add To ProjectList: Yes
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: CM
• Trade Name: UNITAP™
• Application: For Indoor Use Only, Copper Or Stranded Aluminum
• Special Features: Clear Plastisol covered AL6061-T6 aluminum body, Clear Plastisol
• Standard: UL 486A-486B
• Sub Brand: UNITAP
• Temperature Rating: 194
• Type: BIBD, Multi-Port
• IGS 3D Model Asset Reference URL 1: https://hubbellcdn.com/igs/BIBD202_MODEL-IGES.zip
• PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/BIBD202_MODEL-PDF.pdf
• STEP 3D Model Asset Reference URL 3: https://hubbellcdn.com/step3dfile/BIBD202_MODEL-STEP.zip

Certifications

• CSA Approved: Yes
• cULus: No
• ETL: No
• UL Listed Direct Burial: No
• UL Recognized: No
• EU RoHS Indicator: Yes
