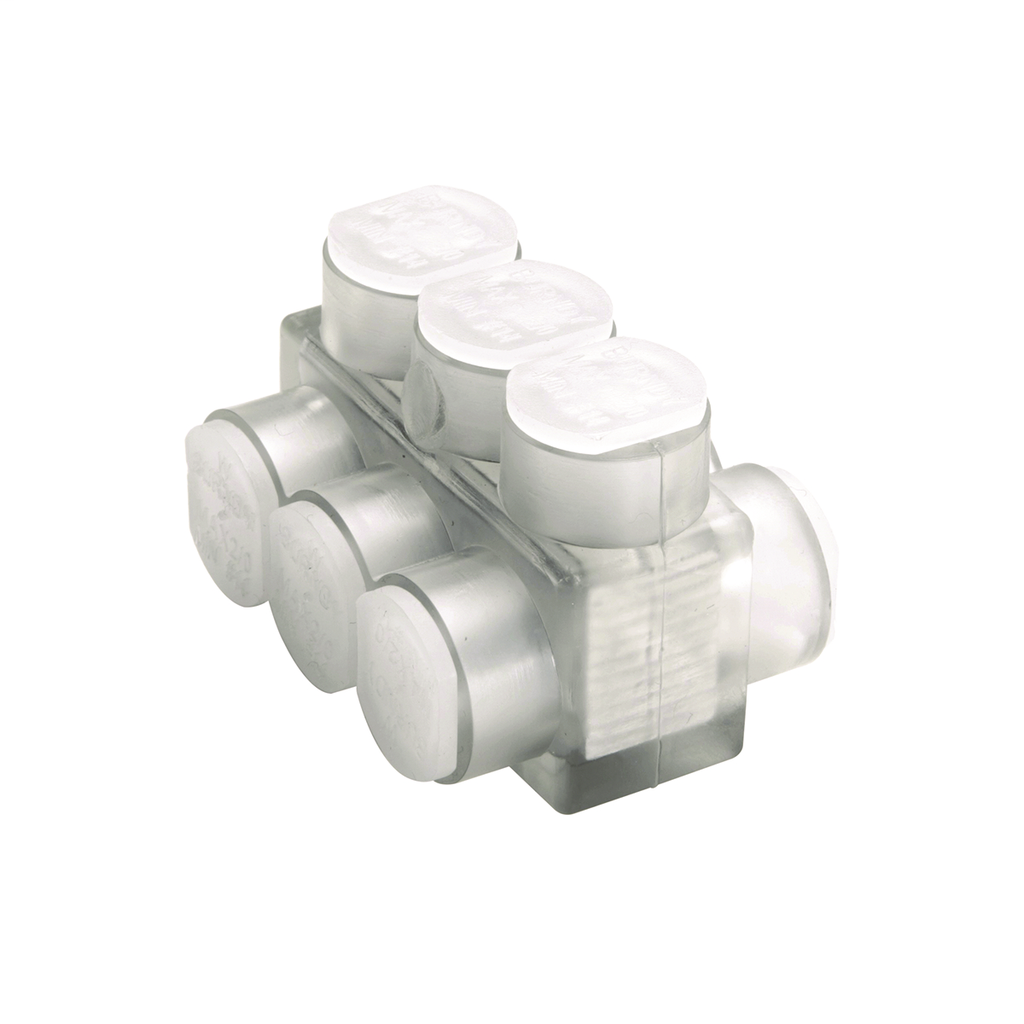

BUR BIBD2/04 2/0-14 TWO SIDED UNITA
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$26.78/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BIBD2/04
North Coast Part # 69916

Features

  • Clear Plastisol covered AL6061-T6 aluminum body, Clear Plastisol

Specifications

  • Buy American Compliant: Yes
  • Conductor - AL Str Size: 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG
  • Conductor - AL Str Size Range: 8 AWG - 2/0 AWG
  • Conductor - Copper Str Size: #14;12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 Str
  • Conductor - Copper Str Size Range: 14 AWG - 2/0 AWG
  • Country of Origin: US
  • Dimension - Height fraction: 1.375 in
  • Dimension - Height inch: 1.38 in
  • Dimension - L Length Overall mm: 73 mm
  • Dimension - Length Overall inch: 2.86 in
  • Dimension - Width fraction: 1-14/25 in
  • Dimension - Width inch: 1.56 in
  • Dimension - Width mm: 40 mm
  • Each - Height: 1.38 in
  • Each - Length: 2.86 in
  • Each - Width: 1.56 in
  • Hex Key: 3/16
  • Industry Standard(s): UL 486A-486B
  • Insulation Type: Plastisol
  • Physical Attribute - Number of Screws: 4
  • Physical Attribute - Screw Type: Allen
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Rating - Minimum Voltage: 600
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: CM
  • Trade Name: UNITAP™
  • Application: For Indoor Use Only, Copper Or Stranded Aluminum
  • Special Features: Clear Plastisol covered AL6061-T6 aluminum body, Clear Plastisol
  • Standard: UL 486A-486B
  • Sub Brand: UNITAP
  • Temperature Rating: 194
  • Type: BIBD, Multi-Port
  • IGS 3D Model Asset Reference URL 1: https://hubbellcdn.com/igs/BIBD204_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/BIBD204_MODEL-PDF.pdf

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810223956
Size 1.25 IN Height X 1.56 IN Width X 2.86 IN Length
Type BIBD, Multi-Port, Two Side
Material Aluminum
Conductor Size 14-2/0 AWG
Applications Indoor use, Copper or Stranded Aluminum
Connection Type Screw
Temperature Rating 90 C
Family Brand Name Burndy
Number of Ports 4
Blade Dimensions 2.86 in L x 1.56 in W x 1-1/4 in H
Sub Brand Unitap
Product UPC 78181022395
Length 2.86 Inch
Width 1.56 in
Insulation Type Plastisol
Height 1.38 Inch
Plating Type Unplated
Plated? No
CSA Yes
Country of Origin USA
Overall Length 2.86 in
