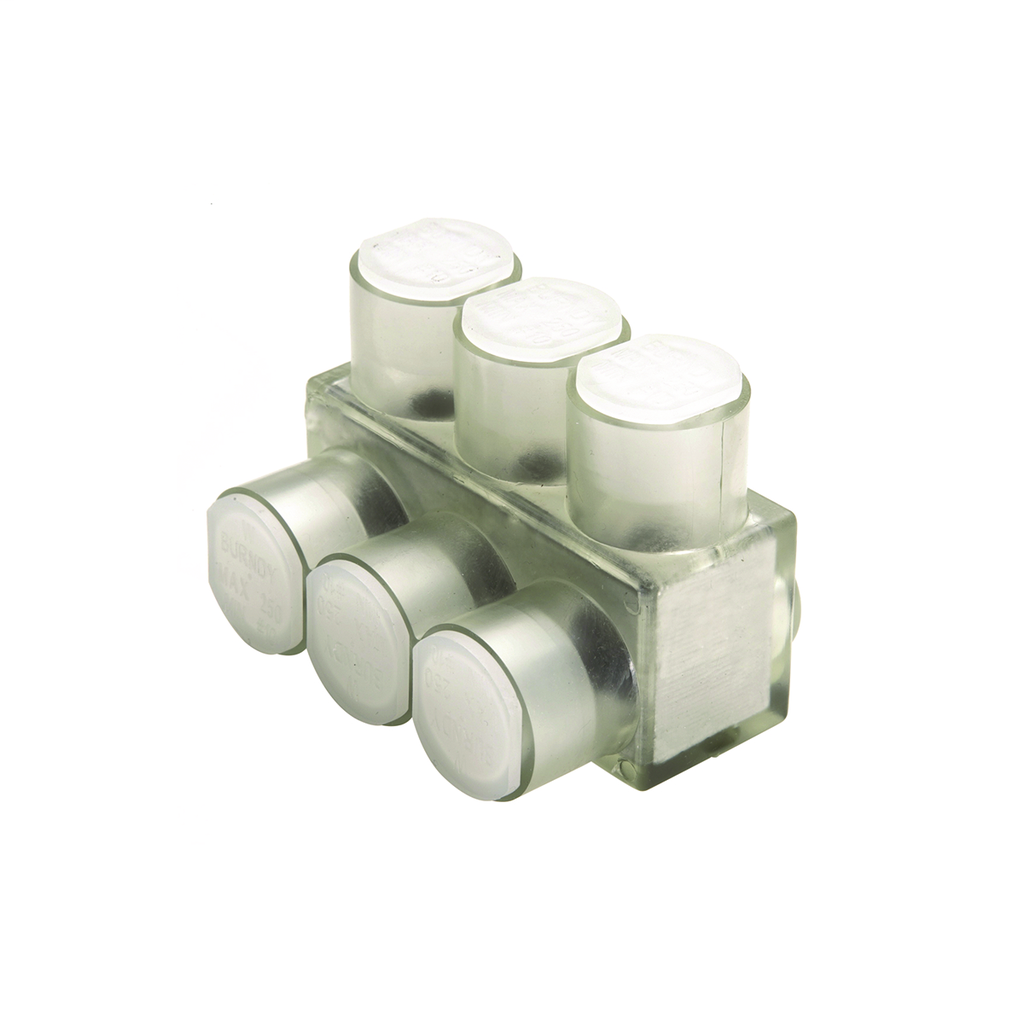

BUR BIBS2503 250-10 ONE SIDED UNITA
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$25.62/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BIBS2503
North Coast Part # 154013

Features

  • UNITAP Rated For Code Conductor Only, Torque: 275 IN-LB, Wire Entry: Single, Hex Size (key): 5/16 IN, Conductor Size (run - Range): 10 AWG - 250 KCMIL, Type Of Insulation: Plastisol, Wire Strip Length: 1 IN, Number Of Ports: 3

Specifications

  • Conductor - AL Str Size Range: 10 - 250 Str
  • Conductor - Copper Str Size Range: 10 - 250 Str
  • Country of Origin: US
  • Dimension - Height inch: 2.13 in
  • Dimension - L Length Overall mm: 75 mm
  • Dimension - Length Overall inch: 2.97 in
  • Dimension - Width inch: 2.07 in
  • Dimension - Width mm: 53 mm
  • Each - Height: 2.13 in
  • Each - Length: 2.97 in
  • Each - Width: 2.07 in
  • Hex Key: 5/16
  • Industry Standard(s): UL 486A-486B
  • Insulation Type: Plastisol
  • Operating Voltage: 600 V
  • Physical Attribute - Number of Screws: 3
  • Physical Attribute - Screw Type: Allen
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Rating - Minimum Voltage: 600
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: CM
  • Trade Name: UNITAP™
  • Sub Brand: UNITAP
  • IGS 3D Model Asset Reference URL 1: https://hubbellcdn.com/igs/BIBS2503_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/BIBS2503_MODEl-PDF.pdf

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810223994
Size 2.13 IN Height X 27 IN Width X 2.97 IN Length
Type 1-Sided Entry, Multi-Port
Conductor Size 10 AWG - 250 kcmil Stranded
Applications For Indoor use
Temperature Rating 194 F
Family Brand Name Burndy
Sub Brand Unitap
Product UPC 78181022399
Length 2.97 Inch
Width 2.07 in
Insulation Type Plastisol
Material Plastisol
Height 2.13 Inch
Plating Type Unplated
Plated? No
CSA Yes
Stud Size 5/16 in
Conductor Type Aluminum/Copper
Number of Ports 3
Blade Dimensions 2.97 in L x 2.07 in W x 2.13 in H
Country of Origin USA
Overall Length 2.97 in
