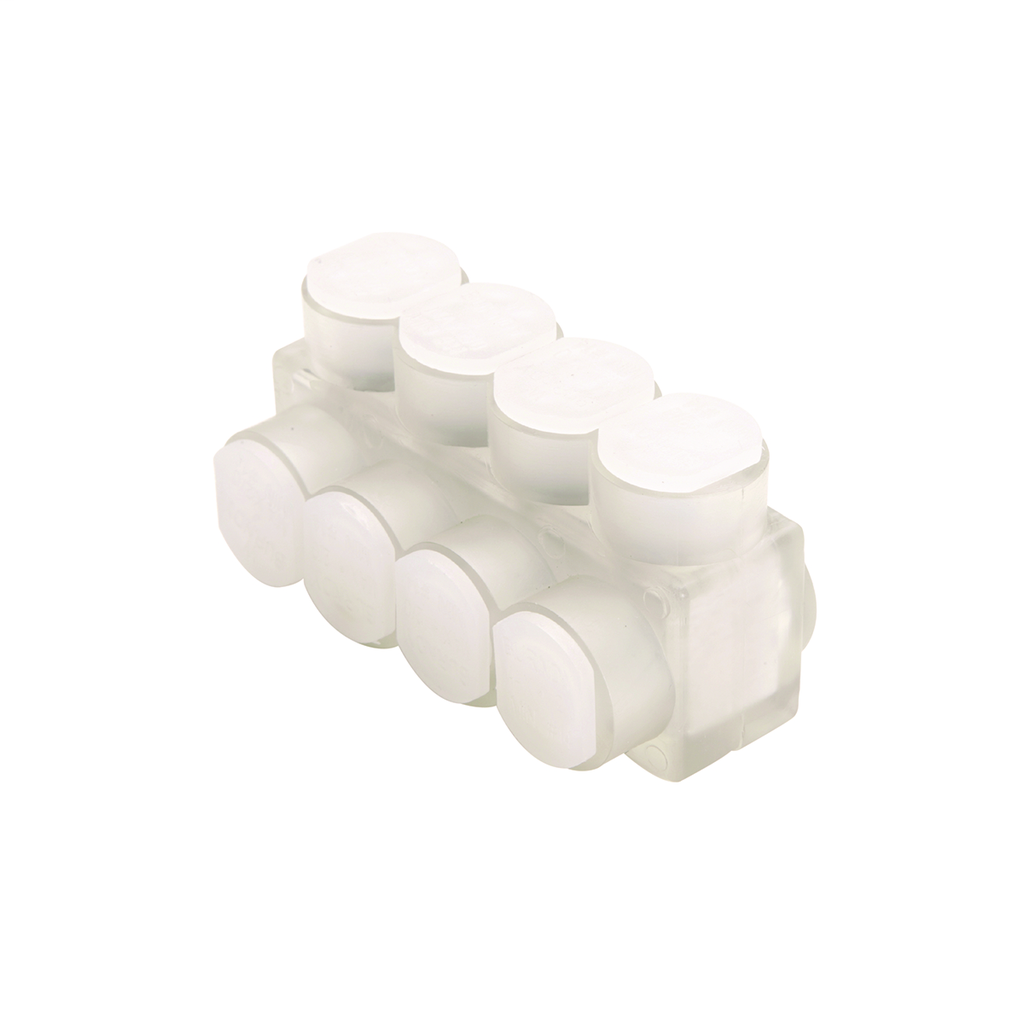

BUR BIBS2504 250-10 ONE SIDED UNITA
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$26.05/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BIBS2504
North Coast Part # 154021

Features

  • UNITAP Rated For Code Conductor Only, Torque: 275 IN-LB, Wire Entry: Single, Conductor Size (run - Range): 10 AWG - 250 KCMIL, Hex Size (key): 5/16 IN, Wire Strip Length: 1 IN, Type Of Insulation: Plastisol, Number Of Ports: 4

Specifications

  • Buy American Compliant: Yes
  • Conductor - AL Str Size Range: 10 AWG - 250 kcmil
  • Conductor - Copper Str Size Range: 10 AWG - 250 kcmil
  • Country of Origin: US
  • Dimension - Height inch: 2.13 in
  • Dimension - L Length Overall mm: 99 mm
  • Dimension - Length Overall inch: 3.91 in
  • Dimension - Width inch: 2.07 in
  • Dimension - Width mm: 53 mm
  • Each - Height: 2.13 in
  • Each - Length: 3.91 in
  • Each - Width: 2.07 in
  • Hex Key: 5/16
  • Industry Standard(s): UL 486A-486B
  • Insulation Type: Plastisol
  • Operating Voltage: 600 V
  • Physical Attribute - Number of Screws: 4
  • Physical Attribute - Screw Type: Allen
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Rating - Minimum Voltage: 600
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: CM
  • Trade Name: UNITAP™
  • Application: For Indoor Use Only, Copper Or Stranded Aluminum
  • Special Features: Features: UNITAP Rated For Code Conductor Only, Torque: 275 IN-LB, Wire Entry: Single, Conductor Size (run - Range): 10 AWG - 250 KCMIL, Hex Size (key): 5/16 IN, Wire Strip Length: 1 IN, Type Of Insulation: Plastisol, Number Of Ports: 4
  • Standard: UL 486A-486B
  • Sub Brand: UNITAP
  • Temperature Rating: 194
  • Type: BIBS, Multi-Port
  • IGS 3D Model Asset Reference URL 2: https://hubbellcdn.com/igs/BIBS2504_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 3: https://hubbellcdn.com/PDF3DFile/BIBS2504_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/BIBS2504_MODEL-STEP.zip

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181022401
Item Long Description Aluminum Multiple Tap Connector, Clear Insulated, 4 Port, 1 Sided Entry, 10 AWG-250 kcmil, Al/Cu Rated.
GTiN 00781810224014
Size 2.13 IN Height X 27 IN Width X 3.91 IN Length
Type BIBS, Multi-Port, One Side
Material Plastisol Insulation
Stud Size 5/16 in
Conductor Size 4/0, 2/0, 3/0, 2, 1, 4, 1/0, 8, 10, 6 AWG, 250 kcmil
Applications Indoor use, Copper or Stranded Aluminum
Connection Type Screw
Temperature Rating 90 C
Family Brand Name Burndy
Number of Ports 4
Blade Dimensions 3.91 in L x 27 in W x 2.13 in H
Sub Brand Unitap
Length 3.91 in
Width 2.07 in
Insulation Type Plastisol
Height 2.13 in
Plating Type Unplated
Plated? No
CSA Yes
