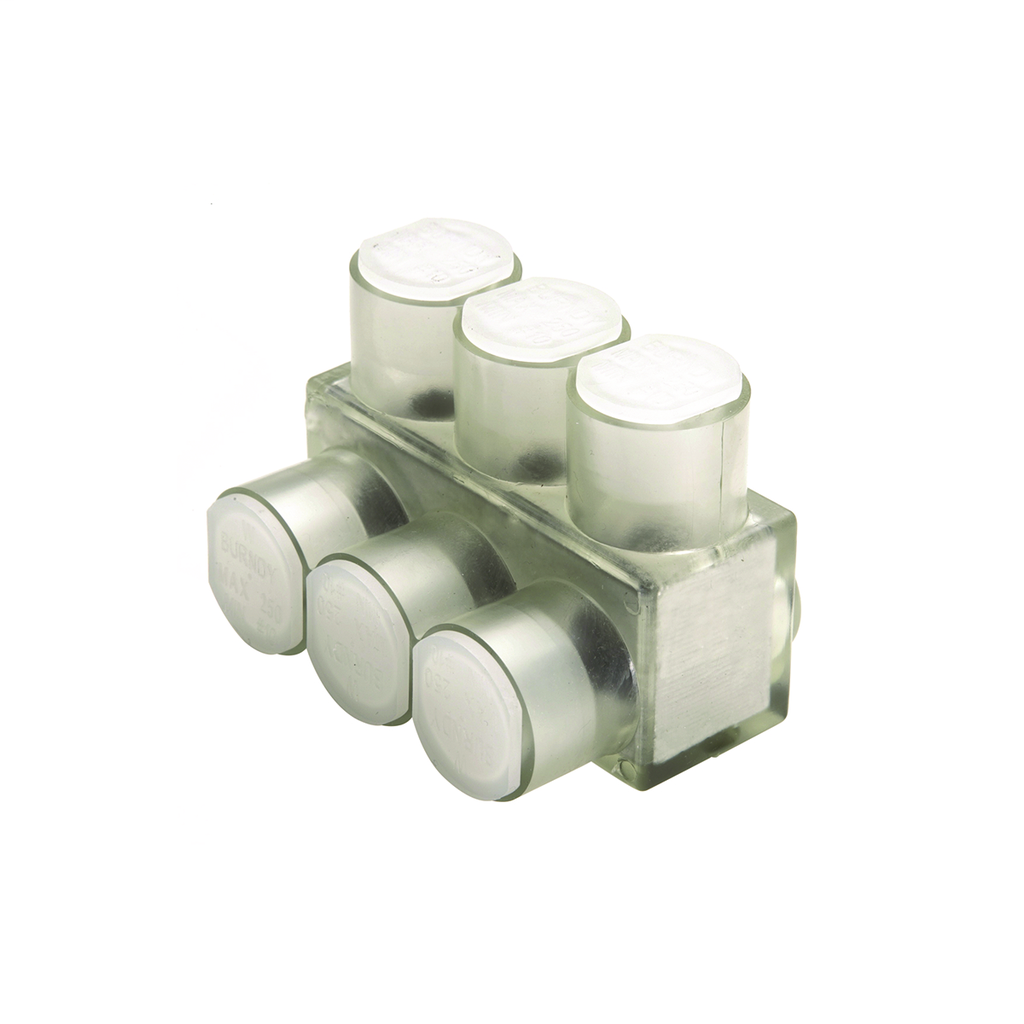

BUR BIBS3503 350-10,ONE-SIDE, UNI-T
Product image thumbnail 0
Product image thumbnail 1
$25.59/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BIBS3503
North Coast Part # 161972

Specifications

General

  • Application: For Indoor Use Only, Copper Or Stranded Aluminum
  • Hex Key: 5/16
  • Insulation: Y
  • Insulation Type: Plastisol
  • Material: Aluminum
  • Number Of Ports: 3
  • Physical Attribute - Number of Screws: 10
  • Physical Attribute - Screw Type: Allen
  • Plated: N
  • Plating Type: Unplated
  • Sub Brand: UNITAP
  • Temperature Rating: 194
  • Trade Name: UNITAP™
  • Type: BIBS, Multi-Port
  • UPC: 781810131770
  • UPC 12 Digit: 7818101317700

Dimensions

  • Dimension - Height inch: 2.50 in
  • Dimension - L Length Overall mm: 80 mm
  • Dimension - Length Overall inch: 3.13 in
  • Dimension - Width inch: 2.32 in
  • Dimension - Width mm: 59 mm

Electrical Ratings

  • Rating - Minimum Voltage: 600

Conductor Related

  • Conductor - AL Str Size Range: 10 - 350 Str
  • Conductor - Copper Str Size Range: 10 - 350 Str

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Conductor Type

  • AL C Str-Size
  • CU C Str-Size

Overview

UPC 78181013177
GTiN 00781810131770
Size 2.5 IN Height X 2.32 IN Width X 3.13 IN Length
Type Multi-Port, 1-Level
Conductor Size 10 AWG - 350 Kcmil
Applications For Indoor Use Only, Copper or Stranded Aluminum
Temperature Rating 90 C
Family Brand Name Burndy
Sub Brand Unitap
Length 3.13 in
Width 2.32 in
Insulation Type Plastisol
Material Aluminum
Stud Size 5/16 in
Height 2.50 in
Connection Type Screw
Plating Type Unplated
Plated? No
Number of Ports 3
Blade Dimensions 79.5 mm
CSA Yes
