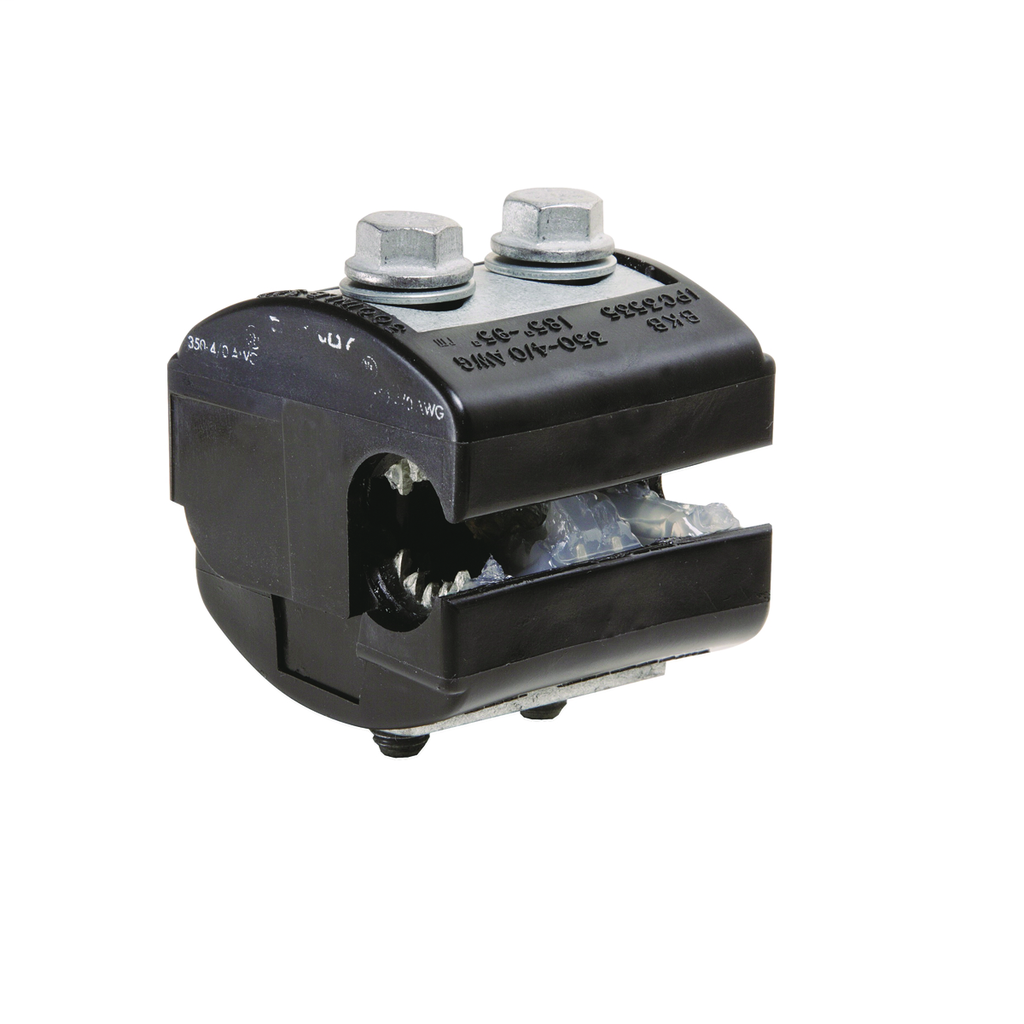

BUR BIPC350350 350-350KCMIL INSL PR
Product image thumbnail 0
Product image thumbnail 1
$112.33/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BIPC350350
North Coast Part # 153314

Specifications

General

  • Application: For Copper And Aluminum Conductor Combinations Up To 90 DEG C, 600 Volt Applications
  • Installation Torque Recommended in-lb: 300 LBS/in
  • Physical Attribute - Number of Screws: 2
  • Physical Attribute - Screw Type: Hexagonal Bolt
  • Physical Attribute - Socket Size: 9/16
  • Plated: N
  • Plating Type: Unplated
  • Sub Brand: INSULATION PIERCING CONNECTOR
  • Type: BIPC
  • UPC: 781810128749
  • UPC 12 Digit: 7818101287499

Dimensions

  • Dimension - Bolt Size inch: 0.38 in
  • Dimension - Height inch: 3.00 in
  • Dimension - L Length Overall mm: 67 mm
  • Dimension - Length Overall inch: 2.62 in
  • Dimension - Width inch: 2.75 in
  • Dimension - Width mm: 70 mm

Electrical Ratings

  • Rating - Minimum Voltage: 600
  • Voltage - Maximum: 300 V

Conductor Related

  • Conductor - AL Str Run Range: 4/0 AWG-350 kcmil
  • Conductor - AL Str Tap Range: 4/0 AWG-350 kcmil
  • Conductor - Copper Str Run Range: 4/0 AWG-350 kcmil
  • Conductor - Copper Str Tap Range: 4/0 AWG-350 kcmil

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Conductor Type

  • AL C Str-Run
  • CU C Str-Run
  • AL C Str-Tap
  • CU C Str-Tap

Overview

UPC 78181012874
GTiN 00781810128749
Type BIPC
Applications For Copper And Aluminum Conductor Combinations Up To 90 DEG C, 600 Volt Applications
Bolt Size 3/8-16 IN
Temperature Rating 90 C
Family Brand Name Burndy
Sub Brand INSULATION PIERCING CONNECTOR
Length 2.62 in
Width 2.75 in
Height 3.00 in
Plating Type Unplated
Plated? No
CSA Yes
Max Voltage 300 V
