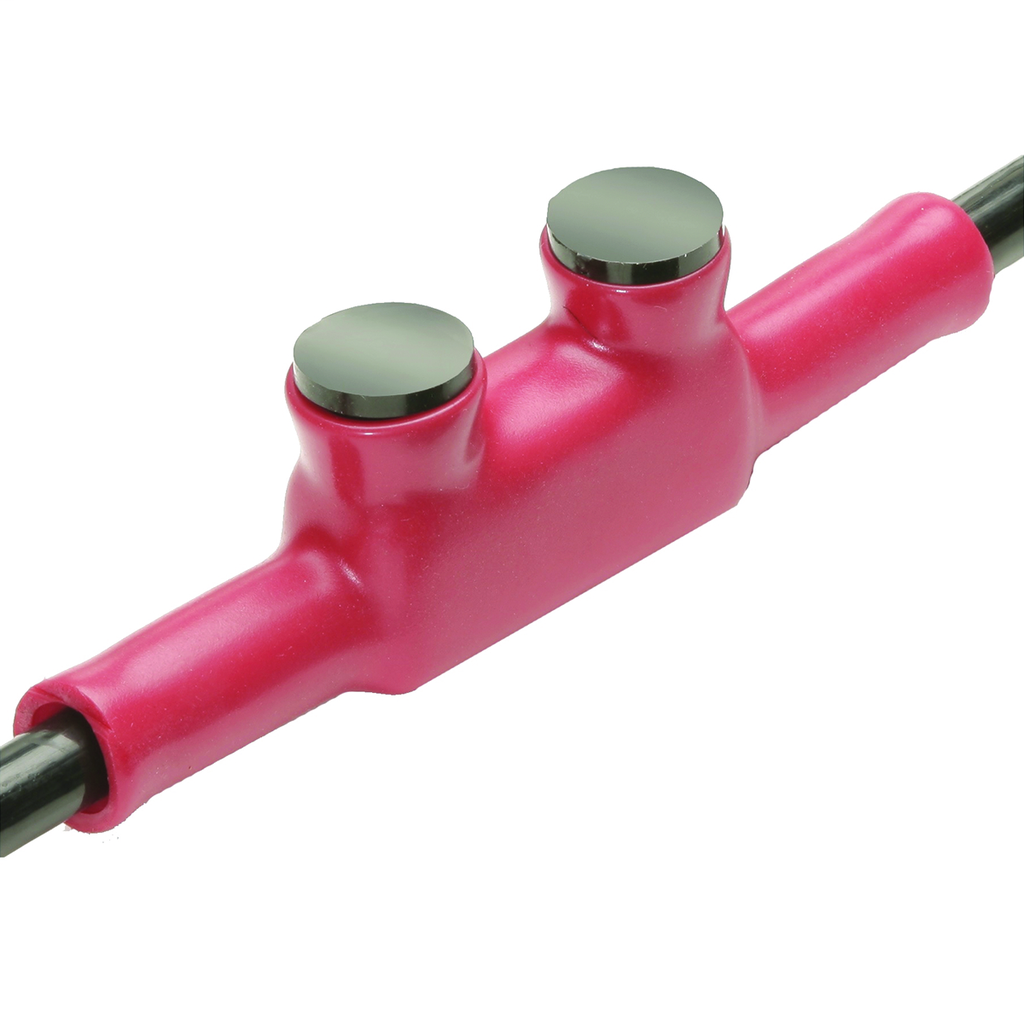

BUR BISR1DB 2-1 DIRECTBURIAL UNITAP
Product image thumbnail 0
Product image thumbnail 1
$96.77/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BISR1DB
North Coast Part # 158693

Specifications

General

  • Application: For Outside Direct Burial
  • Hex Key: 5/32 in
  • Installation Torque Recommended in-lb: 130 in-lb
  • Insulation: Y
  • Insulation Type: Plastisol
  • Material: Aluminum
  • Number Of Ports: 2
  • Physical Attribute - Number of Screws: 2
  • Physical Attribute - Screw Type: Allen
  • Plated: N
  • Plating Type: Unplated
  • Sub Brand: UNITAP, MOLE
  • Temperature Rating: 90 °C
  • Trade Name: UNITAP™
  • Type: BISR
  • UPC: 781810288047
  • UPC 12 Digit: 7818102880477

Dimensions

  • Dimension - Height inch: 1.75 in
  • Dimension - L Length Overall mm: 160 mm
  • Dimension - Length Overall inch: 6.3 in
  • Dimension - Screw Size inch: 5/16
  • Dimension - Strip Length inch: 7/8 in
  • Dimension - Width inch: 0.88 in
  • Dimension - Width mm: 22.3 mm

Electrical Ratings

  • Operating Voltage: 600 V
  • Rating - Minimum Voltage: 600

Conductor Related

  • Conductor - AL Str Size: 2 AWG;1 AWG
  • Conductor - AL Str Size Range: 2 - 1 Str
  • Conductor - Copper Str Size: #2 AWG;#1 AWG
  • Conductor - Copper Str Size Range: 2 - 1 Str

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: Yes
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Conductor Type

  • AL C Str-Size
  • CU C Str-Size

Overview

UPC 78181028804
GTiN 00781810288047
Finish Unplated
Size 1.59 IN Height X 0.93 IN Width X 6.3 IN Length
Type BISR
Material Aluminum
Conductor Size 1 AWG
Applications For Outside Direct Burial
Temperature Rating 90 C
Family Brand Name Burndy
Sub Brand UNITAP, MOLE
Length 6.3 in
Width 0.88 in
Insulation Type Plastisol
Height 1.75 in
Plating Type Unplated
Plated? No
CSA No
