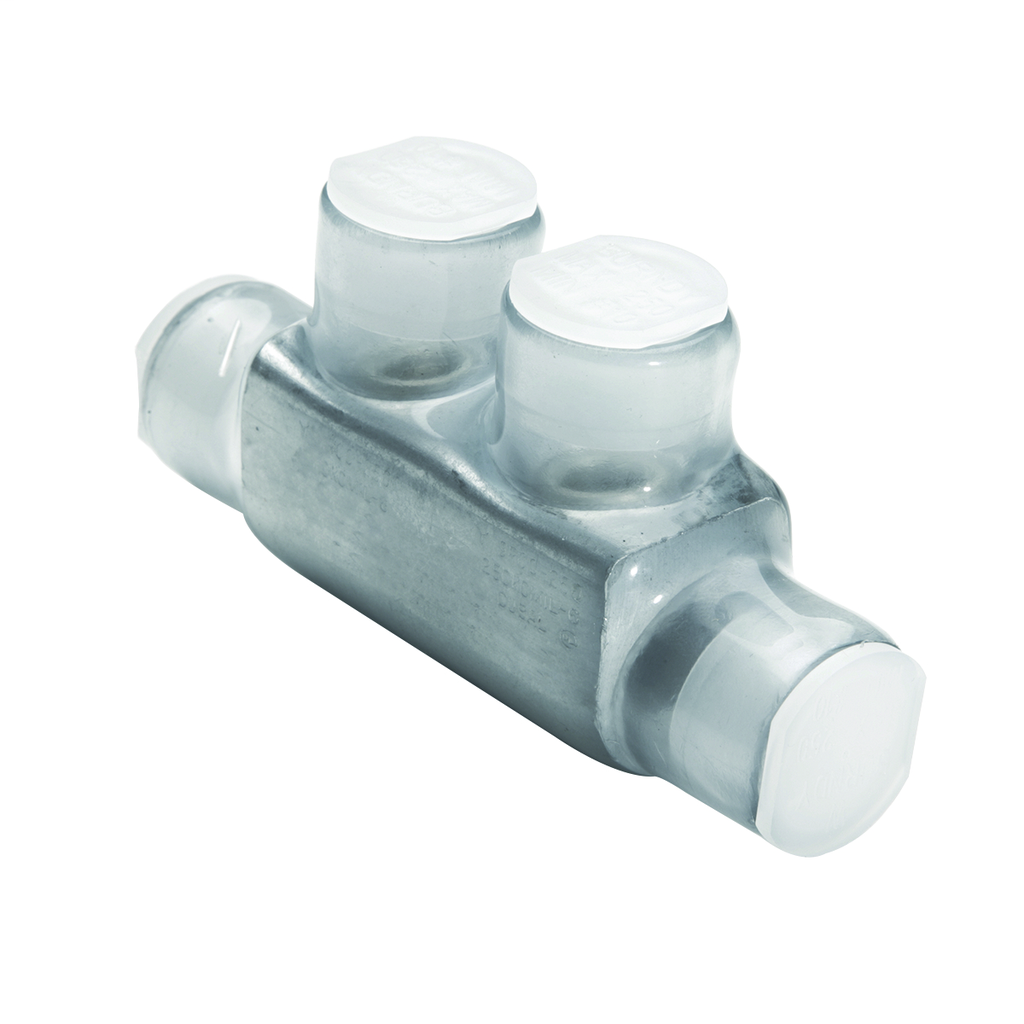

BUR BISR250 250-10 IN-LINE SPLICE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$23.09/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BISR250
North Coast Part # 158146

Features

  • Clear Plastisol Covered Al6061-T6 Aluminum Body: Saves Time, Lowers Installation Costs, Eliminates Taping, Clear Plastisol: Allows Visual Confirmation That Conductor Is Properly Inserted, Oxide Inhibitor Pre-Installed: Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking: Reduces Number Of Connectors Carried In Inventory, In-Line Splice/Reductions Are Made Quickly And Easily With The Unitap Line Of Connectors, UL486B Listed, Dual-Rated AL9CU For Any Stranded Copper Or Stranded Aluminum Applications, 600 Volt, 90 DEG C, Conductor Type: Run: Stranded Copper Or Stranded Aluminum, Conductor Size (run - Range): 10 AWG - 250 KCMIL, Hex Size (key): 5/16 IN, Wire Strip Length: 1-3/16 IN, Number Of Ports: 2, Type Of Insulation: Clear Plastisol, Torque: 275 IN-LB

Specifications

  • Buy American Compliant: Yes
  • Conductor - AL Str Size: 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil
  • Conductor - AL Str Size Range: 10 AWG - 250 kcmil
  • Conductor - Copper Str Size: #10;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250
  • Conductor - Copper Str Size Range: 10 AWG - 250 kcmil
  • Country of Origin: US
  • Dimension - Height inch: 2.1 in
  • Dimension - L Length Overall mm: 102 mm
  • Dimension - Length Overall inch: 4.01 in
  • Dimension - Width inch: 1.19 in
  • Dimension - Width mm: 30 mm
  • Each - Height: 2.1 in
  • Each - Length: 4.01 in
  • Each - Width: 1.19 in
  • Hex Key: 5/16 in
  • Industry Standard(s): UL 486A-486B
  • Installation Torque Recommended in-lb: 275 in-lb
  • Insulation Type: Plastisol
  • Operating Voltage: 600 V
  • Physical Attribute - Number of Screws: 2
  • Physical Attribute - Screw Type: Allen
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Rating - Minimum Voltage: 600
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: CM
  • Trade Name: UNITAP™
  • Application: For Indoor Use Only
  • Special Features: Features: Clear Plastisol Covered Al6061-T6 Aluminum Body: Saves Time, Lowers Installation Costs, Eliminates Taping, Clear Plastisol: Allows Visual Confirmation That Conductor Is Properly Inserted, Oxide Inhibitor Pre-Installed: Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking: Reduces Number Of Connectors Carried In Inventory, In-Line Splice/Reductions Are Made Quickly And Easily With The Unitap Line Of Connectors, UL486B Listed, Dual-Rated AL9CU For Any Stranded Copper Or Stranded Aluminum Applications, 600 Volt, 90 DEG C, Conductor Type: Run: Stranded Copper Or Stranded Aluminum, Conductor Size (run - Range): 10 AWG - 250 KCMIL, Hex Size (key): 5/16 IN, Wire Strip Length: 1-3/16 IN, Number Of Ports: 2, Type Of Insulation: Clear Plastisol, Torque: 275 IN-LB
  • Standard: UL 486A-486B
  • Sub Brand: UNITAP
  • Temperature Rating: 90 °C
  • Type: BISR, In-Line
  • IGS 3D Model Asset Reference URL 2: https://hubbellcdn.com/igs/BISR250_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 3: https://hubbellcdn.com/PDF3DFile/BISR250_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/BISR250_MODEL-STEP.zip

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181013410
Item Long Description Aluminum In-Line Splice, 10 AWG-250 kcmil.
GTiN 00781810134108
Size 41 IN Length X 1.19 IN Width X 2.1 IN Height
Type BISR, In-Line
Material Al6061-T6 Aluminum
Stud Size 5/16 in
Conductor Size 250 kcmil, 4/0, 2/0, 3/0, 2, 1, 4, 1/0, 8, 10, 6 AWG Run
Applications Indoor use
Connection Type Screw
Temperature Rating 90 C
Family Brand Name Burndy
Number of Ports 2
Blade Dimensions 41 in L x 1.19 in W x 2.1 in H
Sub Brand Unitap
Length 4.01 in
Width 1.19 in
Insulation Type Plastisol
Height 2.1 in
Plating Type Unplated
Plated? No
CSA Yes
