BUR BISR2FX 14-2, IN-LINE SPLICE, F
$26.87/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BISR2FX
North Coast Part # 1353753

Specifications

General

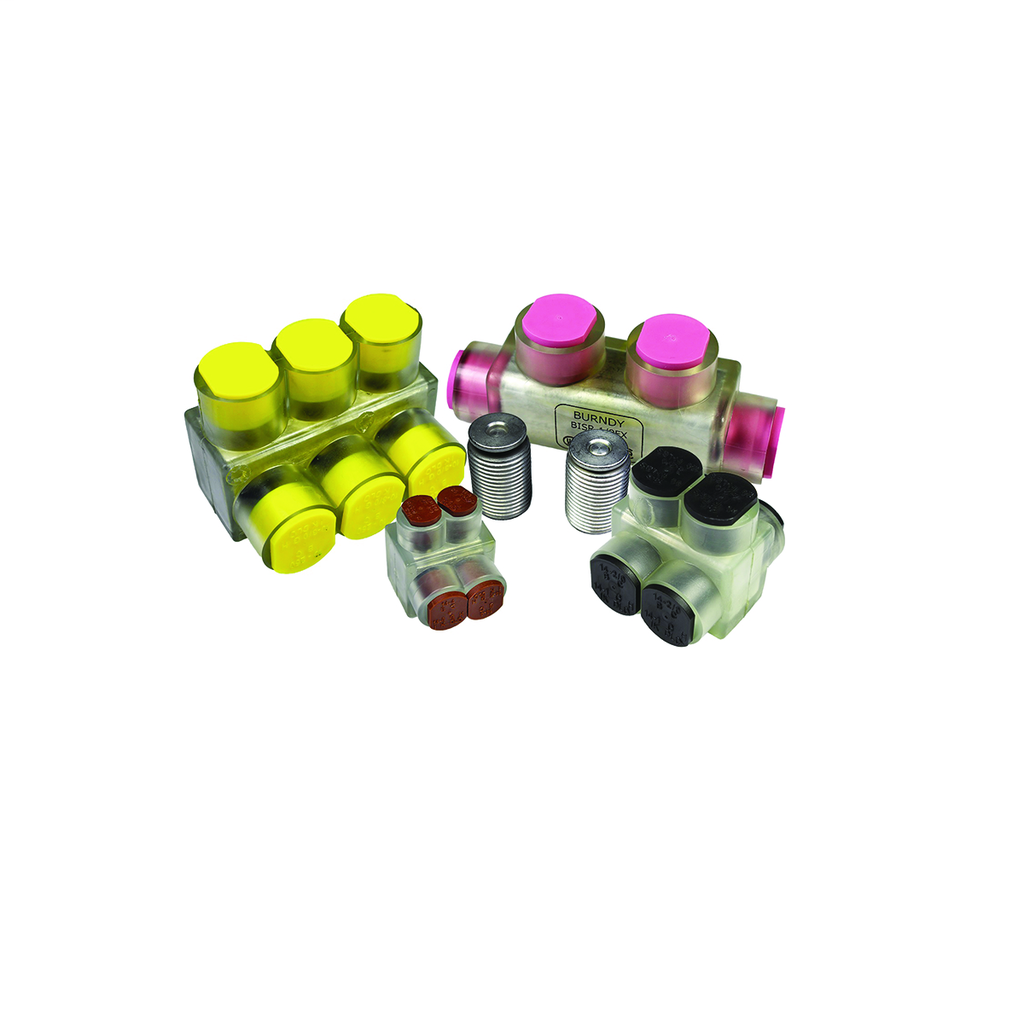

  • Application: Tap connections and in-line splice/reductions are made quickly and easily with the UNITAP™ line of connectors
  • Color Code: Brown
  • Hex Key: 5/32 in
  • Installation Torque Recommended in-lb: 100 in-lb
  • Insulation: Y
  • Insulation Type: Plastisol
  • Material: Aluminum
  • Number Of Ports: 2
  • Plated: Y
  • Plating Type: Tin Plated Aluminum
  • Sub Brand: UNITAP
  • Temperature Rating: 135 °C
  • Trade Name: UNITAP™
  • Type: BISR,Multi-Port
  • UPC: 621945439962
  • UPC 12 Digit: 6219454399622

Dimensions

  • Dimension - Height inch: 1.22 in
  • Dimension - L Length Overall mm: 60.45 mm
  • Dimension - Length Overall inch: 2.38 in
  • Dimension - Width inch: 0.75 in
  • Dimension - Width mm: 19.05 mm

Electrical Ratings

  • Operating Voltage: 600 V
  • Rating - Minimum Voltage: 600

Conductor Related

  • Conductor - Copper DLO Size Range: 14- 2 Str
  • Conductor - Copper Flex G Size Range: 14 - 2 Str
  • Conductor - Copper Flex H Size Range: 14- 2 Str
  • Conductor - Copper Flex I Size Range: 14- 2 Str
  • Conductor - Copper Flex K Size Range: 14- 2 Str
  • Conductor - Copper Str Size Range: 14- 2 Str

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Conductor Type

  • AL C Str-Size
  • CU C Str-Size
  • CU C Flex-Size

Overview

UPC 62194543996
GTiN 00621945439962
Type BISR,Multi-Port
Applications Tap connections and in-line splice/reductions are made quickly and easily with the UNITAP line of connectors
Temperature Rating 135 C
Family Brand Name Burndy
Sub Brand UNITAP
Length 2.38 in
Width 0.75 in
Insulation Type Plastisol
Material Aluminum
Height 1.22 in
Plating Type Tin Plated Aluminum
Plated? Yes
CSA Yes
Color Coding Brown
