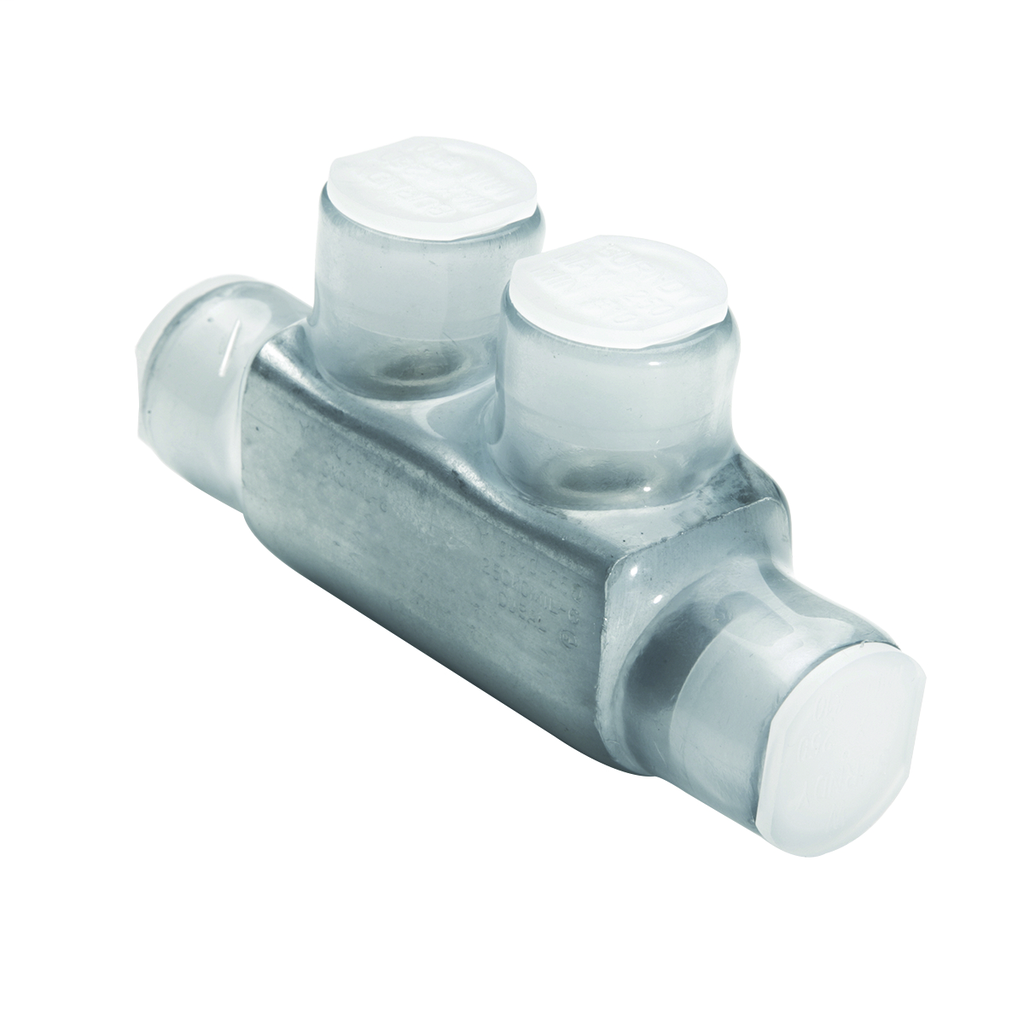

BUR BISR350 350-10 IN-LINE SPLICE
Product image thumbnail 0
Product image thumbnail 1
$23.76/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BISR350
North Coast Part # 158933

Specifications

General

  • Application: For Indoor Use Only
  • Hex Key: 5/16 in
  • Insulation: Y
  • Insulation Type: Plastisol
  • Material: Aluminum
  • Material - Hardware: Aluminum
  • Number Of Ports: 2
  • Physical Attribute - Number of Screws: 2
  • Physical Attribute - Screw Type: Allen
  • Plated: N
  • Plating Type: Unplated
  • Sub Brand: UNITAP
  • Temperature Rating: 90 °C
  • Trade Name: UNITAP™
  • Type: BISR, In-Line
  • UPC: 781810134092
  • UPC 12 Digit: 7818101340922

Dimensions

  • Dimension - Height fraction: 2.3333333333333335 in
  • Dimension - Height inch: 2.35 in
  • Dimension - L Length Overall mm: 118 mm
  • Dimension - Length Overall inch: 4.63 in
  • Dimension - Width fraction: 1-17/50 in
  • Dimension - Width inch: 1.34 in
  • Dimension - Width mm: 34 mm

Electrical Ratings

  • Operating Voltage: 600 V
  • Rating - Minimum Voltage: 600

Conductor Related

  • Conductor - AL Str Size: 8 AWG;6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
  • Conductor - AL Str Size Range: 10 -350 Str
  • Conductor - Copper Str Size: #10;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350
  • Conductor - Copper Str Size Range: 10 -350 Str

Certifications and Compliance

  • Certification - CSA Approved: Yes
  • Certification - ETL: No
  • Certification - UL Listed Direct Burial: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Logistics

  • Minimum Pack Quantity: 1

Conductor Type

  • AL C Str-Size
  • CU C Str-Size

Overview

UPC 78181013409
GTiN 00781810134092
Size 4.63 IN Length X 1.34 IN Width X 2.35 IN Height
Type BISR, In-Line
Material Al6061-T6 Aluminum
Stud Size 5/16 in
Conductor Size 250, 350 kcmil, 4/0, 2/0, 3/0, 2, 1, 4, 1/0, 8, 10, 6 AWG Run
Applications Indoor use
Connection Type Screw
Temperature Rating 90 C
Family Brand Name Burndy
Number of Ports 2
Blade Dimensions 4.63 in L x 1.34 in W x 2.35 in H
Sub Brand Unitap
Length 4.63 in
Width 1.34 in
Insulation Type Plastisol
Height 2.35 in
Plating Type Unplated
Plated? No
CSA Yes
