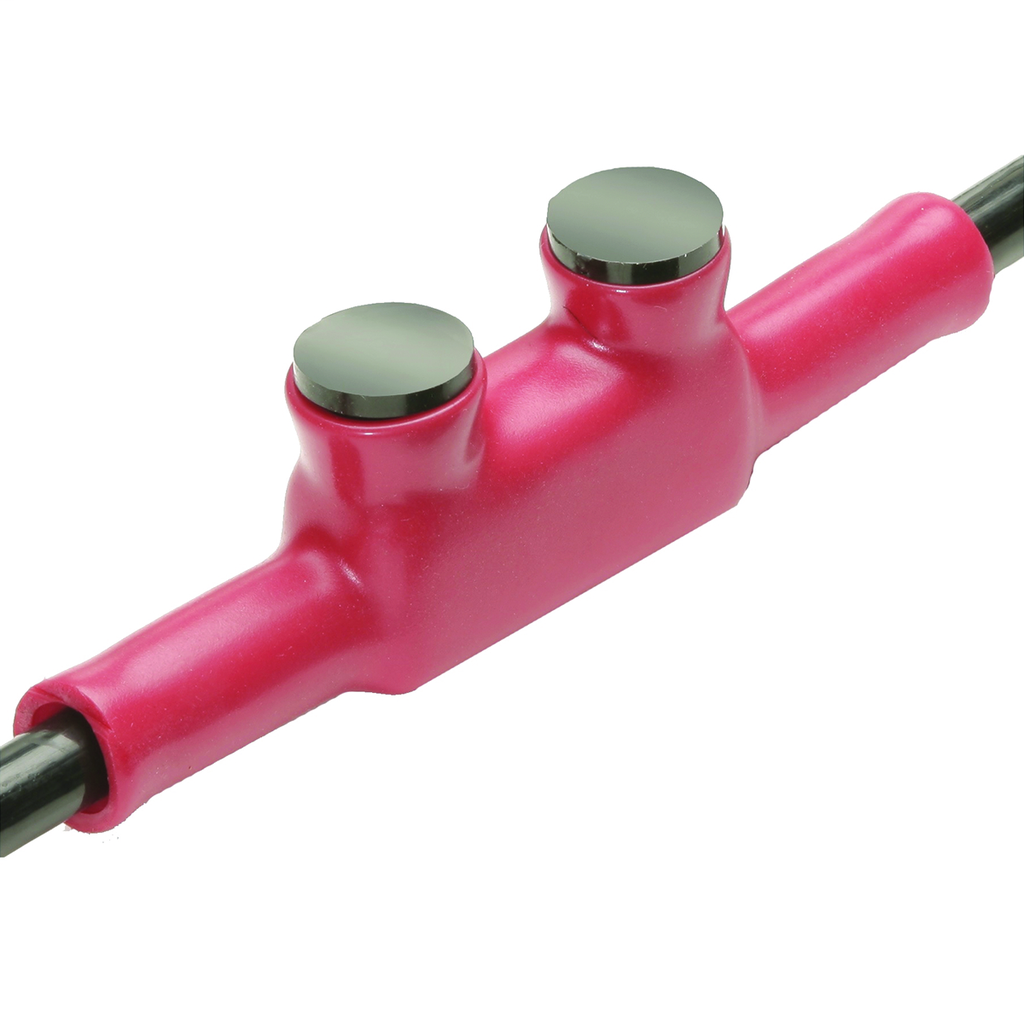

BUR BISR4DB 4-6 DIRECTBURIAL UNITAP
Product image thumbnail 0
Product image thumbnail 1
$75.14/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BISR4DB
North Coast Part # 160782

Features

Features: Designed Specifically For Direct Burial Applications, The Mole Inline Splice/Reducer Is Made With A Specialized Plastisol Material That Forms A Rugged Weathertight Connection, UL486D Listed For Direct Burial, AL9CU Dual-Rated For Copper And Aluminum Applications, 600V 90°C, Plastisol Covered Al6061-T6 AluminumBody Saves Time By Eliminating The Need For Heat Shrink, Oxide Inhibitor Pre-Installed Preventing Moisture And Contaminants From Entering Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, Wire Entry: In-Line, Torque: 50 IN-LB, Hex Size (key): 1/8 IN, Conductor Size (run - Range): 6 - 4 AWG, Wire Strip Length: 7/8 IN, Type Of Insulation: Plastisol, Number Of Ports: 2

Specifications

  • Application: For Outside Direct Burial
  • Hex Key: 1/8 in
  • Installation Torque Recommended in-lb: 50 in-lb
  • Insulation: Y
  • Insulation Type: Plastisol
  • Item Type: 3B
  • Material: Aluminum
  • Material - Hardware: Aluminum
  • Number Of Ports: 2
  • Physical Attribute - Number of Screws: 2
  • Physical Attribute - Screw Type: Allen
  • Plated: N
  • Plating Type: Unplated
  • Sub Brand: UNITAP, MOLE
  • Temperature Rating: 90 °C
  • Trade Name: UNITAP™
  • Type: BISR
  • UPC: 781810288054
  • UPC 12 Digit: 7818102880544
  • Dimension - Height fraction: 1.4 in
  • Dimension - Height inch: 1.39 in
  • Dimension - L Length Overall mm: 109.22 mm
  • Dimension - Length Overall inch: 4.3 in
  • Dimension - Screw Size inch: 1/4
  • Dimension - Strip Length inch: 7/8 in
  • Dimension - Width fraction: 4/5 in
  • Dimension - Width inch: 0.6 in
  • Dimension - Width mm: 17.27 mm
  • Operating Voltage: 600 V
  • Rating - Minimum Voltage: 600
  • Conductor - AL Str Size: 6 AWG;4 AWG
  • Conductor - AL Str Size Range: 6 - 4 Str
  • Conductor - Copper Str Size: #6 AWG;5 AWG;#4 AWG
  • Conductor - Copper Str Size Range: 6 - 4 Str

Conductor Type

  • AL C Str-Size
  • CU C Str-Size
  • Certification - CSA Approved: No
  • Certification - UL Listed Direct Burial: Yes
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Overview

UPC 78181028805
GTiN 00781810288054
Size 1.28 IN Height X 0.8 IN Width X 4.3 IN Length
Type BISR, Direct Burial, 2-Level
Material AL6061-T6 Aluminum, Plastisol Insulation
Stud Size 1/8 in
Conductor Size 6-4 AWG
Applications For Outside Direct Burial
Connection Type Screw
Temperature Rating 90 C
Family Brand Name Burndy
Number of Ports 2
Blade Dimensions 4.3 in L x 0.8 in W x 1.28 in H
Sub Brand Mole, Unitap
Length 4.3 in
Width 0.6 in
Insulation Type Plastisol
Height 1.39 in
Plating Type Unplated
Plated? No
CSA No
