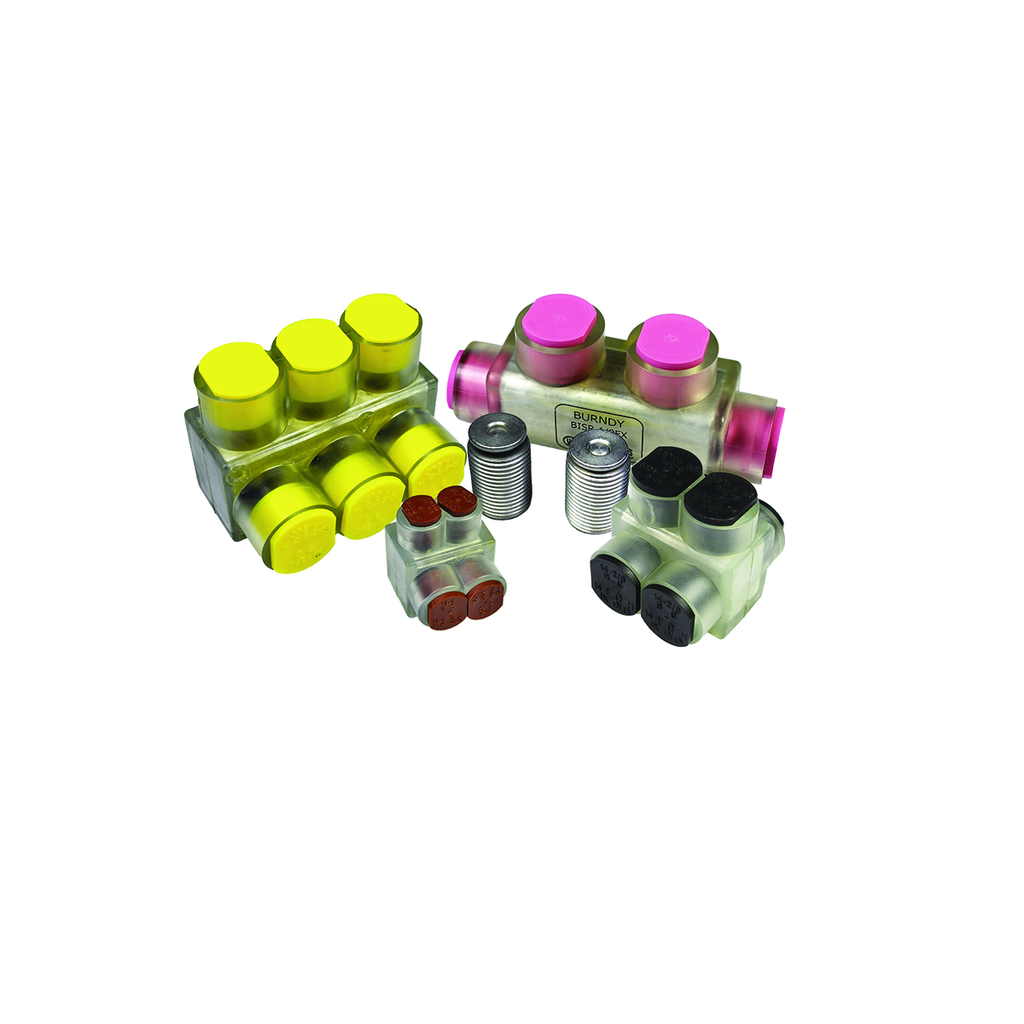

BUR BIT250FX 250-10, 2-SIDED, TAP,
$61.81/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BIT250FX
North Coast Part # 1279923

Features

Features: Clear Plastisol covered AL6061-T6 aluminum body, Saves time, lowers installation costs, eliminates taping, Oxide inhibitor pre-installed, Inhibits moisture and contaminants from entering the contact area

Specifications

  • Application: Clear Insulated Multiple Tap Connectors
  • Color Code: Yellow
  • Hex Key: 5/16 in
  • Installation Torque Recommended in-lb: 10-1 Str- 180 in-lb, 1/0-250 Str- 300 in-lb
  • Insulation: Y
  • Insulation Type: Plastisol
  • Item Type: 3A
  • Material: Aluminum
  • Number Of Ports: 2
  • Plated: Y
  • Plating Type: Tin Plated Aluminum
  • Sub Brand: UNITAP
  • Temperature Rating: 135 °C
  • Trade Name: UNITAP™
  • Type: BIT, UNITAP
  • UPC: 621945439214
  • UPC 12 Digit: 6219454392144
  • Dimension - Height inch: 2.13 in
  • Dimension - L Length Overall mm: 52 mm
  • Dimension - Length Overall inch: 2.03 in
  • Dimension - Width inch: 2.13 in
  • Dimension - Width mm: 54 mm
  • Operating Voltage: 600 V
  • Rating - Minimum Voltage: 600
  • Conductor - Copper DLO Size Range: 10 - 3/0 Str
  • Conductor - Copper Flex G Size Range: 10 - 3/0 Str
  • Conductor - Copper Flex H Size Range: 10 - 3/0 Str
  • Conductor - Copper Flex I Size Range: 10 - 3/0 Str
  • Conductor - Copper Flex K Size Range: 10 - 3/0 Str
  • Conductor - Copper Str Size Range: 10 -250 Str

Conductor Type

  • AL C Str-Size
  • CU C Str-Size
  • CU C Flex-Size
  • Certification - CSA Approved: No
  • Industry Standard(s): UL468A-468B
  • Standards - Industry Standards Met: UL468A-468B
  • Standards - RoHS Compliance Status: CM
  • UL Listed: Yes

Overview

UPC 62194543921
GTiN 00621945439214
Type BIT, UNITAP
Applications Clear Insulated Multiple Tap Connectors
Temperature Rating 135 C
Family Brand Name Burndy
Sub Brand UNITAP
Length 2.03 in
Width 2.13 in
Insulation Type Plastisol
Material Aluminum
Height 2.13 in
Plating Type Tin Plated Aluminum
Plated? Yes
CSA No
Color Coding Yellow
