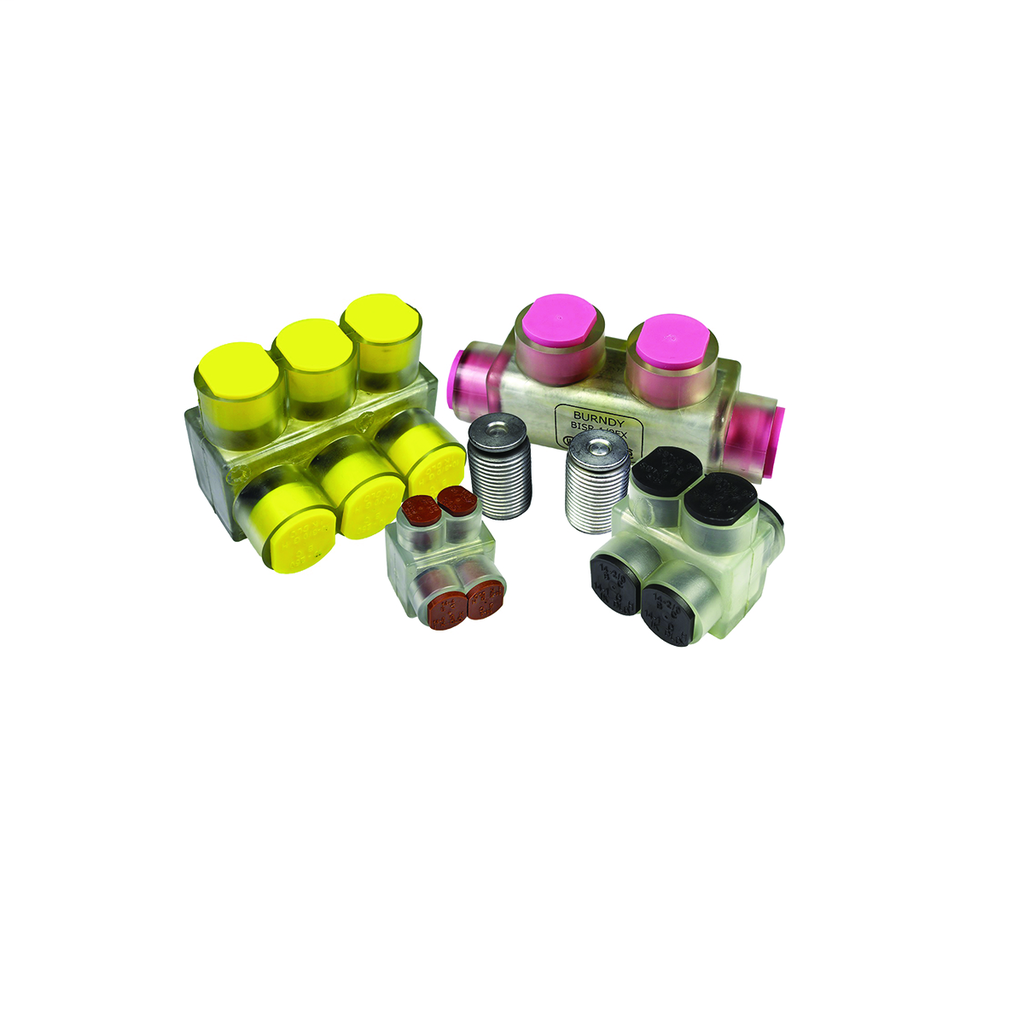

BUR BIT4FX 4-4 ONE SIDED UNITAP, TA
Product image thumbnail 0
Product image thumbnail 1
$23.77/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BIT4FX
North Coast Part # 1279921

Features

  • Clear Plastisol covered AL6061-T6 aluminum body, Saves time, lowers installation costs, eliminates taping, Oxide inhibitor pre-installed, Inhibits moisture and contaminants from entering the contact area

Specifications

  • Conductor - AL Str Size Range: 14 str.- 4 str.
  • Conductor - Copper DLO Size Range: 14 str.-6 str.
  • Conductor - Copper Flex G Size Range: 14 str.-6 str.
  • Conductor - Copper Flex H Size Range: 14 str.-6 str.
  • Conductor - Copper Flex I Size Range: 14 str.-6 str.
  • Conductor - Copper Flex K Size Range: 14 str.-6 str.
  • Conductor - Copper Str Size Range: 14 str.-4str.
  • Country of Origin: US
  • Dimension - Height inch: 1.25 in
  • Dimension - L Length Overall mm: 27.44 mm
  • Dimension - Length Overall inch: 1.08 in
  • Dimension - Width inch: 1.13 in
  • Dimension - Width mm: 28.70 mm
  • Each - Height: 1.25 in
  • Each - Length: 1.08 in
  • Each - Width: 1.13 in
  • Hex Key: 1/8 in
  • Industry Standard(s): UL 486A-486B
  • Insulation Type: Plastisol
  • Operating Voltage: 600 V
  • Plated: Y
  • Plating Type: Tin Plated
  • Product Type: Mechanical
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: CM
  • Trade Name: UNITAP™
  • Sub Brand: UNITAP

Certifications

  • CSA Approved: Yes
  • EU RoHS Indicator: Yes

Overview

GTiN 00621945440036
Type BIT, UNITAP
Applications Clear Insulated Multiple Tap Connectors
Temperature Rating 135 C
Family Brand Name Burndy
Sub Brand UNITAP
Product UPC 62194544003
Length 1.08 Inch
Width 1.13 in
Insulation Type Plastisol
Material Aluminum
Height 1.25 Inch
Plating Type Tinned
Plated? Yes
CSA Yes
Color Coding Brown
Country of Origin USA
Overall Length 1.08 in
