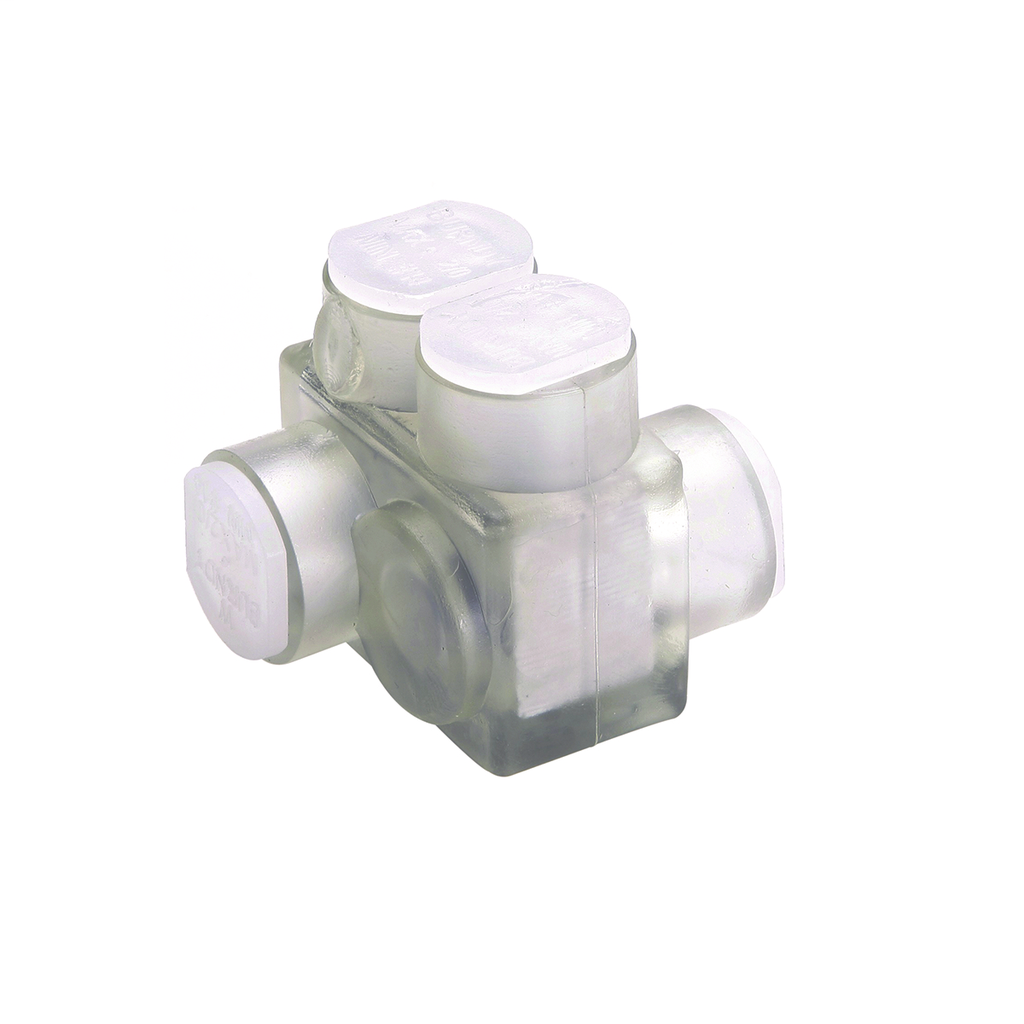

BUR BITO600 600-4, OFFSET, UNITAP
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$42.75/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BITO600
North Coast Part # 216441

Features

  • Clear Plastisol Covered AL6061-T6 Aluminum Body: Saves Time, Lowers Installation Costs, Eliminates Taping, Clear Plastisol: Allows Visual Confirmation That Conductor Is Properly Inserted, Oxide Inhibitor Pre-Installed: Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking: Reduces Number Of Connectors Carried In Inventory, Torque: 375 IN-LB, Wire Entry: Double, Hex Size (key): 3/8 IN, Conductor Size (run - Range): 4 AWG - 600 KCMIL, Number Of Ports: 2, Type Of Insulation: Plastisol, Wire Strip Length: 1-1/8 IN

Specifications

  • Conductor - AL Str Size Range: 4 str. - 600 kcmil
  • Conductor - Copper Str Size Range: 4 str. - 600 kcmil
  • Country of Origin: US
  • Dimension - Height inch: 2.75 in
  • Dimension - L Length Overall mm: 69 mm
  • Dimension - Length Overall inch: 2.72 in
  • Dimension - Width inch: 3.00 in
  • Dimension - Width mm: 76 mm
  • Each - Height: 2.75 in
  • Each - Length: 2.72 in
  • Each - Width: 3 in
  • Hex Key: 3/8 in
  • Industry Standard(s): UL 486A-486B
  • Insulation Type: Plastisol
  • Operating Voltage: 600 V
  • Physical Attribute - Number of Screws: 2
  • Physical Attribute - Screw Type: Allen
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: CM
  • Trade Name: UNITAP™
  • Sub Brand: UNITAP
  • IGS 3D Model Asset Reference URL 1: https://hubbellcdn.com/igs/BITO600_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/BITO600_MODEL-PDF.pdf

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

GTiN 00781810225264
Size 2.75 IN Height X 2.38 IN Width X 2.72 IN Length
Type BIT, Offset, 1-Level
Material Aluminum
Stud Size 3/8 in
Conductor Size 4/0, 2/0, 3/0, 2, 1, 4, 1/0 AWG, 250, 350, 500, 600 kcmil
Applications For Indoor use, Copper or Stranded Aluminum
Connection Type Screw
Temperature Rating 90 C
Family Brand Name Burndy
Number of Ports 2
Blade Dimensions 2.72 in L x 2.38 in W x 2.75 in H
Sub Brand Unitap
Product UPC 78181022526
Length 2.72 Inch
Width 3 in
Insulation Type Plastisol
Height 2.75 Inch
Plating Type Unplated
Plated? No
CSA Yes
Country of Origin USA
Overall Length 2.72 in
