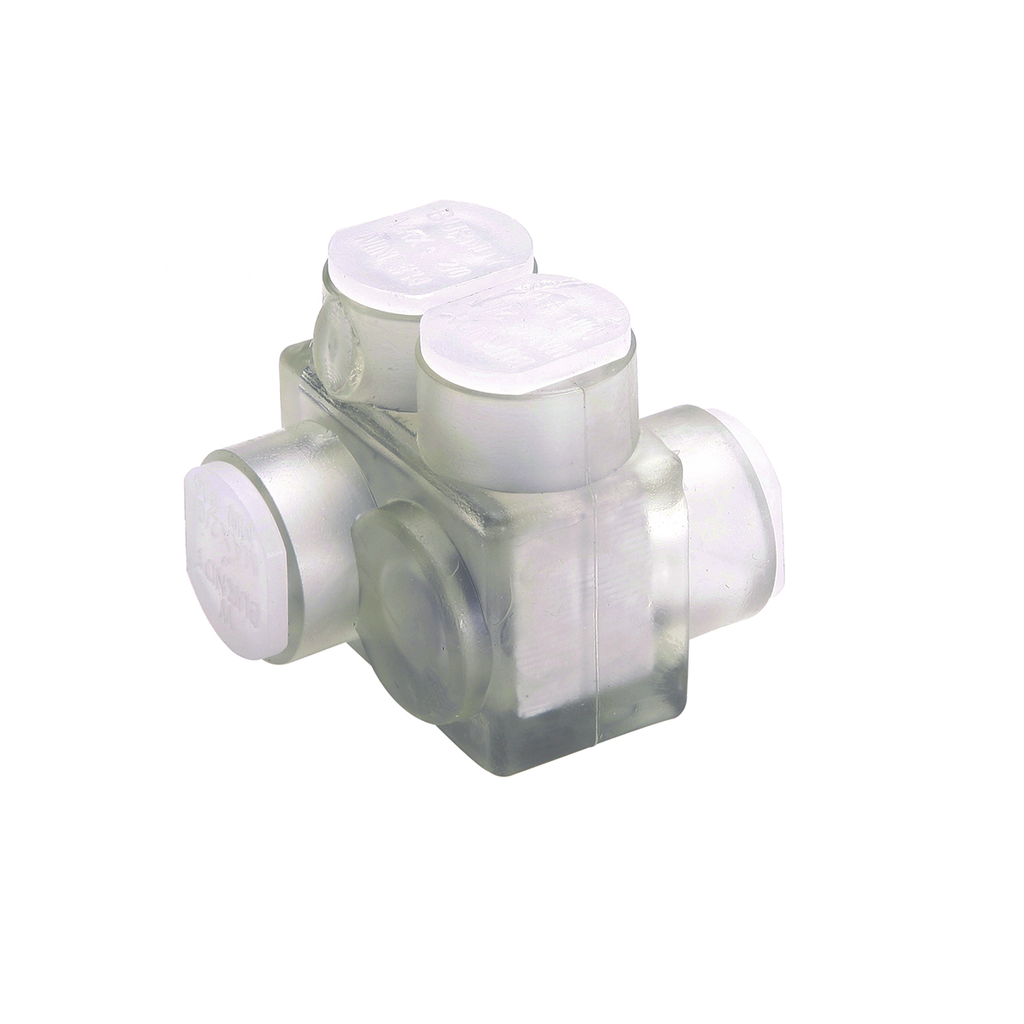

BUR BITO750 750-2, OFFSET, UNITAP
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$160.89/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BITO750
North Coast Part # 217537

Features

  • Clear Plastisol Covered AL6061-T6 Aluminum Body: Saves Time, Lowers Installation Costs, Eliminates Taping, Clear Plastisol: Allows Visual Confirmation That Conductor Is Properly Inserted, Oxide Inhibitor Pre-Installed: Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking: Reduces Number Of Connectors Carried In Inventory, Torque: 375 IN-LB, Wire Entry: Double, Hex Size (key): 3/8 IN, Conductor Size (run - Range): 2 AWG - 750 KCMIL, Wire Strip Length: 1-1/8 IN, Type Of Insulation: Plastisol, Number Of Ports: 2

Specifications

  • Buy American Compliant: Yes
  • Conductor - AL Str Size: 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil
  • Conductor - AL Str Size Range: 2 AWG - 750 kcmil
  • Conductor - Copper Str Size Range: 2 AWG - 750 kcmil
  • Country of Origin: US
  • Dimension - Height inch: 3.00 in
  • Dimension - L Length Overall mm: 73 mm
  • Dimension - Length Overall inch: 2.87 in
  • Dimension - Width inch: 3.38 in
  • Dimension - Width mm: 86 mm
  • Each - Height: 3 in
  • Each - Length: 2.87 in
  • Each - Width: 3.38 in
  • Hex Key: 3/8
  • Industry Standard(s): UL 486A-486B
  • Insulation Type: Plastisol
  • Operating Voltage: 600 V
  • Physical Attribute - Number of Screws: 2
  • Physical Attribute - Screw Type: Allen
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL 486A-486B
  • Standards - RoHS Compliance Status: CM
  • Trade Name: UNITAP™
  • Application: For Indoor Use Only, Copper Or Stranded Aluminum
  • Special Features: Features: Clear Plastisol Covered AL6061-T6 Aluminum Body: Saves Time, Lowers Installation Costs, Eliminates Taping, Clear Plastisol: Allows Visual Confirmation That Conductor Is Properly Inserted, Oxide Inhibitor Pre-Installed: Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking: Reduces Number Of Connectors Carried In Inventory, Torque: 375 IN-LB, Wire Entry: Double, Hex Size (key): 3/8 IN, Conductor Size (run - Range): 2 AWG - 750 KCMIL, Wire Strip Length: 1-1/8 IN, Type Of Insulation: Plastisol, Number Of Ports: 2
  • Standard: UL 486A-486B
  • Sub Brand: UNITAP
  • Temperature Rating: 90°C
  • Type: BIT
  • IGS 3D Model Asset Reference URL 1: https://hubbellcdn.com/igs/BITO750_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/BITO750_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 3: https://hubbellcdn.com/step3dfile/BITO750_MODEL-STEP.zip

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181023314
Item Long Description Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 2 Sided Entry, 2 AWG-750 kcmil, Al/Cu Rated.
GTiN 00781810233146
Size 3 IN Height X 3.38 IN Width X 2.87 IN Length
Type BIT
Material Aluminum
Conductor Size 4/0, 2/0, 3/0, 2, 1, 1/0 AWG, 250, 350, 500, 600, 750 KCMIL
Applications For Indoor Use Only, Copper Or Stranded Aluminum
Temperature Rating 90 C
Family Brand Name Burndy
Sub Brand UNITAP
Length 2.87 in
Width 3.38 in
Insulation Type Plastisol
Height 3.00 in
Plating Type Unplated
Plated? No
CSA No
