Burndy BPD26750 Power Distribution Block
Product image thumbnail 0
Product image thumbnail 1
$294.90/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # BPD26750
North Coast Part # 152464

Specifications

General

  • Connector Type: Power Distribution Block
  • Material: Aluminum Alloy
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • UPC: 781810601556
  • UPC 12 Digit: 7818106015566

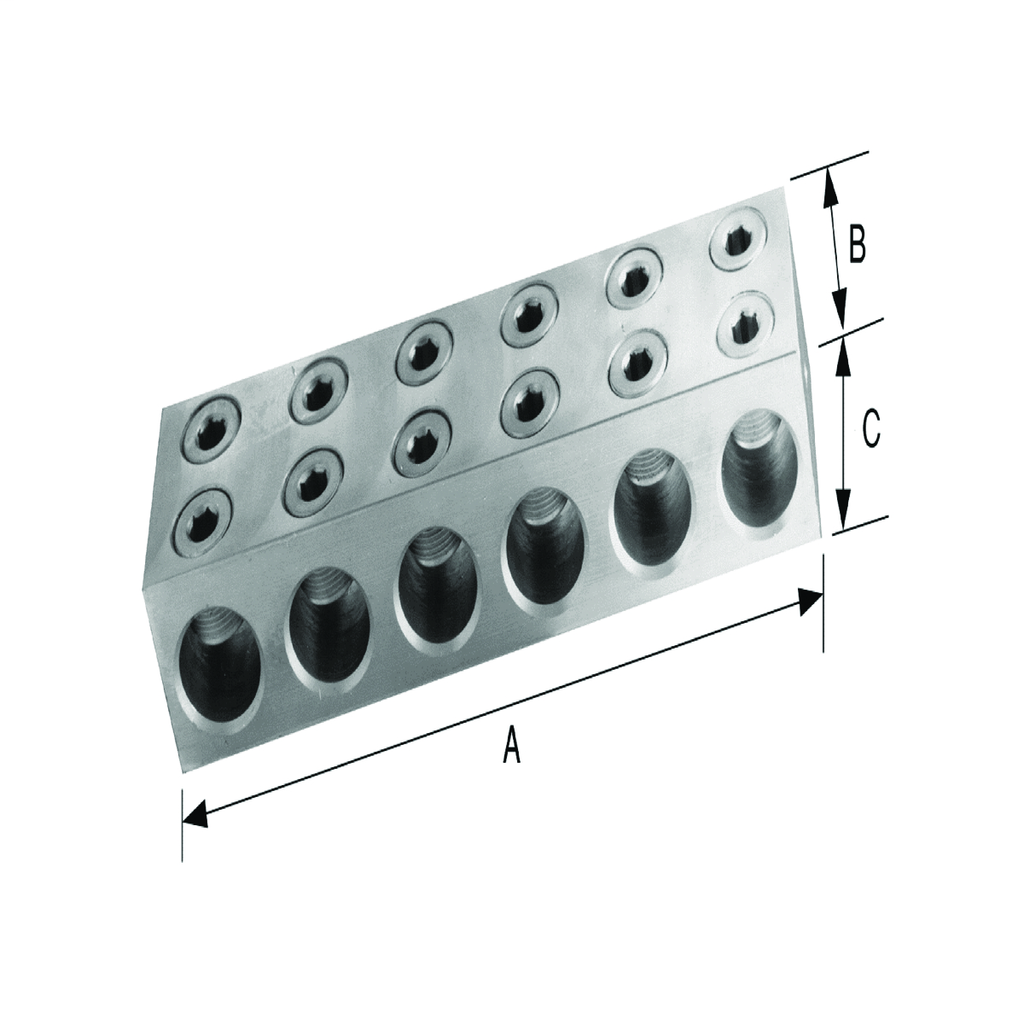

Dimensions

  • Dimension - B Length fraction: 2 in
  • Dimension - B Length inch: 2 in
  • Dimension - Pad Width inch: 2.5 in

Conductor Related

  • Conductor - AL Str Size: 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil;636 kcmil;650 kcmil;700 kcmil;715 kcmil;750 kcmil
  • Conductor - AL Str Size Range: 2 AWG-750 kcmil
  • Conductor - Copper Str Size: 2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil;700 kcmil;750 kcmil
  • Conductor - Copper Str Size Range: 2 AWG-750 kcmil

Certifications and Compliance

  • Certification - CSA Approved: No
  • Certification - ETL: No
  • Certification - UL Recognized: No
  • Certification - cULus: No
  • Standards - RoHS Compliance Status: CM
  • UL Listed: No

Logistics

  • Minimum Pack Quantity: 5
  • Pallet Quantity: 14 EA

Overview

UPC 78181060155
Family Brand Name Hubbell
Material Aluminum Alloy
Conductor Size 1 AWG
Connection Type Power Distribution Block
Plating Type Tin - Electro Plated
Plated? Yes
CSA No
