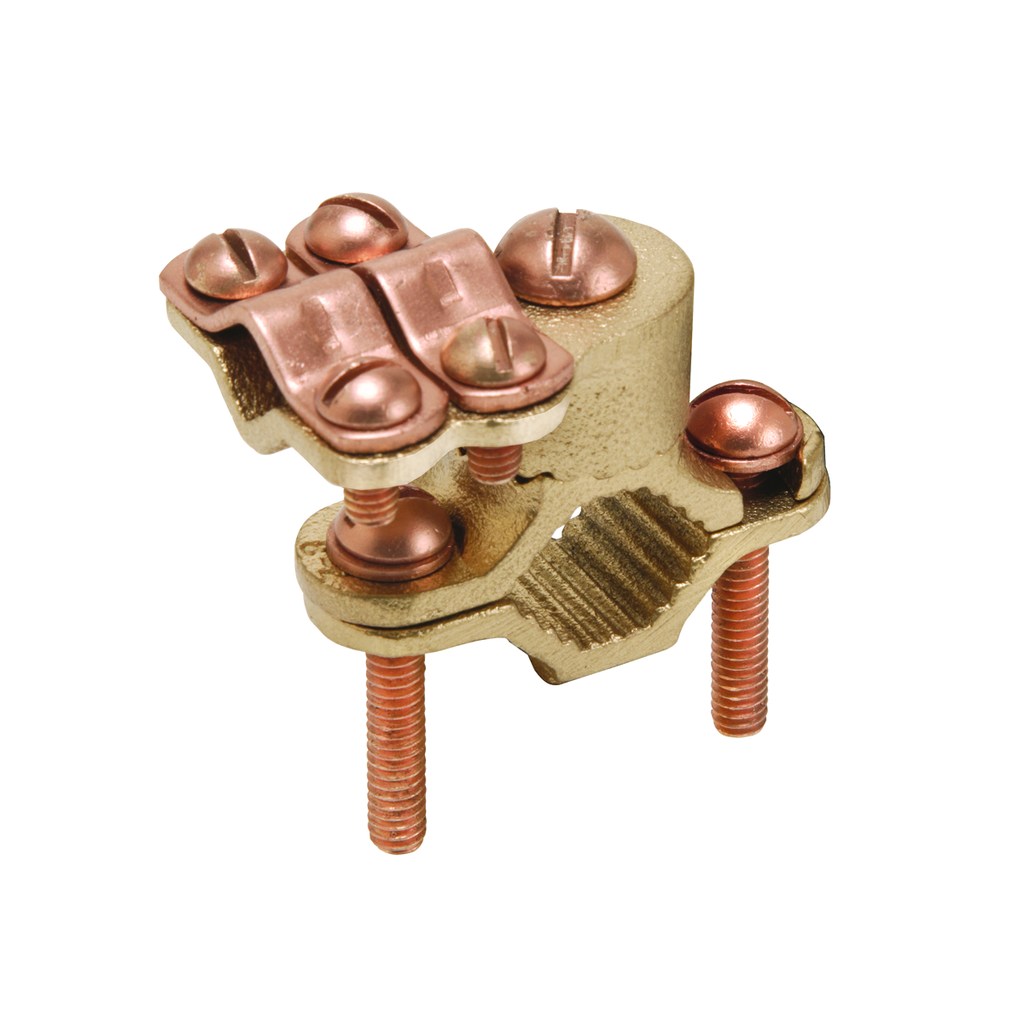

BUR C11HD4/0DB GRD CL 1/2-1 DB 4/0H
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$27.61/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # C11HD4/0DB
North Coast Part # 269426

Features

  • For Connecting Grounding Conductor, EMT Or Rigid Conduit To Water Pipe, Copper Tube, Ground Rod Or Rebar, Hub Swings 360 DEG For Easy Alignment, Simply Reverse Bottom Clamp For Smaller Size Rebar Or Rod, Connectors Are Provided With Silicon Bronze Hardware, Ground Rod Size: 3/8 - 1 IN Outer-Diameter, Rebar Size: #4 - #6, Installation Torque: 50 IN-LB For Screw, Water Pipe Size: 1/2 - 1 IN, Length: 2.65 IN, Width: 1.65 IN, Height: 2.25 IN

Specifications

  • Buy American Compliant: No
  • Conductor - Copper Str Size: 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - Copper Str Size Range: 8 AWG - 4/0 AWG
  • Conductor - Pipe EMT Size: 1/2 in;3/4 in;1 in
  • Conductor - Pipe EMT Size Range: 1/2 -1
  • Conductor - Rebar Size: 4 ;5 ;6
  • Conductor - Rebar Size Range: 4 -6
  • Conductor - Rod Size: 3/8 in;1/2 in;5/8 in;3/4 in;7/8 in;1 in
  • Conductor - Rod Size Range: 3/8 in-1 in
  • Country of Origin: IN
  • Dimension - Height fraction: 2.888888888888889 in
  • Dimension - Height inch: 2.25 in
  • Dimension - L Length Overall mm: 67 mm
  • Dimension - Length Overall inch: 2.65 in
  • Dimension - Width fraction: 1-14/25 in
  • Dimension - Width inch: 1.56 in
  • Dimension - Width mm: 40 mm
  • Each - Height: 2.89 in
  • Each - Length: 2.65 in
  • Each - Width: 1.56 in
  • Industry Standard(s): UL467
  • Installation Torque Recommended in-lb: 50 LBS/in
  • Plated: N
  • Plating Type: Zinc
  • Product Type: Mechanical
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • Application: For Connecting Grounding Conductor, EMT Or Rigid Conduit To Water Pipe, Copper Tube, Ground Rod Or Rebar, Direct Burial Applications
  • Special Features: Features: For Connecting Grounding Conductor, EMT Or Rigid Conduit To Water Pipe, Copper Tube, Ground Rod Or Rebar, Hub Swings 360 DEG For Easy Alignment, Simply Reverse Bottom Clamp For Smaller Size Rebar Or Rod, Connectors Are Provided With Silicon Bronze Hardware, Ground Rod Size: 3/8 - 1 IN Outer-Diameter, Rebar Size: #4 - #6, Installation Torque: 50 IN-LB For Screw, Water Pipe Size: 1/2 - 1 IN, Length: 2.65 IN, Width: 1.65 IN, Height: 2.25 IN
  • Standard: UL467
  • Sub Brand: CLAMP
  • Type: Ground Clamp
  • IGS 3D Model Asset Reference URL 1: https://hubbellcdn.com/igs/C11HD40DB_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/C11HD40DB_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 3: https://hubbellcdn.com/step3dfile/C11HD40DB_MODEL-STEP.zip

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: Yes
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181034775
Item Long Description Cast Bronze Ground Clamps, Water Pipe/Rebar/Ground Rod -Ground, Water Pipe- 1/2"-1" (13 -25) (Run), Rebar- #4 -#6 (Run) Ground Rod -3/8"-1" (Run), Water Pipe- 1/2 " - 1 "(13 -25) (Run), Rebar #4-#6 (Run), Ground Rod -3/8" - 1" (Run ), Ground-#8 - 4/0 (Tap).
GTiN 00781810347751
Type Ground Clamp
Material Bronze Alloy
Applications For Connecting Grounding Conductor, EMT Or Rigid Conduit To Water Pipe, Copper Tube, Ground Rod Or Rebar, Direct Burial Applications
Family Brand Name Burndy
Sub Brand CLAMP
Length 2.65 in
Width 1.56 in
Conductor Size 1 AWG
Height 2.25 in
Plating Type Zinc
Plated? No
CSA Yes
