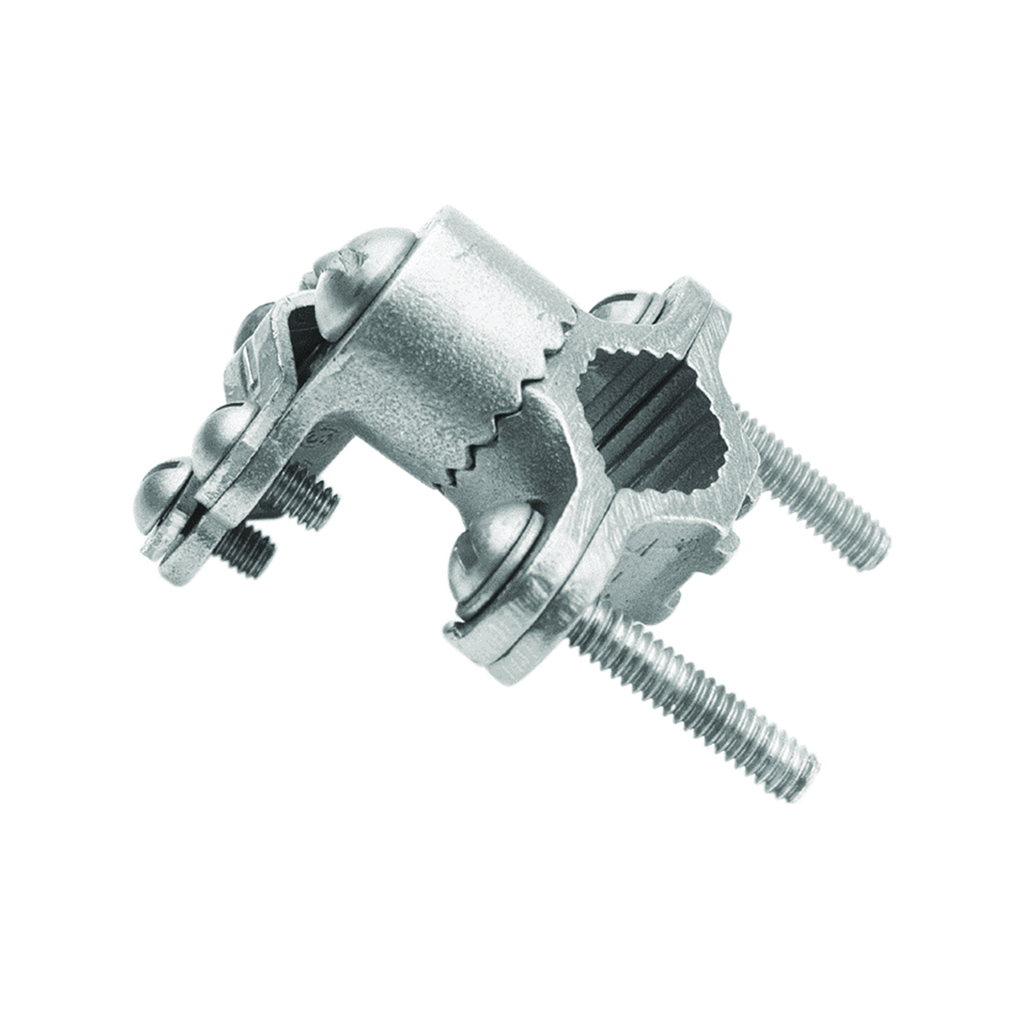

BUR C22HD4/0DB CLAMP
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$53.25/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # C22HD4/0DB
North Coast Part # 606738

Features

  • For Connecting Grounding Conductor, EMT Or Rigid Conduit To Water Pipe, Copper Tube, Ground Rod Or Rebar, Hub Swings 360° For Easy Alignment, Simply Reverse Bottom Clamp For Smaller Size Rebar Or Rod, Connectors Are Provided With Silicon Bronze Hardware, Length: 3.6 IN, Installation Torque: 50 IN-LB, Water Pipe Size: 1-1/4 - 2 IN, Width: 1.56 IN, Height: 2.7 IN

Specifications

  • Buy American Compliant: No
  • Conductor - Copper Str Size: 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG
  • Conductor - Copper Str Size Range: 8 AWG - 4/0 AWG
  • Conductor - Pipe EMT Size: 1 1/4 in;1 1/2 in;2 in
  • Conductor - Pipe EMT Size Range: 1 1/4 -2
  • Country of Origin: IN
  • Dimension - Height fraction: 2.888888888888889 in
  • Dimension - Height inch: 2.89 in
  • Dimension - L Length Overall mm: 67 mm
  • Dimension - Length Overall inch: 2.65 in
  • Dimension - Width inch: 1.41 in
  • Dimension - Width mm: 36 mm
  • Each - Height: 2.89 in
  • Each - Length: 2.65 in
  • Each - Width: 1.41 in
  • Industry Standard(s): UL467
  • Installation Torque Recommended in-lb: 50 LBS/in
  • Plated: N
  • Plating Type: Zinc
  • Product Type: Mechanical
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • Application: For Connecting Grounding Conductor, EMT Or Rigid Conduit To Water Pipe, Copper Tube, Ground Rod Or Rebar And Direct Burial
  • Special Features: Features: For Connecting Grounding Conductor, EMT Or Rigid Conduit To Water Pipe, Copper Tube, Ground Rod Or Rebar, Hub Swings 360° For Easy Alignment, Simply Reverse Bottom Clamp For Smaller Size Rebar Or Rod, Connectors Are Provided With Silicon Bronze Hardware, Length: 3.6 IN, Installation Torque: 50 IN-LB, Water Pipe Size: 1-1/4 - 2 IN, Width: 1.56 IN, Height: 2.7 IN
  • Standard: UL467
  • Sub Brand: CLAMP
  • Type: WaterPipe Gounding Connectors

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Listed Direct Burial: Yes
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181035319
Item Long Description Cast Bronze ground Clamps, 3.60 in L, 1-1/4"- 2" Water Pipe (Run), #8 - 4/0 Ground (Tap).
GTiN 00781810353196
Type WaterPipe Gounding Connectors
Material Bronze Alloy
Applications For Connecting Grounding Conductor, EMT Or Rigid Conduit To Water Pipe, Copper Tube, Ground Rod Or Rebar And Direct Burial
Family Brand Name Burndy
Sub Brand CLAMP
Length 2.65 in
Width 1.41 in
Conductor Size 1 AWG
Height 2.89 in
Plating Type Zinc
Plated? No
CSA No
