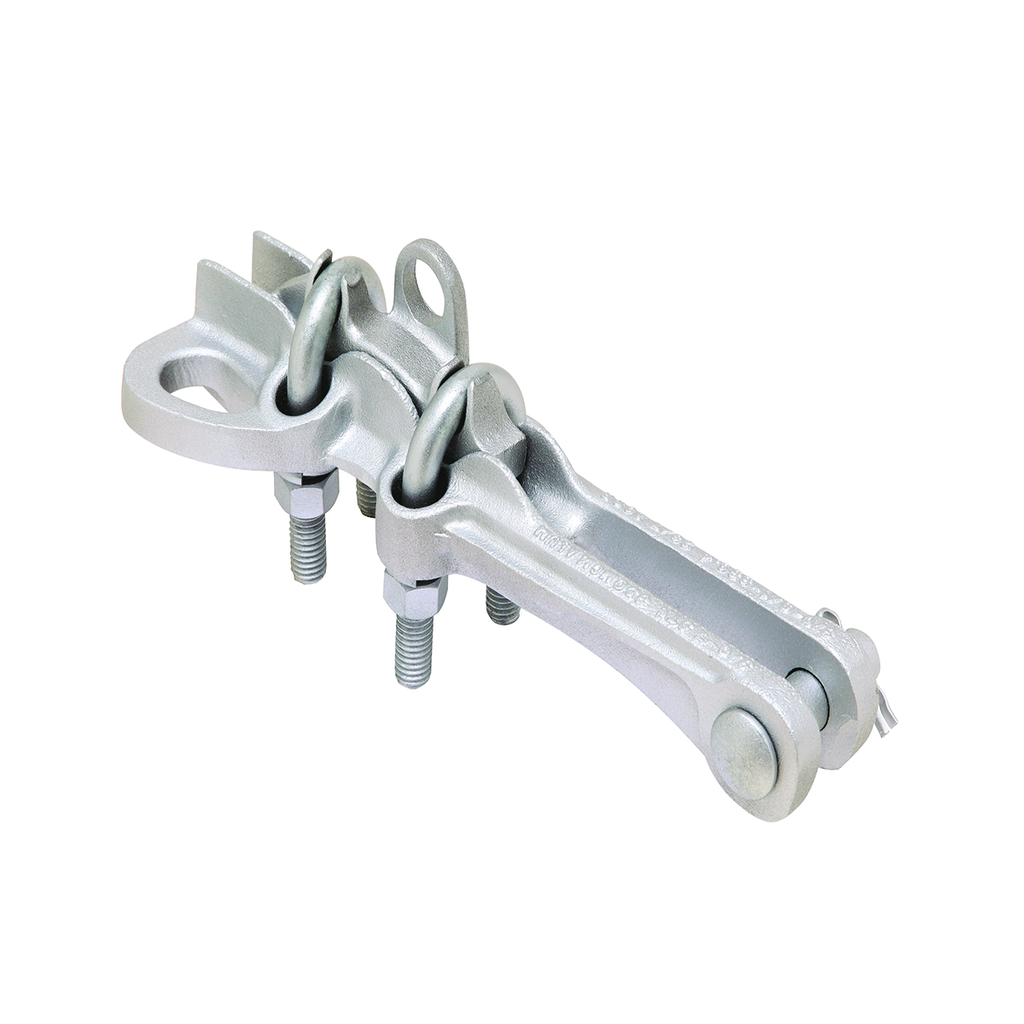

BUR CUW32RE 3/0-336 ACSR/AL DE CLMP
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$188.79/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # CUW32RE
North Coast Part # 423651

Features

  • High Strength Aluminum Clamp For Deadending Primary Distribution Lines, Straight-Line Design, With Hot Stick Lifting-Eye, Pulling-Eye, And Captured, Angled U-Bolts, Facilitates Installation And Maintenance, Especially On Hot-Line Work, Snub-Pocket V-Shaped, Range-Taking Conductor Groove And Galvanized Steel U-Bolts Provide High Holding Strength, Length: 10 IN, Width: 3-5/8 IN, Height: 4 IN

Specifications

  • Buy American Compliant: Yes
  • Conductor - AAAC 5005 Size: 195.7 (7) kcmil;246.9 (7) kcmil;312.8 (19) kcmil;394.5 (19) kcmil
  • Conductor - AAAC 5005 Size Range: 195.7 (7) kcmil-394.5 (19) kcmil
  • Conductor - AAAC 6201 Size: 195.7 (7) kcmil;246.9 (7) kcmil;312.8 (19) kcmil;394.5 (19) kcmil
  • Conductor - AAAC 6201 Size Range: 195.7 (7) kcmil-394.5 (19) kcmil
  • Conductor - ACSR Str Size: 3/0 (6/1) Pigeon AWG;4/0 (6/1) Penquin AWG;80 (8/1) Grouse kcmil;101.8 (12/7) Petrel kcmil;110.8 (12/7) Minorca kcmil;134.6 (12/7) Leghorn kcmil;159 (12/7) Guinea kcmil;176.9 (12/7) Dotterel kcmil;190.8 (12/7) Dorking kcmil;211.3 (12/7) Cochin kcmil;203.2 (16/9) Brahma kcmil;266.8 (18/1) Waxwing kcmil;266.8 (26/7) Owl kcmil;266.8 (26/7) Partridge kcmil;300.0 (26/7) Ostrich kcmil;336.4 (18/1) Merlin kcmil;336.4 (26/7) Linnet kcmil
  • Conductor - ACSR Str Size Range: 3/0 (6/1) Pigeon AWG-336.4 (26/7) Linnet kcmil
  • Conductor - AL Str Size: 3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil
  • Conductor - AL Str Size Range: 3/0 AWG-350 kcmil
  • Country of Origin: US
  • Dimension - B Length fraction: 4-4/21 in
  • Dimension - B Length inch: 4.19 in
  • Dimension - F Width Center to Center inch: 0.72 in
  • Dimension - Height fraction: 4-3/50 in
  • Dimension - Height inch: 4.06 in
  • Dimension - L Length Overall mm: 267 mm
  • Dimension - Length Overall inch: 10.5 in
  • Dimension - Width fraction: 3-29/50 in
  • Dimension - Width inch: 3.58 in
  • Dimension - Width mm: 91 mm
  • Each - Height: 4.06 in
  • Each - Length: 10.50 in
  • Each - Width: 3.58 in
  • Plated: N
  • Plating Type: Unplated
  • Product Type: Mechanical
  • Show Add To ProjectList: Yes
  • Standards - RoHS Compliance Status: CM
  • Application: For Aluminum, ACSR, 6201 And 5005, Deadending Primary Distribution Lines
  • Special Features: Features: High Strength Aluminum Clamp For Deadending Primary Distribution Lines, Straight-Line Design, With Hot Stick Lifting-Eye, Pulling-Eye, And Captured, Angled U-Bolts, Facilitates Installation And Maintenance, Especially On Hot-Line Work, Snub-Pocket V-Shaped, Range-Taking Conductor Groove And Galvanized Steel U-Bolts Provide High Holding Strength, Length: 10 IN, Width: 3-5/8 IN, Height: 4 IN
  • Sub Brand: DEADEND CLAMP
  • Type: CUW-R-E

Certifications

  • CSA Approved: No
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

UPC 78181009212
Item Long Description Deadend Clamp, High Strength Al Alloy, 3/0 AWG - 350 kcmil Al, 3/0 AWG - 336.4 kcmil ACSR, 10.00" L.
GTiN 00781810092125
Family Brand Name Hubbell
Length 10.5 in
Width 3.58 in
Material Aluminum Alloy
Height 4.06 in
Connection Type Deadend
Plating Type Unplated
Plated? No
CSA No
